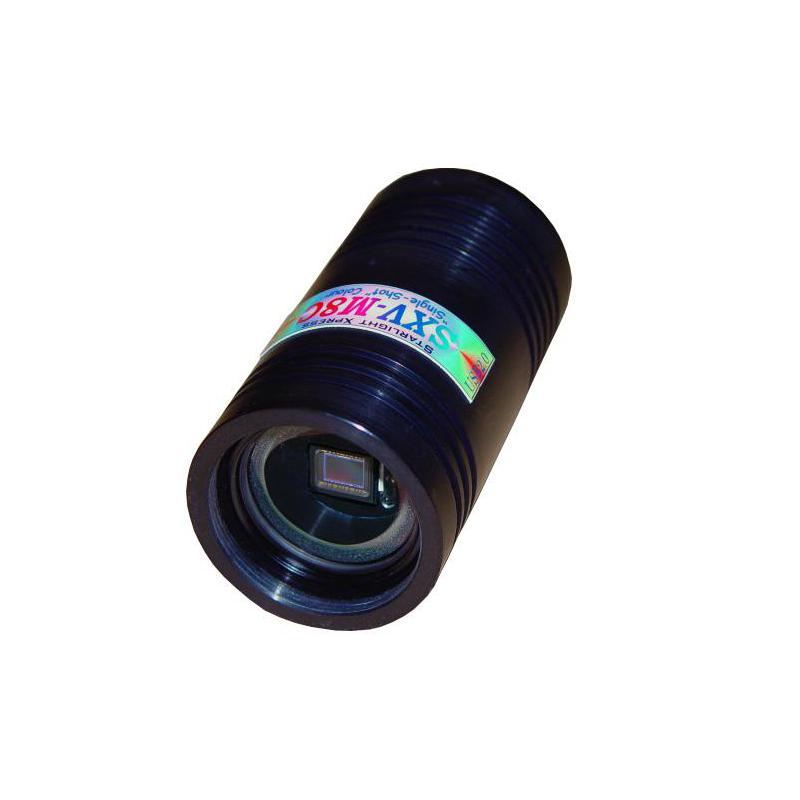

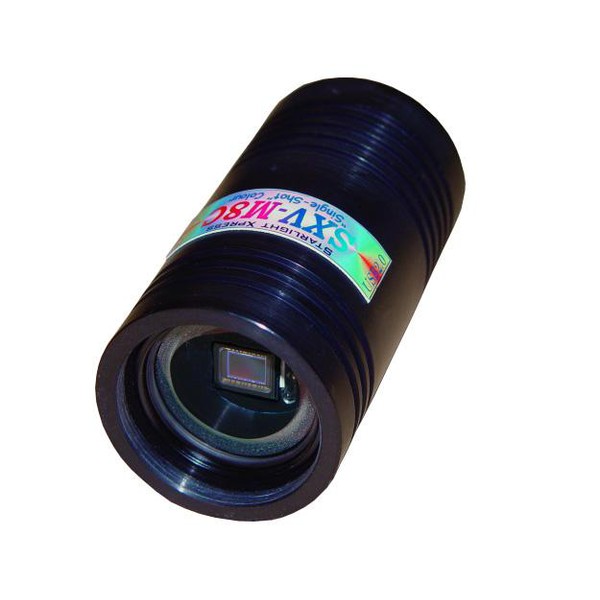

Starlight Xpress Colour Camera System M8C:
Major features:
- Medium sized very high resolution 'SuperHAD' CCD chip, with 3,980,000 3.125uM pixels in a 7.225 x 5.375mm array.
- Extremely low dark signal - No dark frames necessary for many deep sky objects.
- Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area.
- Built-in very high speed USB 2.0 interface (USB 1.1 compatible) for 2 second downloads.
- Exceptionally high QE over an extremely wide spectral range from near UV to deep IR.
- Built-in autoguider interface and output - compatible with the optional dedicated external guide camera.
- Built-in dual serial ports for accessory control - drive filter wheels, GOTO 'scopes etc.
- Single USB cable control for all features - get rid of that dangerous cable tangle!
- Only ONE computer needed to control all of the devices and functions.
- Very low power consumption. Less than 1 amp at 12v DC.
- Compact and lightweight - only 50mm in diameter x 100mm long - less than 200 grams load on the 'scope.
Specifications:
- CCD type: Sony ICX406AQ SuperHAD CCD with ultra low dark current, RGB filter matrix and vertical anti-blooming.
- CCD Full resolution Pixel data: Pixel size: 3.125uM x 3.125uM, Image format: 2312 x 1720 pixels
- CCD Image area: 7.225mm (Horizontal) x 5.375mm (Vertical).
- CCD quality: Grade 1 or better - No bad columns, no dead pixels, no more than 50 'hot' pixels (saturated in <10 seconds).

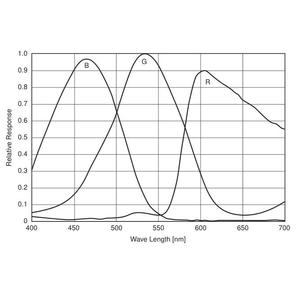

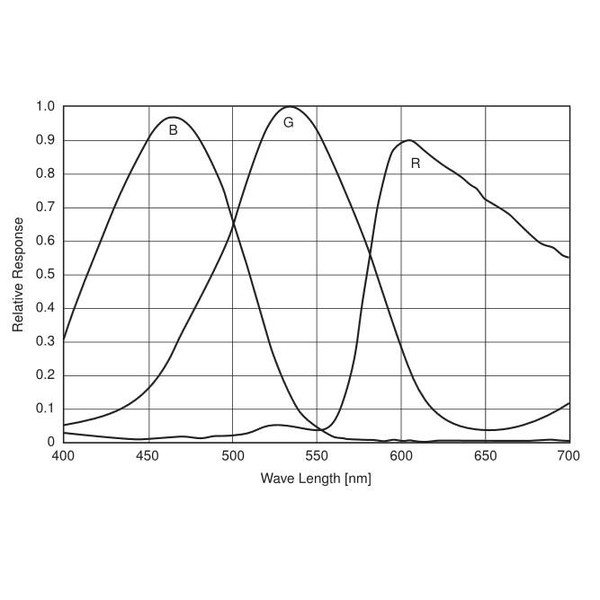

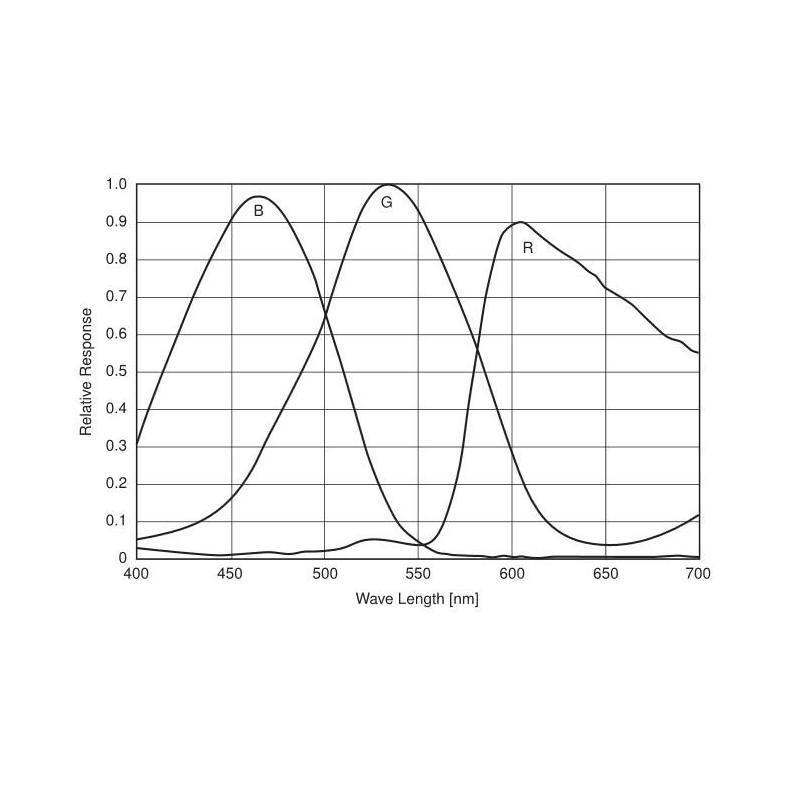

- Spectral Response: QE max at 540nM (~60%), 50% roll-off at 400nM and 650nM.Â
- Readout Noise: Less than 10 electrons RMS - typically only 7 electrons.Â
- Full-well capacity: Greater than 10,000 e- (unbinned)
- Anti-blooming: Overload margin greater than 800x.
- Dark current: Dark frame saturation time greater than 100 hours. Less than 0.01 electrons/second @ + 10C ambient.
- Data format: 16 bits.
- System gain: 0.2 electrons per ADU
- Computer Interface: Built-in USB 2.0 compatible interface. Also works with USB 1.1.
- Image download time: Typically 2 seconds full resolution using USB 2.0.
- Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 750mA max.
- Cooling system: Regulated constant current cooling supply with single stage thermoelectric cooler to give a CCD temperature of approximately -30C below ambient.
- Size: 50 x 100mm black anodised aluminium barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at rear.
- Weight: approx. 200g
