Mikroskopie > Mikroskopie-Zubehör > Kameras > Kameras > Optika > WiFi > Optika Kamera, C-WFR, color, CMOS, 1/2.5, 5MP, WiFi, recharchable
Artikel-Nr.: 74096

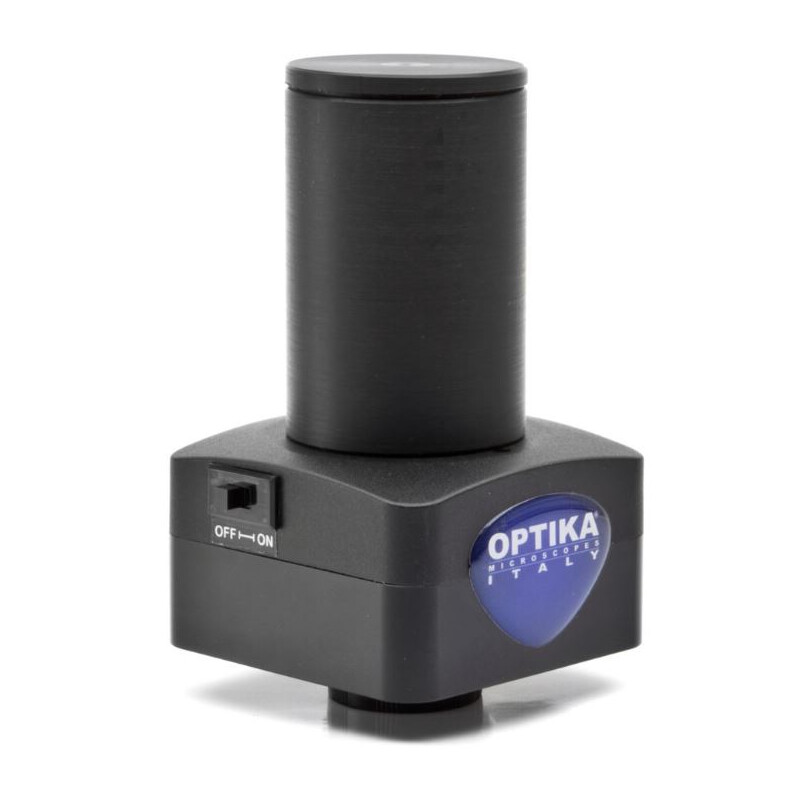

Kamera, C-WFR, color, CMOS, 1/2.5, 5MP, WiFi, recharchable

UVP: $ 650,- Unser Preis:
$ 580,- inkl. MwSt zzgl. Versandkosten
inkl. Bestpreis-Garantie
langfristig
versandfertig in 6-10 Wochen + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

C-WFR

WFR camera, 5 MP CMOS, Wi-Fi, multi-plug

C-WF

C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug

  • Ideal for interactive, flexible and dynamic learning processes
  • Simple, intuitive operation with powerful software
  • Universal connection to any microscope brand
  • Direct eyepiece & trino port connection
  • 1 MP images
  • Wi-Fi interface
  • Direct Wi-Fi connection (no router is required)
  • Connectable to PC, smartphones, tablets and any other device
  • Supported by any device (PC, tablet or smartphone)
  • Image and video capturing function when used in Wi-Fi mode
  • Reliable colour fidelity
  • C-mount projection lens and rings included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux”

WiFi camera, 5MP CMOS, rechargeable battery, multi-plug

  • WiFi output     Yes
  • C-Mount     Yes
  • Dimensions (mm)   67 x 67 x 46
  • Weight (kg)     0.44
  • Camera resolution (n° of pixels: W x H) 2592x1944
  • Color / Monochrome   Color
  • Sensor Size     1/2.5"
  • Sensor Technology   CMOS
  • Sensor Type     SONY EXMOR
  • Image Format     16/9
  • Pixel Size (mm)   2.2x2.2
  • Acquisition technology Rolling shutter
  • Sensitivity     1V/lux-sec
  • Signal/Noise Ratio (DB) 43
  • Dynamic range (DB)   61
  • ADC conversion   8 Bit - 12Bit
  • Color Depth     8 Bit
  • Exposure time     Auto
  • Binning     2x2
  • IR filter       Yes
  • IR filter range (nm)   380-650 (IR CUT)
  • WiFi resolution (MP)   1
  • WiFi Frame rate full resolution (fps) 10@1280x720
  • WiFi Speed     802.11n 150Mbps
  • WiFi Signal    From the camera
  • WiFi Signal ready   About 10 seconds after turning on
  • Max Users     3
  • Rechargeable batteries Yes
  • Battery type     Ni-MH, 4x (AA-size)
  • Working time with batteries (hours) 6
  • Charging time of batteries (hours) 4
  • Type      External
  • Connector     USB
  • Power plug type Multiplug (EU, UK, US)
  • Input voltage     100/240 Vac, 50/60Hz
  • Output voltage     5 Vdc 500mA
  • WiFi
  • Camera     Power Supply
  • General specifications
  • Sensor OPTIKA MICROSCOPES ITALY
  • www.optikamicroscopes.com - [email protected]
  • Optical adapter (for 23mm eyepiece tube) 0.5x
  • Diameter of adapter ring (mm) 30
  • Diameter of adapter ring (mm) 30.5
  • Calibration slide Yes
  • Working Temperature -10°C up to +50°C
  • Storage Temperature -20°C up to +60°C
  • Relative Humidity 30% to 80%
  • Storage Humidity 10% to 60%
  • OS Windows 7
  • OS Windows 8
  • OS Windows 10 (32Bit)
  • OS Windows 10 (64Bit)
  • OS Osx (MAC Osx) starting from 10.7.5 (only LITEVIEW)
  • OS Linux (only LITEVIEW)
  • PC SW PROVIEW
  • PC SW LITEVIEW
  • PC CPU: Intel Core2 - 2.8GHz or higher
  • PC RAM: 2GB or more

Technische Daten

Leistung


Chipgröße (mm)
1/2.5"
Megapixel
5
Lichtempfindlichkeit (Lux)
1V/Luxm
Bildformat
16/9
Auflösung Video (Pixel)
1280x720 (WiFi)
Interner Speicher (Megabyte)
-
LCD-Bildschirm (Zoll)
-
TV-Ausgang
-
Stromversorgung
Multiplug
Videofunktion
-

Kamera


Megapixel
5
Peltier-Kühlung
nein
Farbkamera
ja
Bildübertragung
WiFi
Chipgröße (″)
1/2.5
Sensor
CMOS
Pixelgröße (µm)
2,2
Auflösung Foto (Pixel)
2592x1944
Bildfrequenz (fps)
10
Kameraverschluss
Rolling Shutter
Benötigter Adapter
0.5x
Software
Liteview, Proview
Unterstützte Betriebssysteme
Windows

Allgemein


Länge (mm)
67
Breite (mm)
67
Höhe (mm)
115
Gewicht (g)
70
Serie
WiFi

Sonstiges


Lieferanten Produktnummer
C-WFR

Produktsicherheit

Hersteller: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
Optika Kamera, C-WFR, color, CMOS, 1/2.5, 5MP, WiFi, recharchable
