Microscopie > Accessoires de microscopie > Appareils de prise de vue > Appareils de prise de vue > Optika > WiFi > Optika Caméra , C-WFR, couleur, CMOS, 1/2,5, 5 MP, WiFi, rechargeable
N° d'article : 74096

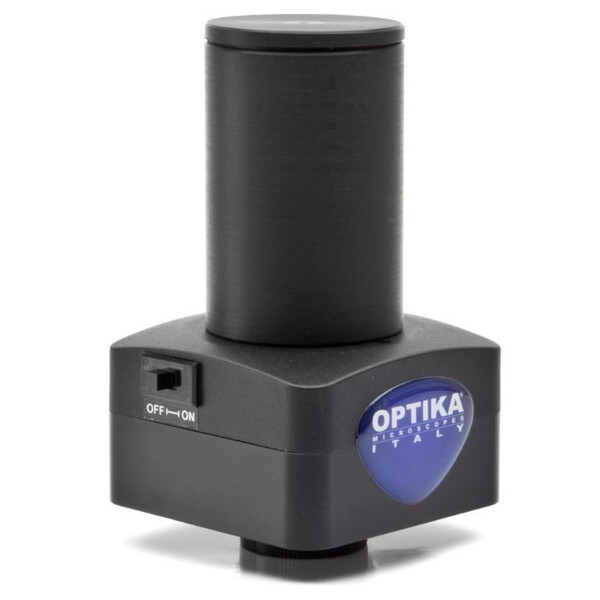

Caméra , C-WFR, couleur, CMOS, 1/2,5, 5 MP, WiFi, rechargeable

Prix public : 650,00 $ Notre prix:
580,00 $ TVA incluse plus frais d'expédition
Trop cher ?
à long terme
expédié sous 6-10 semaines + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

C-WFR

WFR camera, 5 MP CMOS, Wi-Fi, multi-plug

C-WF

C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug

  • Ideal for interactive, flexible and dynamic learning processes
  • Simple, intuitive operation with powerful software
  • Universal connection to any microscope brand
  • Direct eyepiece & trino port connection
  • 1 MP images
  • Wi-Fi interface
  • Direct Wi-Fi connection (no router is required)
  • Connectable to PC, smartphones, tablets and any other device
  • Supported by any device (PC, tablet or smartphone)
  • Image and video capturing function when used in Wi-Fi mode
  • Reliable colour fidelity
  • C-mount projection lens and rings included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux”

WiFi camera, 5MP CMOS, rechargeable battery, multi-plug

  • WiFi output     Yes
  • C-Mount     Yes
  • Dimensions (mm)   67 x 67 x 46
  • Weight (kg)     0.44
  • Camera resolution (n° of pixels: W x H) 2592x1944
  • Color / Monochrome   Color
  • Sensor Size     1/2.5"
  • Sensor Technology   CMOS
  • Sensor Type     SONY EXMOR
  • Image Format     16/9
  • Pixel Size (mm)   2.2x2.2
  • Acquisition technology Rolling shutter
  • Sensitivity     1V/lux-sec
  • Signal/Noise Ratio (DB) 43
  • Dynamic range (DB)   61
  • ADC conversion   8 Bit - 12Bit
  • Color Depth     8 Bit
  • Exposure time     Auto
  • Binning     2x2
  • IR filter       Yes
  • IR filter range (nm)   380-650 (IR CUT)
  • WiFi resolution (MP)   1
  • WiFi Frame rate full resolution (fps) 10@1280x720
  • WiFi Speed     802.11n 150Mbps
  • WiFi Signal    From the camera
  • WiFi Signal ready   About 10 seconds after turning on
  • Max Users     3
  • Rechargeable batteries Yes
  • Battery type     Ni-MH, 4x (AA-size)
  • Working time with batteries (hours) 6
  • Charging time of batteries (hours) 4
  • Type      External
  • Connector     USB
  • Power plug type Multiplug (EU, UK, US)
  • Input voltage     100/240 Vac, 50/60Hz
  • Output voltage     5 Vdc 500mA
  • WiFi
  • Camera     Power Supply
  • General specifications
  • Sensor OPTIKA MICROSCOPES ITALY
  • www.optikamicroscopes.com - [email protected]
  • Optical adapter (for 23mm eyepiece tube) 0.5x
  • Diameter of adapter ring (mm) 30
  • Diameter of adapter ring (mm) 30.5
  • Calibration slide Yes
  • Working Temperature -10°C up to +50°C
  • Storage Temperature -20°C up to +60°C
  • Relative Humidity 30% to 80%
  • Storage Humidity 10% to 60%
  • OS Windows 7
  • OS Windows 8
  • OS Windows 10 (32Bit)
  • OS Windows 10 (64Bit)
  • OS Osx (MAC Osx) starting from 10.7.5 (only LITEVIEW)
  • OS Linux (only LITEVIEW)
  • PC SW PROVIEW
  • PC SW LITEVIEW
  • PC CPU: Intel Core2 - 2.8GHz or higher
  • PC RAM: 2GB or more

Spécifications

Capacité


Taille de puce (mm)
1/2.5"
Mégapixels
5
Sensibilité à la lumière (Lux)
1V/Luxm
Format d'image
16/9
Résolution vidéo (Pixels)
1280x720 (WiFi)
Mémoire interne (Megabyte)
-
Ecran LCD
-
Sortie TV
-
Alimentation électrique
Multiplug
Fonction vidéo
-

Caméra


Mégapixels
5
refroidissement
non
caméra couleur
oui
Transmission d'image
WiFi
Taille de puce (″)
1/2.5
senseur
CMOS
Taille des pixels
2,2
Résolution photo (Pixels)
2592x1944
Fréquence d'images
10
obturateur
Rolling Shutter
Adaptateur requis
0.5x
Logiciel
Liteview, Proview
Systèmes d'exploitation supportés
Windows

Données générales


Longueur (mm)
67
Largeur (mm)
67
Hauteur (mm)
115
Poids (g)
70
Série
WiFi

Divers


Référence fournisseur
C-WFR

Téléchargements

Sécurité des produits

Fabricant: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
