Astrofotografie > Kameras > Astro-Kameras > Moravian > G2 > Moravian Kamera G2-8300FW Mono mit Filterrad
Artikel-Nr.: 50309

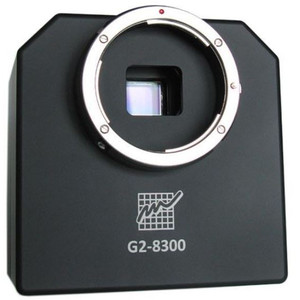

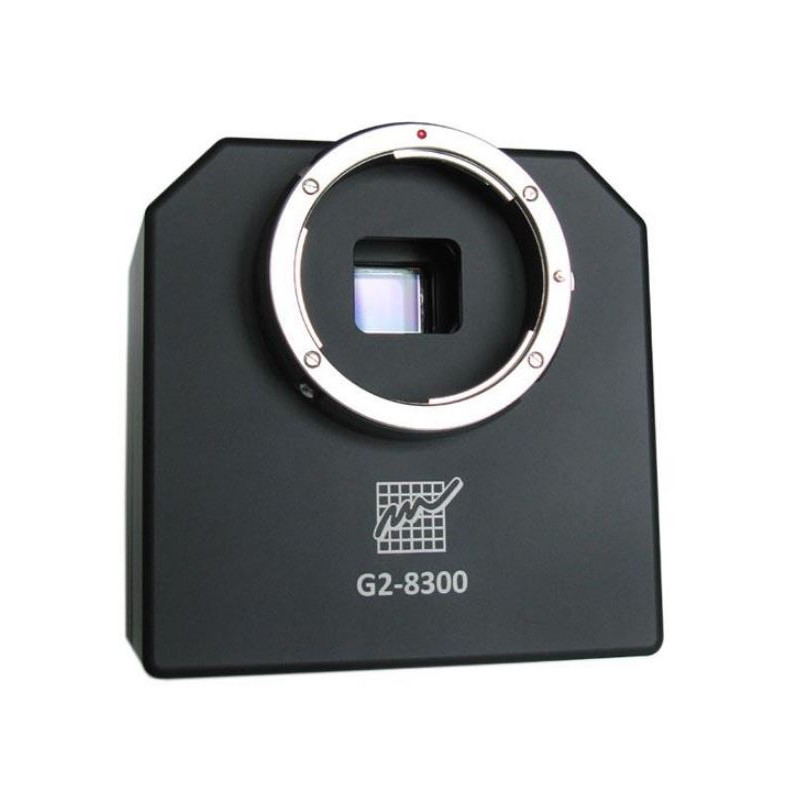

Kamera G2-8300FW Mono mit Filterrad

langfristig
Artikel nicht mehr verfügbar + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

G2-series of small format CCD-cameras uses high sensitive, low noise OnSemi Full-Frame and Interline-Transfer CCD detectors.

While high-speed USB 2.0 interface allows plug-and-play operation and ensures download time within a few seconds, optional Ethernet interface provides camera connection to practically unlimited distance. Advanced analog electronics ensures uniform frames without artifacts and very low read noise. Efficient, regulated two-stage Peltier cooling keeps detectors frozen to minimize dark current. Compact and robust camera head integrates all electronics, mechanical shutter and optional internal filter wheel. Various threaded and bayonet adapters enable attaching of the camera to almost any optical system and numerous accessories like autoguiding cameras, off-axis guider adapters, external filter wheel etc. allow tailoring of the imaging system to almost every application.

All members of the G2 series share the same design, making them powerful research and imaging tools:

  • Lowest possible read noise, limited by CCD detector itself
  • High dynamic range, 16-bits digitization
  • Compact camera head, small and lightweight enough to be attached even to small telescopes
  • Integrated mechanical shutter not to bother with covering the telescope when taking dark frames
  • Optional integrated filter wheel
  • Plug and play installation
  • Rich software support

No matter if your target is reliable scientific data or beautiful images of deep-sky objects, G2-CCD-cameras are able to provide both.

Technische Daten

Leistung


Sensortyp
CCD-Chip (Kodak KAF-8300)
Auflösung Foto (Pixel)
3358 x 2536
Megapixel
8,5
Auflagemaß (mm)
16,5
Aktive Kühlung
ja
Pixelgröße (µm)
4,5
Anschluss (teleskopseitig)
M48
Farbkamera
nein
Chipgröße (mm)
18 x 13,5
Full Well Capacity (Elektronen)
25000
Antiblooming
ja
Ausleserauschen (RMS)
9
Mikrolinsen
ja
Dunkelstrom (Elektronen pro Sekunde)
0,2
Max. Differenz Kühlung unter Umgebungstemperatur (°C)
45
Schnittstellen
USB 2.0
Quanteneffizienz
54% @500nm
Chip-Diagonale (mm)
22,5

Ausstattung


Transportkoffer
ja
Netzteil
ja
Filterrad
ja

Allgemein


Serie
G2
Gewicht (g)
1050

Anwendungsgebiete


AllSky, Meteore
nein
Autoguider
nein
Mond & Planeten
nein
Nebel & Galaxien
ja

Empfohlenes Zubehör

Teleskop-Zubehör (1)
Netzteil

Moravian Netzteil 12V 5A

$ 59,-*
Filter (2)
Sperrfilter

Omegon Sperrfilter UV/IR Cutoff Filter 1.25''

$ 79,-*
Astrofotografie > Kamera-Adapter (10)

Moravian Adapter auf 2" für G2- und G3-Kameras

$ 64,-*
Astrofotografie > Sonstiges (2)
Off-Axis-Guider

Moravian Off-Axis-Guider Off Axis Guider CCD-OAG-M48

$ 291,-*
Spektroskopie & Fotometrie (1)
Spektroskop

Paton Hawksley Spektroskop Star Analyser 100

$ 203,-*

*Alle Preise inklusive der gesetzlichen Mehrwertsteuer, zzgl. Versandkosten.

Moravian Kamera G2-8300FW Mono mit Filterrad

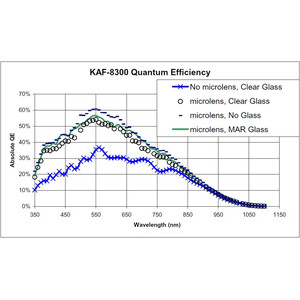

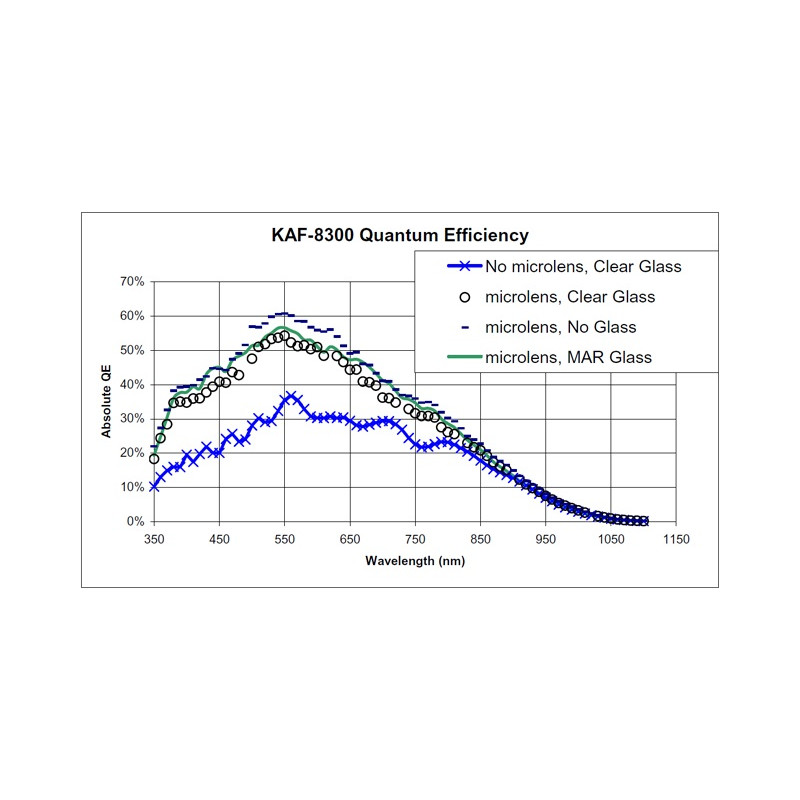

Quanteneffizienz
Moravian Kamera G2-8300FW Mono mit Filterrad

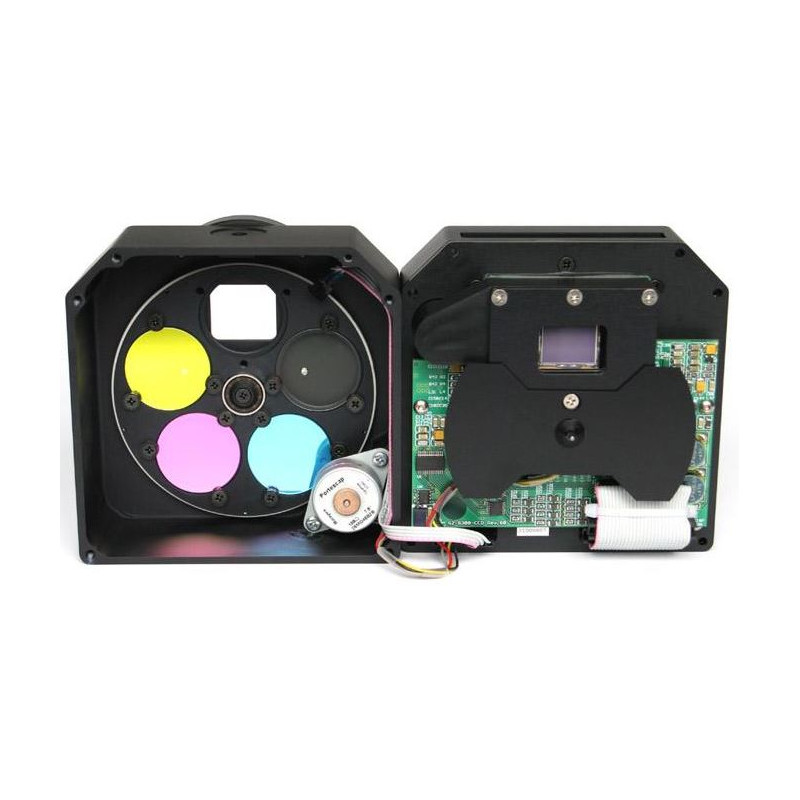

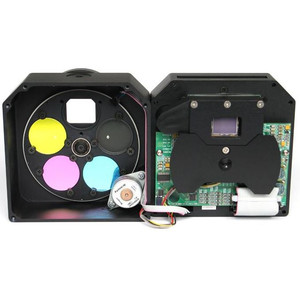

Internes Filterrad
