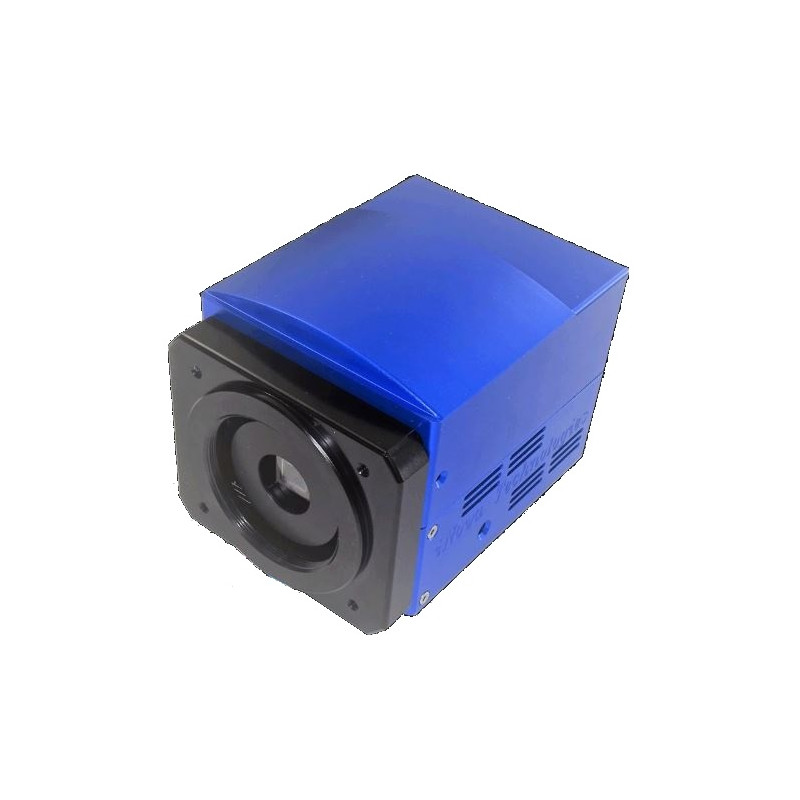

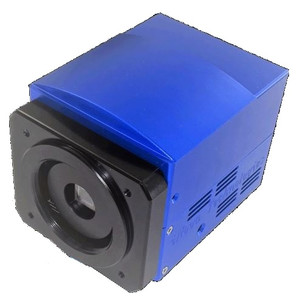

i-Nova Kamera und Astrofotografie-Steuerung SIS-IMX290M Mono

Artikel-Nr.: 57601
Marke: i-Nova

$ 1.160,-

inkl. MwSt
Wenn Sie an diesem Artikel interessiert sind, kontaktieren Sie bitte unseren Kundenservice:
i-Nova Kamera und Astrofotografie-Steuerung SIS-IMX290M Mono
i-Nova Kamera und Astrofotografie-Steuerung SIS-IMX290M Mono
i-Nova Kamera und Astrofotografie-Steuerung SIS-IMX290M Mono
Artikelbeschreibung
Technische Daten
Kundenmeinungen
Empfohlenes Zubehör

Artikelbeschreibung:

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

i-Nova Technologies - Smart Imaging System (SIS)

The Smart Imaging System (SIS) is a modular solution based on the SIS-Box, a powerful computer running Linux Ubuntu OS and an exchangable camera sensor module for imaging. The whole system can be attached to a telescop like any other astronomy camera. In addition to controlling the camera and handling the image acquisition, the SIS-Box computer can control any INDI-compatible device from filter wheels to automated domes, telescope mounts, electric focusers, etc... This enables advanced astrophotography within an integreated system: A power hungry external computer to control everything isn't necessary anymore!

There are 2 ways to use the SIS. In direkt mode the system is connected through an HDMI port with a monitor or TV and controlled with a wireless mini-keyboard. In remote access mode, you install the VNC Viewer software on any client device (desktop PC, laptop, mobile device) and connect it to the SIS via Internet or local network. The VNC Viewer software is compliant with Windows, macOS, Linux, iOS, Android and more.

The current software package on the SIS includes:

  • Planisphere: Sky Charts for locating sky objects and controlling mount
  • PhD2 Guiding for autoguiding,
  • SISCapture for imaging and visual enhancement, real-time processing & stacking
  • Over time the number of applications will increase as the software updates automatically

Technical specifications:

  • CPU: 8-Core ARM® Processor @2GHz
  • 2GB RAM, 8GB ROM (eMMC flash memory)
  • High performance storage SSD
  • Operating system: Linux Ubuntu

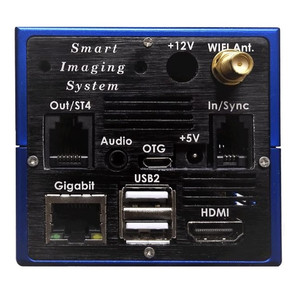

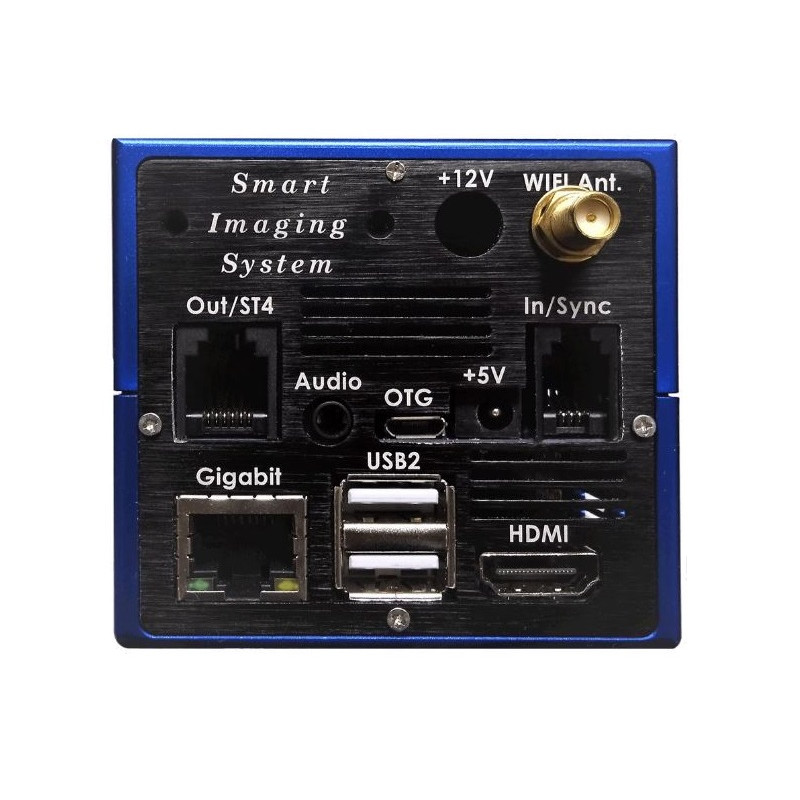

  • Connectivity ports: Ethernet GigaBit, 4x USB 2.0, OTG micro extension USB 2.0 ,HDMI v1.4,Bluetooth 4.0, 2.4G Wifi 802.11 b/g/n, ST4 (autoguider) / 4 octo coupled outputs , 3 octo coupled inputs

Features:

  • Low power consumption: less than 0,3A at 12V (DC)
  • Compact size: 85 x 70 x 70 mm
  • Low weight: ca. 450g
  • runs in challenging conditions: low/high temperature and humidity
  • Built-in webserver (access via iPhone or Android)
  • Can connect to the Internet for software updates / remote maintenance
  • Can control any INDI-compatible device

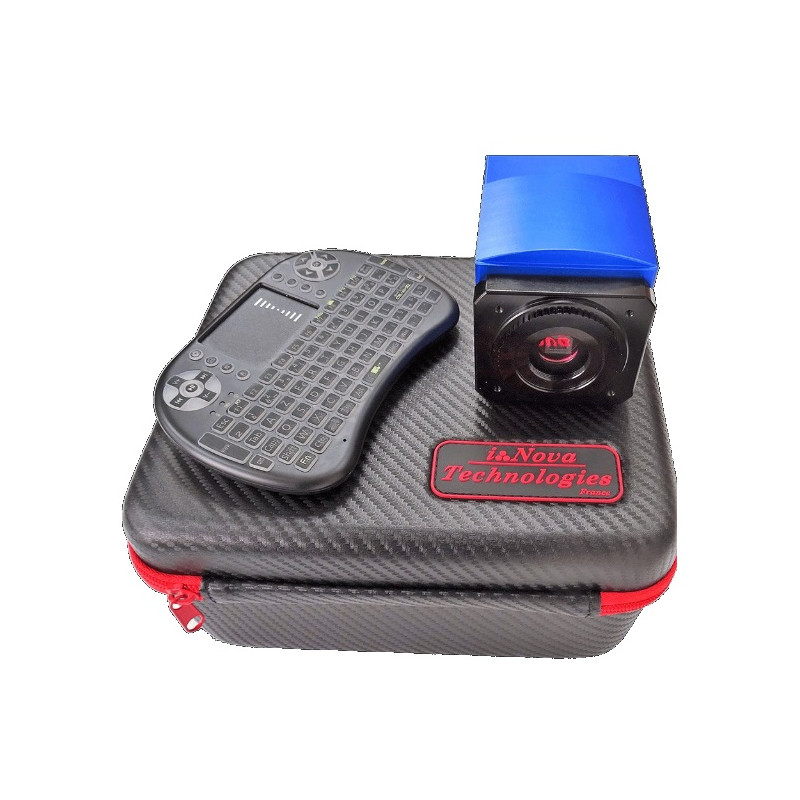

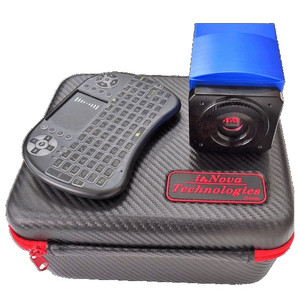

  • Wireless mini-keyboard (backlit) with touchpad
  • HDMI Cable (3m)
  • Durable Case (EVA)
  • Modular desing enables easy hardware upgrades and addition of new features.
  • The SIS is available in three configurations:

SIS-IMX224C: features a 32GB SSD disk and the IMX224C color camera modul:

  • Sensor: Sony IMX224 color
  • Resolution: 1280 x 960 pixel
  • Sensor size: 4.8 x 3.6 mm
  • Pixel size: 3.75 µm

SIS-IMX290M: features a 64GB SSD disk and the IMX290M mono camera modul:

  • Sensor: Sony IMX290 mono
  • Resolution: 1920 x 1080 pixel
  • Sensor size: 5.6 x 3.1 mm
  • Pixel size: 2.9 µm

SIS-IMX185C: features a 120GB SSD disk and the IMX185C color camera modul:

  • Sensor: Sony IMX185 color
  • Resolution: 1920 x 1200 pixel
  • Sensor size: 7.2 x 4.5 mm
  • Pixel size: 3.75 µm

The SIS architecture has been designed in such a way that the hardware upgrade becomes easy: the imaging sensor module is interchangeable and can be replaced by more powerful models as sensor technology improves rapidly.
