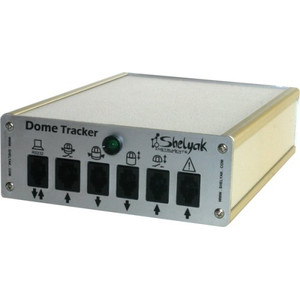

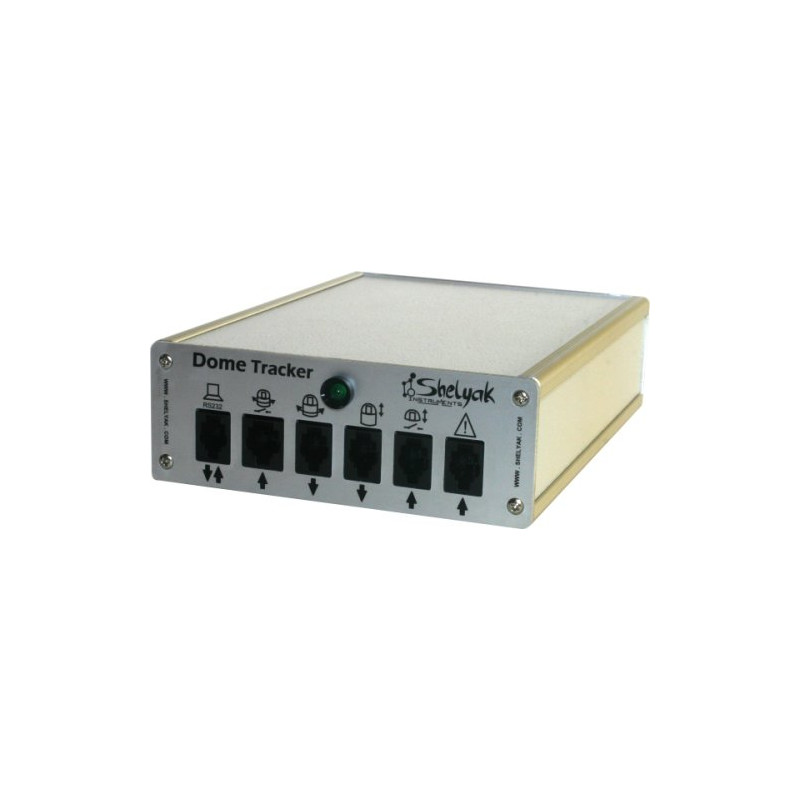

Dome Tracker Sternwarten-Version

langfristig
Artikel nicht mehr verfügbar + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

Dome Tracker has been designed by Cyril Cavadore to automatise movement of your dome or roof. It inserts between your computer (controling your telescope and other accessories) and your motors controler. Dome Tracker can send signal to open and close your shelter, include an urgency closure input associated with a security input (to ensure your telescope if parked for a roll-roof for exemple)… It allow to enslave your dome with your telescope movement during go-to and tracking. Dome Tracker can be install on an existing observatory or a new one.

Interfaces:

  • The Dome Tracker is connected to your PC with a RS232 serial interface. Your PC is controling your telescope and other accessories wihtin PRISM software or any software that can interface with an ASCOM dome driver. Your software is controling telescope and dome and ensure continuous alignment between the two during Go-To and tracking.
  • A rotation coder and an index capter allow the system to know what is the actual position of the dome. Coder/capter setup depends on your dome and equipment but several users have shared their tip & trick on our discussion group.
  • Connect your Dome Tracker to the controler for your dome rotation motor. Dome Tracker is acting like a switch which tell the motor to go right or left.
  • The Dome Tracker can also send a signal (for a given period of time) to the shelter motor to open or close it.
  • For roll-roof, to switch will stop the Dome Tracker of opening or closing the roof. Dome’s shelter end of movement are not mamanged as, in most cases, this is managed internally on the dome with security and radio-based signal (no firm connection with the base of the dome to allow continuous rotation of the dome.
  • A special input is dedicated to an urgency stop or a weather monitoring system that can tell the Dome Tracker to close your observatory. A security is included to tell the Dome Tracker if the telescope is parked so that the roll-roof doesn’t hit the telescope when closing the roof.


The Dome Tracker can be driven by ASCOM driver or directly in Prism (not provided, version 6 or 7 for latest functionalities required). A test software is also provided; it will allow you to test all your connection when installing your Dome Tracker and to properly parameter your system.

The Dome Tracker can work in two different modes: DOME or ROLL-ROOF:

  • In DOME mode, the dome will first rotate to find its zero position; positions is then tracked with a angular coder. Shelter is managed by a signal sent to your system (can be radio or other depending of your setup).
  • In ROLL-ROOF mode, the Dome Tracker will send signal to your motor controler until end-of-position switchs are activated.


The Dome Tracker requires a 12V power supply. It does include internal relays for electrical isolation.

Dome Kit content:

  • Dome Tracker main system
  • RS232 serial cable: 5m long
  • emergency closure cable: 3m long
  • 128 pulses rotating sensor
  • zero position inductive sensor
  • Sensors cable: 3m long
  • Motor driver cable: 3m long
  • Roof closure command cable: 3m long
  • 12V connector
