Mikroskopie > Mikroskope > Stereomikroskope > Stereo-Zoom-Sets > Optika > SZO > Optika Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung
Artikel-Nr.: 61874

Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung

UVP: $ 1.540,- Unser Preis:
$ 1.510,- inkl. MwSt, zzgl. Versandkosten
inkl. Bestpreis-Garantie
langfristig
Artikel nicht mehr verfügbar + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

SZO Series

OPTIKA SZO Series represents a very compact Greenough stereo microscope with 6.72:1 zoom and 110mm working distance for professional environments and laboratories which allows the observation of samples without any particular preparation, yet producing incredibly crisp and detailed images. An extensive range composed by binocular and trinocular heads with 23mm field of view for a very wide peripheral view and comfortable posture even after several hours of operation. Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Discover how easily an enhanced accuracy and repeatability can be achieved thanks to the click-stop zoom for precise and repetitive observations. An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system. Special external illuminators and moving/heating stages are also available for specific applications. Keep in my mind the application, always: if you are soldering a printed circuit board, it may be more important to have a long working distance; if you are counting items, then a large field of view will be of great assistance.

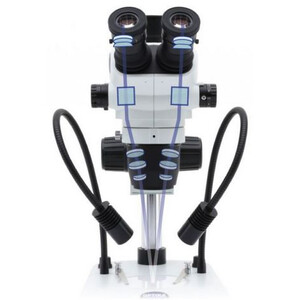

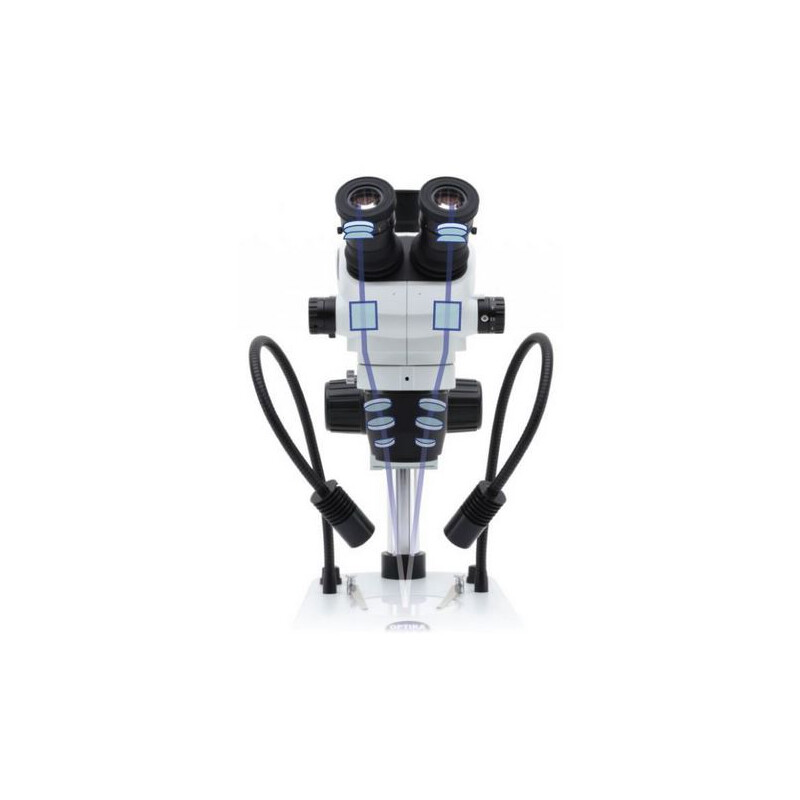

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly inspected. Binocular and trinocular heads are 45° inclined to grant comfortable posture to the user even after several hours of operation.

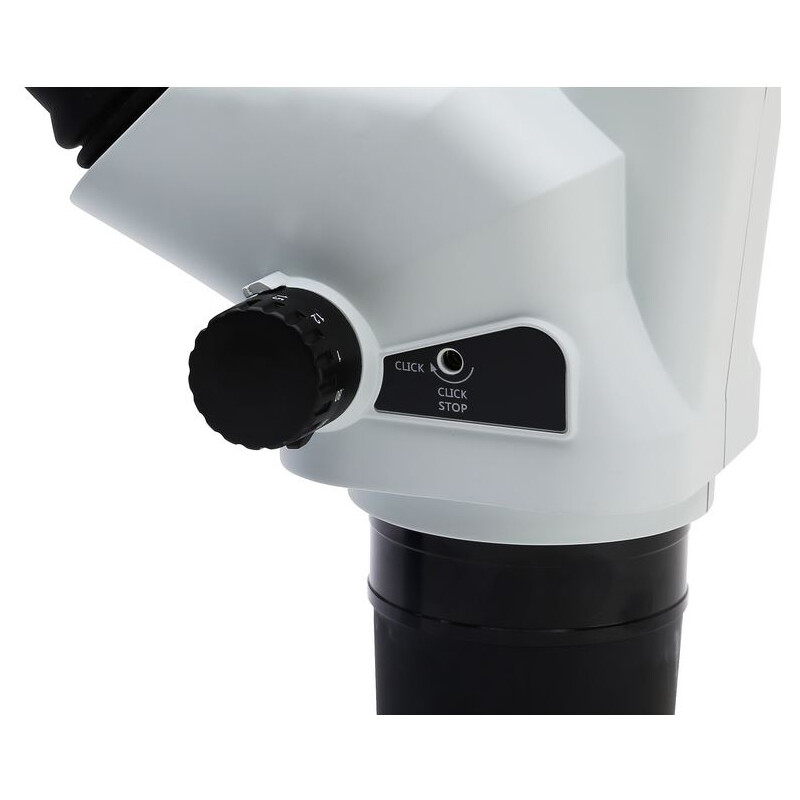

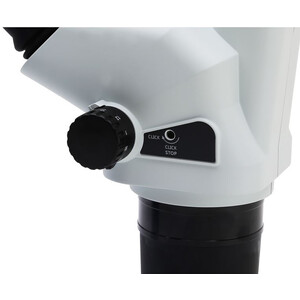

Reliable crisp images, repetable zoom settings

Discover how easy is to obtain precise reproduction of magnifications, thus simplifying inspections and measurements. Now, with SZO your observations are easier thanks to the 11-step click-stop system in the zoom which allows you to exactly set the magnification at the same level of the previous time. Zoom control is greatly facilitated with no need of constantly look at the magnification knob.

Incredibly practical and comfortable, especially with cameras

Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Watch at the same time your specimen on a monitor and directly in the eyepieces, without any setting.

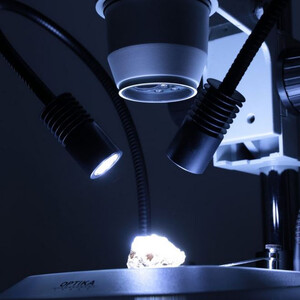

STEREOZOOM MICROSCOPES FOR ROUTINE INSPECTIONS X-LED³ EXCLUSIVE LIGHTING SOURCE

Special technology able to double the light intensity for incomparable performance, ensuring constant pure-white colour temperature. Relevant money & energy saving thanks to the incredibly low energy consumptions allow you to cut the electricity bills by 90%! On SZO-3, SZO-4, SZO-5, SZO-6.

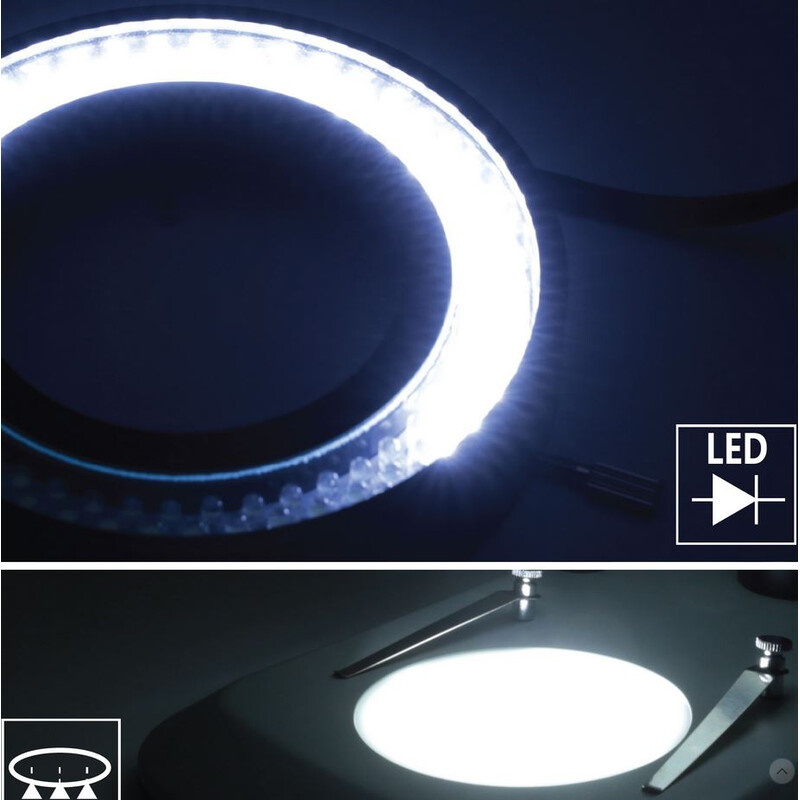

LED – OPTIMIZED ILLUMINATION

Money & energy saving thanks to LED long lifetime (65.000 hours, 20 years in case of 8 hours/day) which is more than 20 times compared to a standard halogen bulb. LED illumination is available as transmitted light, cold light and ring light illuminators. On SZO-3, SZO-4, SZO-5, SZO-6.

Spezification SZO-8

Observation mode: Brightfield.

Head: Trinocular (fixed photo port 70/30), 45° inclined, 360° rotating.

Interpupillary distance: Adjustable between 51 and 75 mm.

Dioptric adjustment: On both eyepieces.

Eyepieces: WF10x/23 mm, high eye-point.

Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop detents.

Working distance: 110 mm

Specimen stage: Fitted with a black/white disc and specimen clips

Focusing: Rack and pinion mechanism controlled by a pair of knobs placed on both sides of the stand.

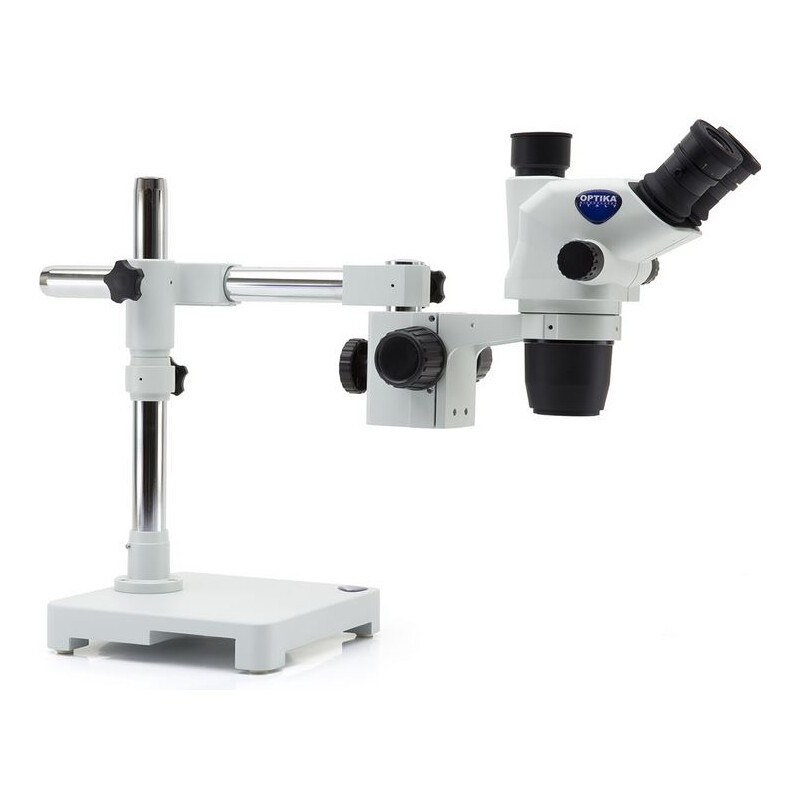

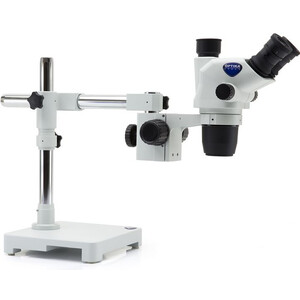

Stand: Overhanging stand 420 mm high, 430 mm horizontal arm length, base 230×230 mm with following adjustments: heigh, longitudinal extension and head rotation angle (left-right).

Technische Daten

Optik


Abbildungsmaßstab (-fach)
6.7-45
Beleuchtung
keine
Kondensor
-
Objektivtyp
Achromatisch
Okular (-fach)
10/23
Stromversorgung
-
Vergrößerung (-fach)
45
Optisches System
Greenough

Mechanik


Bauart
Trinokular
Arbeitsabstand (mm)
110
Einblick (°)
45° Schrägeinblick, 360° drehbar
Fokussierung
Grobtrieb (beidseitige Triebknöpfe)
Objekttisch
-

Besonderheiten


Akkubetrieben
-
Filterhalter
-
Integrierte Digitalkamera
-
Leuchtfeldblende
-
Zentriertisch
-
Staubschutztasche
ja

Allgemein


Serie
SZO
Farbe
weiß
Höhe (mm)
420
Länge (mm)
230
Breite (mm)
230
Gewicht (g)
15000

Anwendungsgebiete


Mineralogie
ja

Sonstiges


Lieferanten Produktnummer
SZO-8

Empfohlenes Zubehör

Mikroskopie > Mikroskopie-Zubehör (29)
Okular

Omegon Deluxe 10x Mikroskop Okular

$ 49,90*
Mikroskopie > Sonstiges (1)

Bresser Immersionsöl 5ml nD=1.515

$ 10,90*
Grundpreis: $ 2.180,-/L
Medien (1)

Kosmos Verlag Das große Kosmos-Buch der Mikroskopie

$ 47,90*
Pflege & Reinigung > Reinigungsmittel (3)

Omegon Optik Reinigungsset 7 in 1

$ 19,90*
Pflege & Reinigung > Sonstiges (2)

Omegon Microfaser Reinigungstuch 20cm x 20cm

$ 4,90*

*Alle Preise inklusive der gesetzlichen Mehrwertsteuer, zzgl. Versandkosten.

Optika Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung
Greenough Optical System
Optika Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung
Reliable crisp images, repetable zoom settings
Optika Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung
Stereozoom microscopes for routine inspections x-LED exclusive light source
Optika Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung

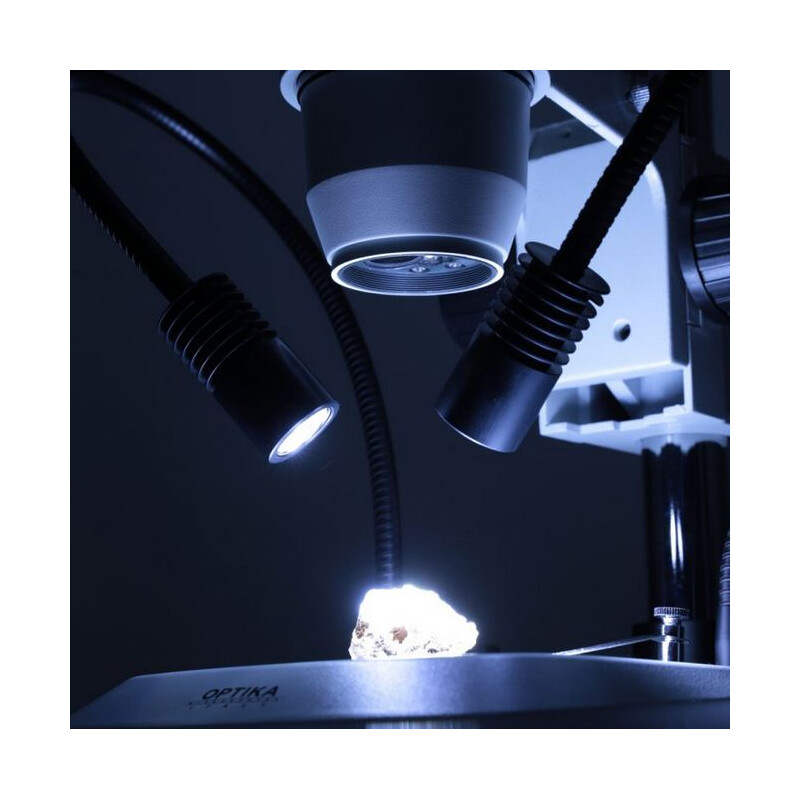

Powerfull and uniform illumination
Optika Zoom-Stereomikroskop SZO-8 trino, 6.7-45x, überhängend, ohne Beleuchtung

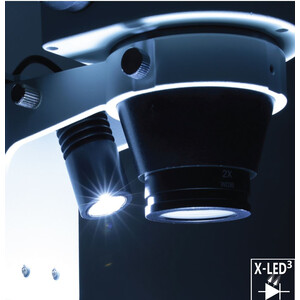

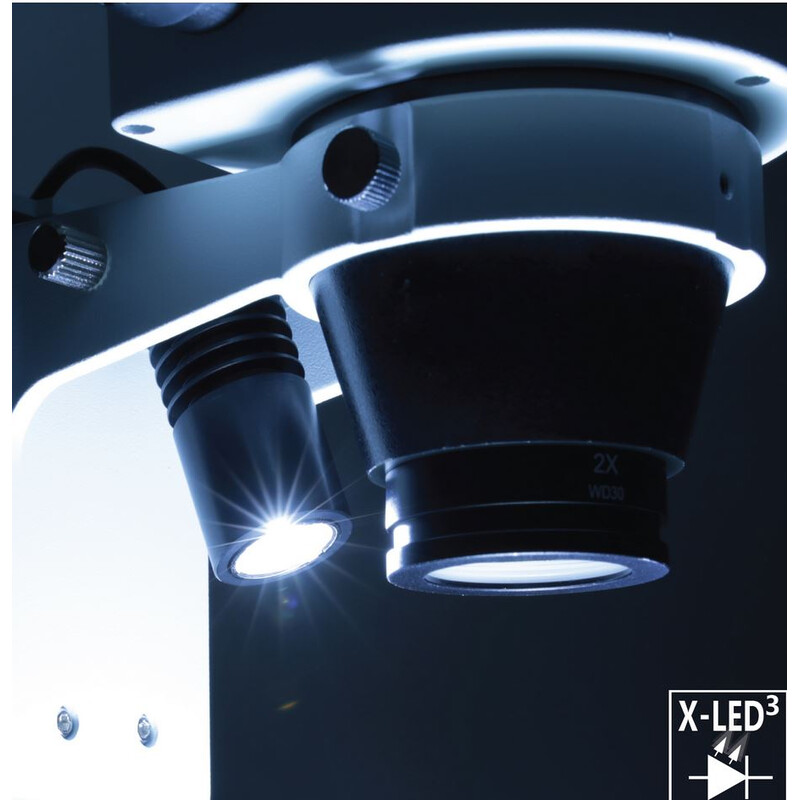

X-LED³ exclusive lighting source
