Mikroskopie > Mikroskopie-Zubehör > Kameras > Kameras > Optika > CCD Cooled > Optika Kamera D12CC Pro, Color, 12 MP CCD, USB3.0
Artikel-Nr.: 67808

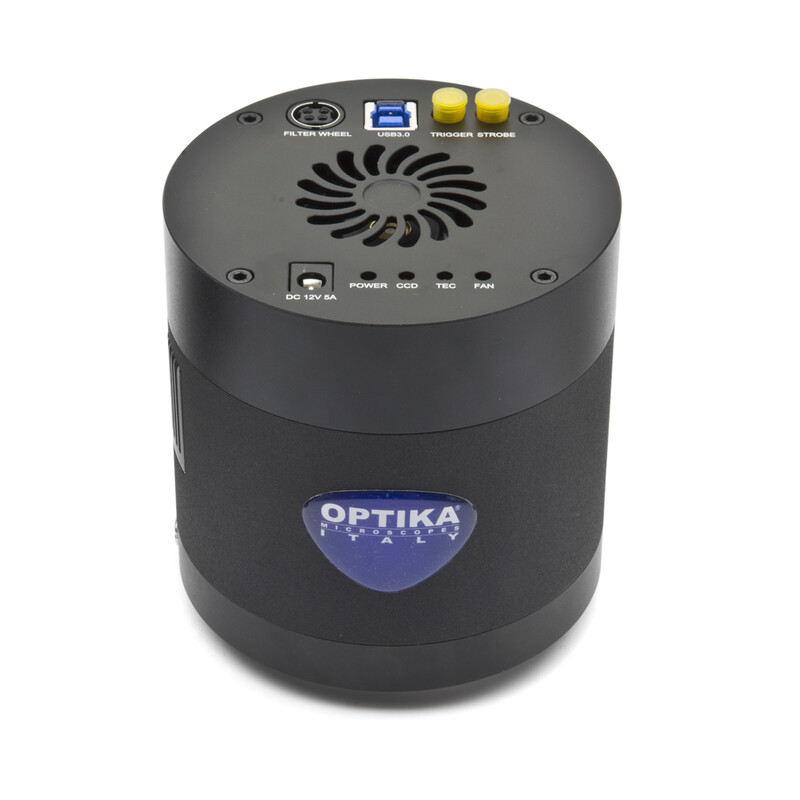

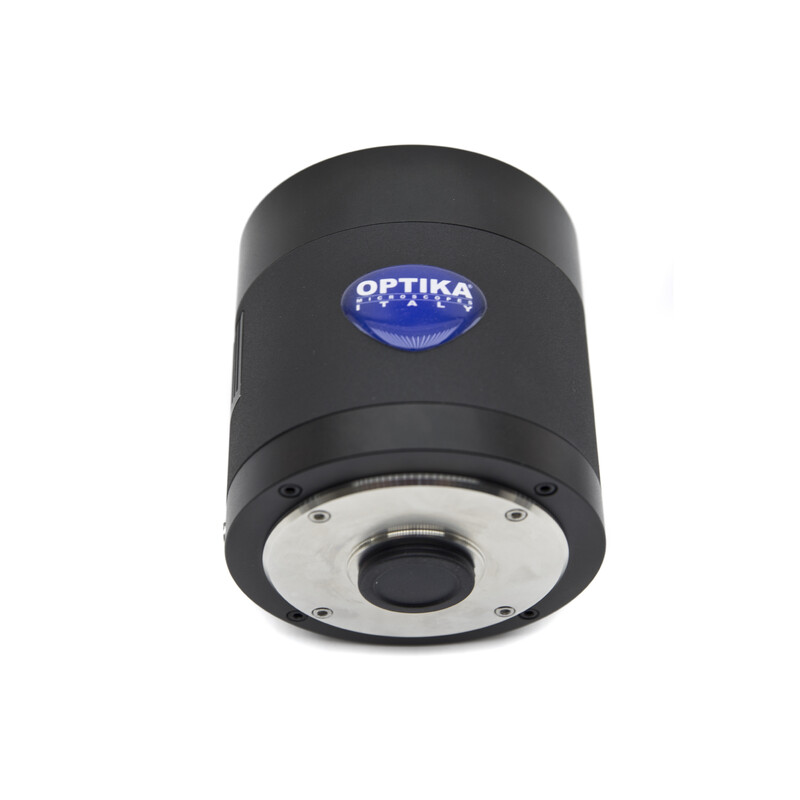

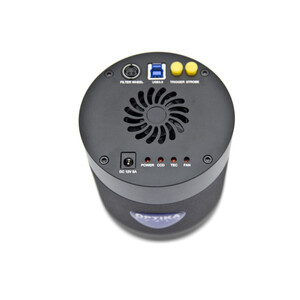

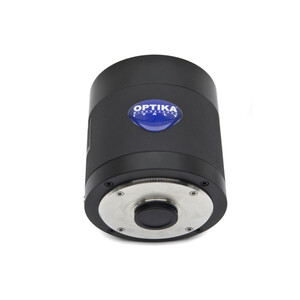

Kamera D12CC Pro, Color, 12 MP CCD, USB3.0

UVP: $ 8.300,- Unser Preis:
$ 7.500,- inkl. MwSt, zzgl. Versandkosten
inkl. Bestpreis-Garantie
langfristig
Artikel nicht mehr verfügbar + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

Ultra-professional yet intuitive camera with high resolution, cooled large CCD sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy.

The cooling system affects sensitivity and therefore image clarity.

The compact and elegantly designed housing conceals the very latest in camera technology.

Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).

Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.

  • Recommended for special applications, including fluorescence
  • Simple operation, driver-free
  • Top-class, large SONY CCD sensor
  • Cooling system for enhanced sensitivity
  • Universal connection to any microscope brand
  • Crisp images
  • USB3.0 for impressive high frame rate
  • Incredibly accurate colors

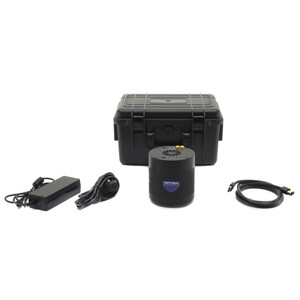

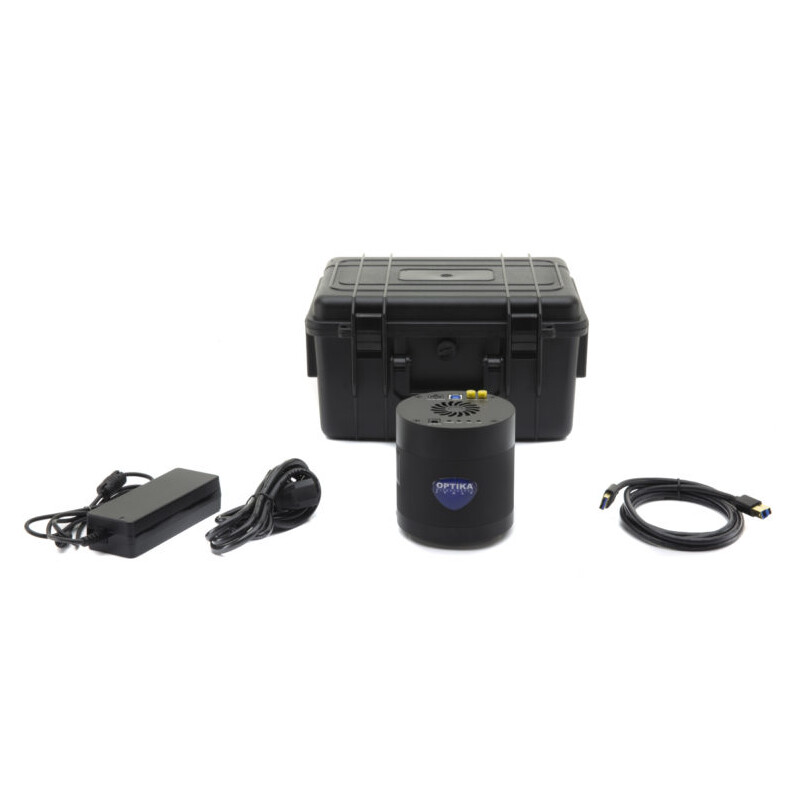

  • USB cable and calibration slide included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux

Technische Daten

Leistung


Chipgröße (mm)
1"
Lichtempfindlichkeit (Lux)
420mV at 1/30sec
Auflösung Foto (Pixel)
4248 x 2836
Bildfrequenz (fps)
3.6@4248 x 2836

Kamera


Megapixel
12
Peltier-Kühlung
ja
Farbkamera
ja
Pixelgröße (µm)
3.1 x 3.1
Bildübertragung
USB 3.0
Auflösung Foto (Pixel)
4248 x 2836
Auflösung Video (Pixel)
4248 x 2836
Sensor
CCD (SONY EXVIEW)
Chipgröße (″)
1
Bildfrequenz (fps)
3.6
Kameraverschluss
Rolling Shutter
Belichtungszeit min. (ms)
0.06
Belichtungszeit max. (ms)
3600
Empfindlichkeit (mV/s)
0.42V@1/30s
Benötigter Adapter
1x
Software
LiteView
Unterstützte Betriebssysteme
Win 7/8/10 Mac OS Linux

Allgemein


Farbe
schwarz
Breite (mm)
100
Höhe (mm)
100
Gewicht (g)
500
Serie
CCD Cooled

Anwendungsgebiete


Fluoreszenz
ja
Live
ja
Geringe Vergrößerung
ja
Hohe Vergrößerung (100x)
ja

Sonstiges


Lieferanten Produktnummer
C-D12CC
Optika Kamera D12CC Pro, Color, 12 MP CCD, USB3.0
Optika Kamera D12CC Pro, Color, 12 MP CCD, USB3.0
Optika Kamera D12CC Pro, Color, 12 MP CCD, USB3.0
Optika Kamera D12CC Pro, Color, 12 MP CCD, USB3.0
Optika Kamera D12CC Pro, Color, 12 MP CCD, USB3.0
