Die INFINITY2 CCD USB 2.0 Kameras sind mit einem hochqualitativen Sony CCD Sensor ausgestattet und bieten ausgezeichnete Empfindlichkeit, großen Belichtungszeitumfang und eine 12-bit digitale Datenausgabe. Unter anderem werden folgende Funktionen angeboten: Bild-Binning, automatischerWeißabgleich, programmierbare Verstärkung, Teilbild- und Teilbereichsauswahl. Sie sind ideal für anspruchsvolle wissenschaftliche, medizinische, ophthalmische und naturwissenschaftliche Anwendungen.
Besonderheiten
- 1, 2 und 3 Megapixel-Auflösung
- Höherer dynamischer Bereich für quantitative Analyse
- Schnelle Bildfolge
- Rauscharme Elektronik
INFINITY Kamera Leistungsbeschreibungen
- Automatische / manuelle Belichtung
- Automatischer / manueller Weißabgleich
- Programmierbare Verstärkung, 1 bis 10X optimierbar
- INFINITY1, 2 & 3 — C-Mount Gewinde
- INFINITY4 — F-Mount Gewinde
- USB 2.0 Hochgeschwindigkeits-Schnittstelle (USB 480 MB/s gegenüberFirewire 400 MB/s)
- Stromversorgung: INFINITY1 & 2 - USB Bus
- Betriebstemperatur 0ºC to +50ºC
- Betriebsfeuchtigkeit 5% to 95%, nicht kondensierend
INFINITY ANALYZE Software
Alle Lumenera INFINITY Kameras enthalten INFINITY ANALYZE Software, die volle Kamerakontrolle und hochentwickelte Bildaufnahme und Analyse ermöglicht.
Folgende Funktionen sind enthalten:
- Videovorschau in Echtzeit
- Maße und Anmerkungen
- Archivierung mit Suche nach Datum, Autor, Beschreibung
- Zusammensetzung der Fluoreszenzbilderbeinhaltet RGB Look Up Tabelle (LUT's)
- Einzelbildaufnahmen und Zeitreihen
- Bild-Stitching
- Automatische/manuelle Belichtung und Weißabgleich
- Farbton, Sättigung, Verstärkung, Kontrast, Helligkeit und Gammakontrollen
- Hochentwickelte Bildverarbeitung
- Benutzerspezifische Schnittstelle für bestimmte Anwendungen
- Arbeitsblatt mit Miniaturansichten
- Drag & Drop Messdaten in Excel zur Analyse
- Kameraeinstellungen speichern und wiederherstellen
- Kontextsensitive Hilfsfunktion für alle Funktionen
- Optionale Bildschärfeverstärkung
Auch enthalten ist INFINITY CAPTURE, eine intuitive Benutzeroberfläche, die alle Grundfunktionen zur Bedienung der Kamera und Bilderfassung enthält. Integrieren Sie Ihre INFINITY Kamera in Dritt-Softwareanwendungen mittels TWAIN und DirectX/WDM Schnittstellen (inbegriffen).
Anwendungen
Hellfeld, Dunkelfeld, DIC, Live Cell Bildverarbeitung, Histologie, PathologieZytologie, Fehleranalyse, Halbleiter-Inspektion, Metrologie
Mac-Plug-In für INFINITY Kameras
- Ein Mac Plug-In ist ab sofort für alle INFINITY Kameras erhältlich
- Kompatibel mit Mac OS 10.4 (benötigt Quick Time V7)
- Besuchen Sie Lumeneras Internet Seiten und laden Sie die neueste Version herunter

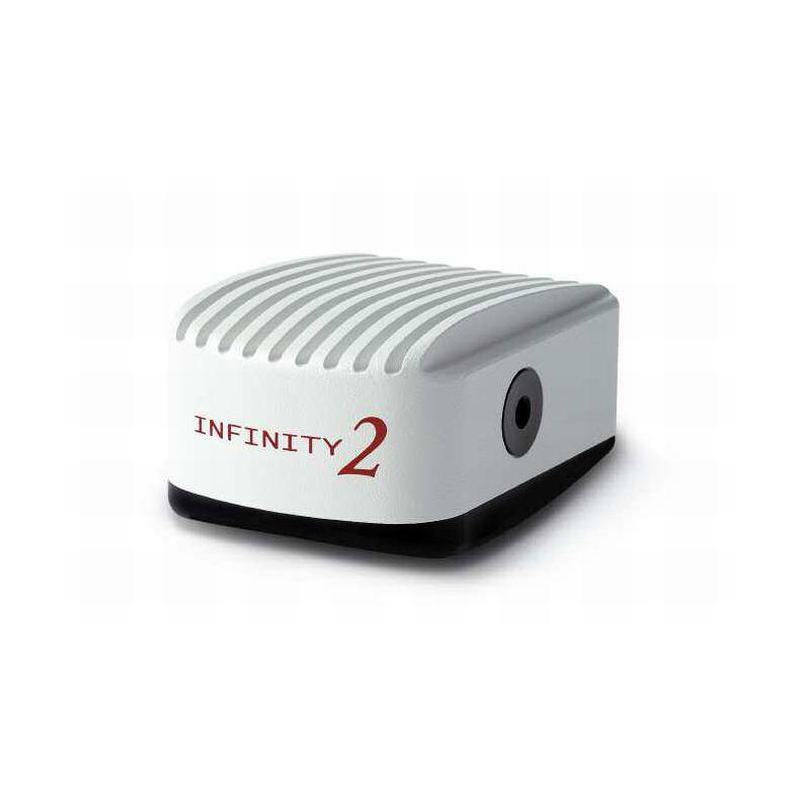

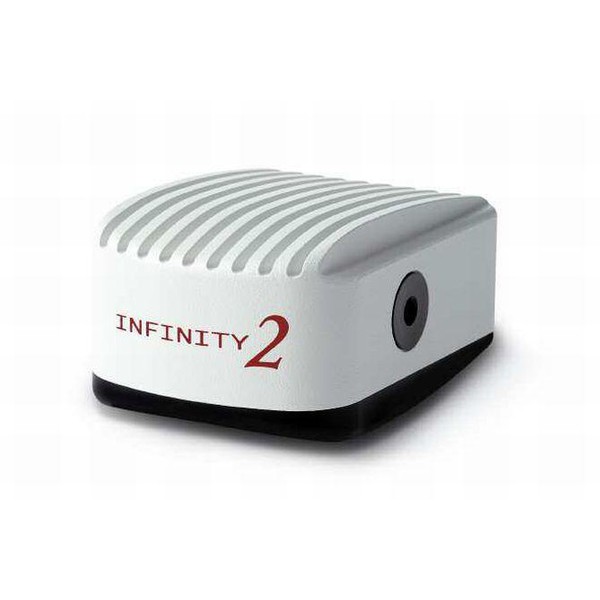

INFINITY2-2C, CCD, color, 2.0 MP
With 1616X1216 resolution and on-board processing, the INFINITY2-2 delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus while auto exposure and auto white balance efficiently capture your optimal image. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers. The USB 2.0 digital interface ensures a simple plug and play installation – and one standard cable minimizes camera clutter. Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.
INFINITY 2-2
The INFINITY 2-2 is one of Lumenera’s most popular scientific camera, offering the perfect balance of resolution, color reproduction, sensitivity and high-speed preview. The multi-purpose INFINITY 2-2
provides laboratories with the ability to perform a variety of applications, replacing the need for multiple camera systems. Whether you are performing brightfield or fluorescence microscopy, this is the perfect solution for your technique.
Superior Sensitivity and Color Reproduction
Years of experience in the microscopy market have allowed Lumenera to develop specialized algorithms ensuring superior color reproduction. Additionally, INFINITY software allows the adjustment of all live preview color facets, enabling
users to apply their own personal preferences to each image. For lower light applications the Sony CCD sensor has an extremely high dynamic range, resulting in excellent camera sensitivity.
Full Image Analysis Software Included
INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering; camera control, measurement, annotations, tiling and post capture enhancement, are both included. Camera
and software combined to create a complete microscopy imaging solution for your application.
USB 2.0 Plug-and-Play Interface
Sharing and installation of one or more cameras on a single computer is quick and simple through a high-speed USB 2.0 interface. This camera is compatible with the USB 3.0 interface, supporting the existing USB 2.0 frame rates.
Third-Party Software Integration
INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support.
Mac Camera Software
A Mac camera driver and ImageJ plug-in are available for the INFINITY 2-2.
Superior Technical Assistance Center (TAC)
As a Lumenera customer you gain access to the TAC group and knowledge base
which provide full support for cameras, software and microscopy applications.
Features
Low noise progressive scan 1/1.8” 2.0 megapixel Sony ICX274 CCD sensor
•Full color sub-windowing allows for rapid focus and scanning of samples; up to 30 fps at 640x480 resolution
• 8 or 12-bit pixel data modes
• Software compatible with Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit operating systems
• Includes TWAIN and DirectX/Direct Show support
Recommended Applications
• Brightfield
• Darkfield
• Live Cell Imaging
• Histology
• Pathology
• Cytology
• Defect Analysis
• Semiconductor Inspection
• Metrology
• Gel Documentation
• Moderate Light Fluorescence
• Quantitative Analysis
Warranty
• Four (4) year warranty
Microscope Coupler
• Requires 0.5x c-mount coupler
