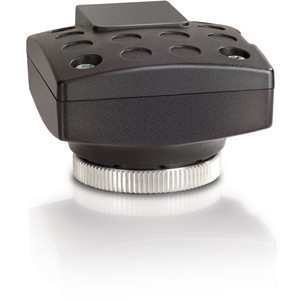

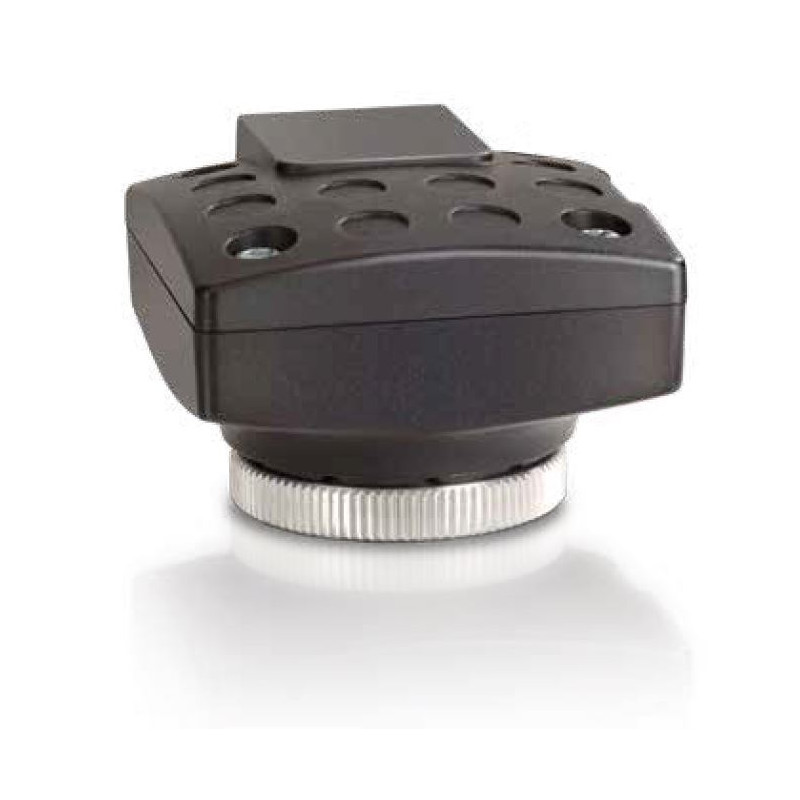

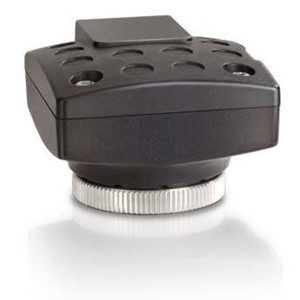

Kamera LC30, 3.1 MP 1/2 inch, CMOS, color

OLYMPUS LC30

Excellent for Standard Applications and Digital Documentation Purposes

· Powerful 3.1 megapixel CMOS sensor

· Excellent color fidelity

· High frame rates

· Complete integration into Olympus Imaging platforms for intuitive control*

· Easy to install

· Convenient USB connection

The Olympus LC30 color camera for microscopy combines versatility with performance. With up to 37 frames per second (fps), faithful color reproduction, full integration into Olympus imaging platforms, and an excellent cost-performance ratio, the LC30 is the ideal entry-level microscope camera for quality bright-field imaging — suitable for applications in life and material sciences. The sensitivity and frame rate of the 3.1-megapixel CMOS chip can be increased using various binning modes, resulting in easy observation and focusing. The LC30 camera can be quickly and easily mounted on all

microscopes equipped with a standard C-mount adaptor, and requires only a single USB 2.0 cable for high-speed data transfer and power supply. Its complete integration into the cellSens and OLYMPUS Stream imaging platforms helps ensure the seamless interaction of microscope, camera, and additional devices, delivering intuitive and efficient operation.

• Image Sensor: Color CMOS
• Sensor Size: 1/2 inch (6.55 × 4.92 mm)
• Resolution: (max.) 2,048 × 1,532 pixels
• Pixel Size: 3.2 × 3.2 µm
• Binning: 2x, 3x, 4x
• A/D Converter (Bit Depth): 10-bit
• Exposure Time: From 57 µs to 750 msec
• Live Frame Rates:

10 fps at 2,048 × 1,532 pixels (@ full resolution)

28 fps at 1,024 × 768 pixels (@ binning 2x)

37 fps at 680 × 512 pixels (@ binning 3x)

49 fps at 508 × 384 pixels (@ binning 4x)

• Cooling System: N/a
• External Trigger: N/a
• Data Transfer: USB 2.0
• Color Profiles: Olympus real-time ICC color profiles
• Partial Readout: Yes (in software)
• Remarks:

Convenient USB interface

High frame rate at full resolution

Easy installation

Accurate color reproduction

• Operating System:

Windows 10 (32-bit or 64-bit)

Windows 8/8.1 (32-bit or 64-bit)

Windows 7 (32-bit or 64-bit)

Ultimate/Enterprise/Business/Home-Premium

• Dimensions: (H × W × D) 48.6 mm × 44 mm × 31 mm
• Weight Approx.: 41 g
• Mount: C-mount
