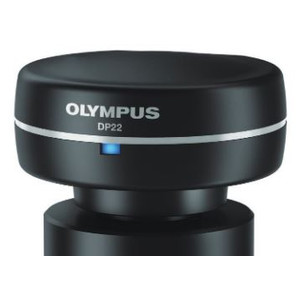

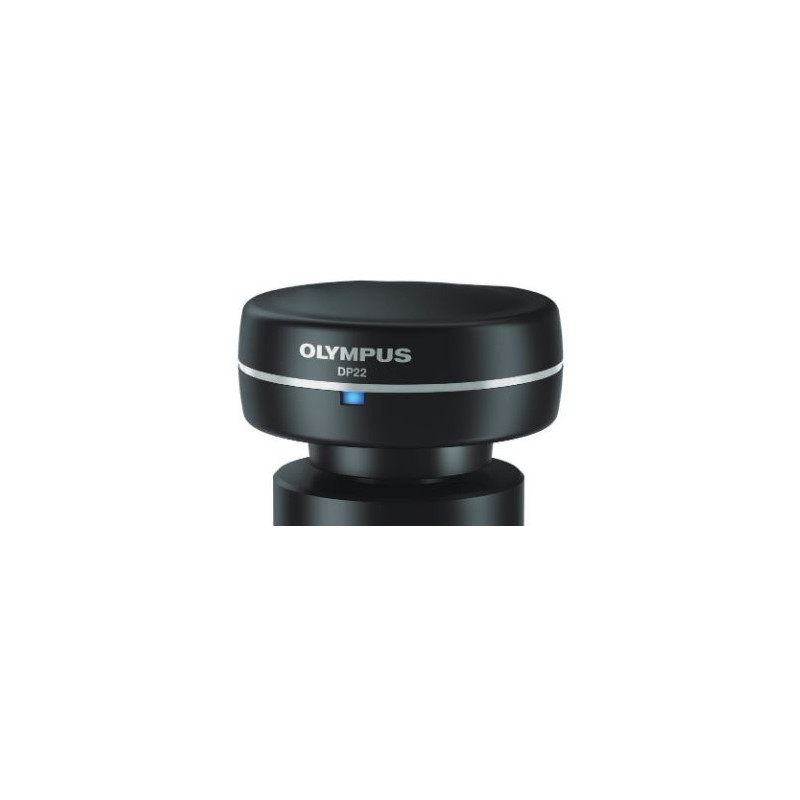

DP22 Color Camera
This easy-to-use, stand-alone digital camera is designed to output a 2.8-megapixel image at a rate of 25 frames per second. Combined with the imaging chip's Progressive Scan readout, the DP22 camera delivers a live image that is fast, fluid, and free from distracting artifacts, such as image striping or color ghosting, making day-long routine work more comfortable and efficient. A broad range of scientific and educational applications benefit from the camera’s rapid, real-time live display, stunning color, and crisp detail. Pathologists, cytologists, hematologists, and microbiologists will be impressed by the accurate color reproduction of their specimens. Also available for a PC onfiguration, the camera’s fluid live image and excellent color fidelity help provide an efficient microscopy workflow.
The DP22 is not for clinical diagnostic use.
This easy-to-use, stand-alone digital camera is designed to output a 2.8-megapixel image at a rate of 25 frames per second. Combined with the imaging chip’s Progressive Scan readout, the DP22 camera delivers a live image that is fast, fluid, and free from distracting artifacts, such as image striping or color ghosting, making day-long routine work more comfortable and efficient. A broad range of scientific and educational applications benefit from the camera’s rapid, real-time live display, stunning color, and crisp detail. Pathologists, cytologists, hematologists, and microbiologists will be impressed by the accurate color reproduction of their specimens. Also available for a PC configuration, the camera’s fluid live image and excellent color fidelity help provide an efficient microscopy workflow.
The DP22 is not for clinical diagnostic use.
Optimized for a Large Audience
Excellent Color Reproduction
Olympus’ color profiling technology has been improved on the DP22. Precise reproduction of fine structures and subtle color differences enables targets on the monitor to be identified with an accuracy equivalent to observation through the oculars, helping ensure professional-looking presentations.
Live Display at 25 Frames per Second
The DP22 camera can display a 2.8-megapixel image at 25 frames per second, surpassing standard full HD parameters without any image compression to preserve the sample’s details. When a user selects a normal full HD live image instead, the frame rate goes up to 30 frames per second for clear live motion images, even on large monitors and projectors.
Ideal for Teaching
Extended Movie Recording with Audio
The DP22 camera can record movies up to 30 minutes in length with audio when used with the DP2-SAL. This is ideal for preparing teaching or presentation materials, enabling the audience to be “virtually there” with the presenter while exploring the sample. Short movies with audio are also easy to produce and send via email, giving the recipient a better understanding of the sample context.
Three Color Modes
Three color modes enable the operator to tailor the image to suit the requirements of different applications. By selecting one of the three preset modes, the camera image is automatically adjusted based on the user’s need and the illumination technique used.
- High fidelity mode: Reliable color reproduction equivalent to observation through the oculars.
- Normal mode: Optimized for a wide range of sample staining, even pale-stained specimens.

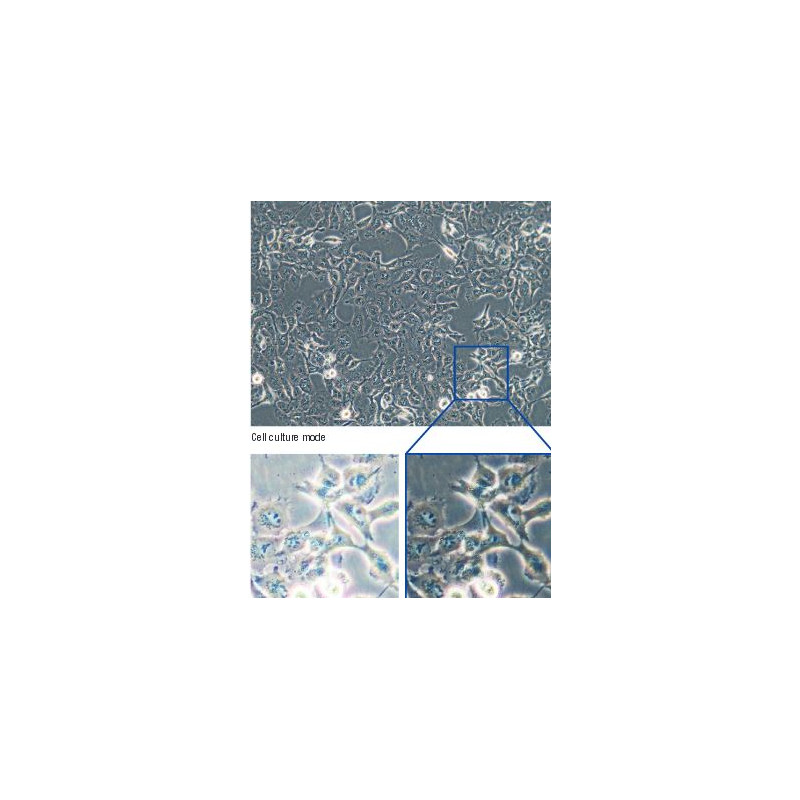

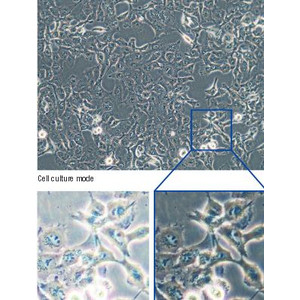

- Cell culture mode: Dedicated to phase contrast and DIC observations.
White Balance Adjustment
DP series cameras correct the image white point in real-time and provide a colorful image without any color cast. Users can change the sample illumination based on their needs without spending time adjusting the image properties.
Sequential Shooting and Movie Frame Clipping
Thanks to the DP22 camera’s fast frame rate, sharp, clear movies can be captured even when imaging fast-moving subjects. The “Movie Frame Clipping” function enables a user to extract a single high-resolution frame from a recorded movie.
Simple Control Panel

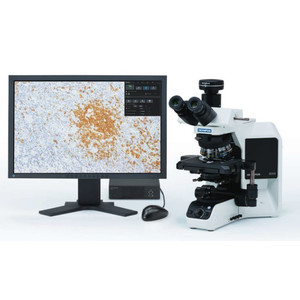

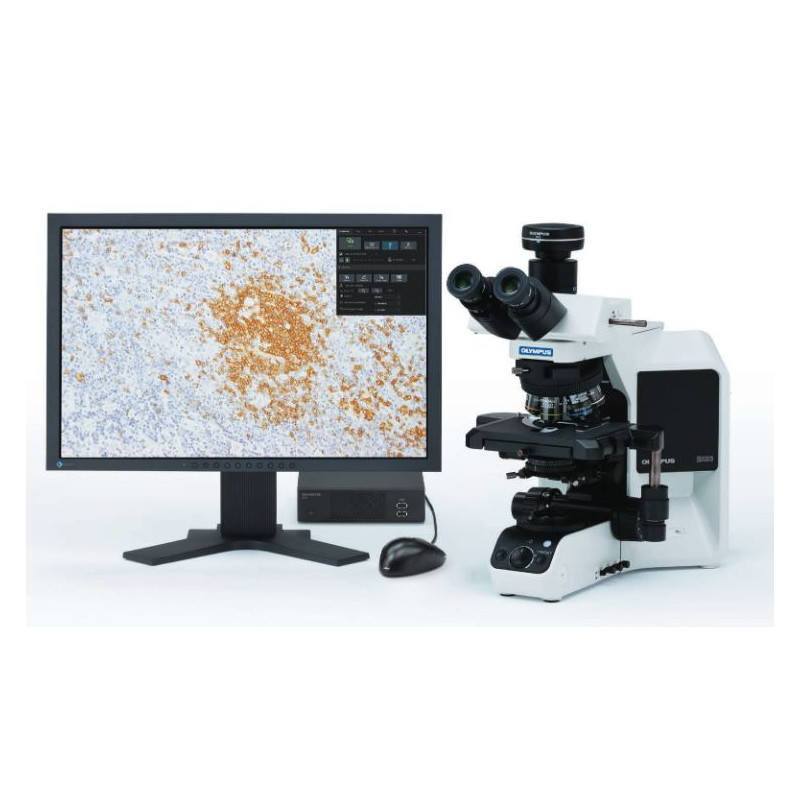

With the optional DP2-SAL controller, the DP22 camera can be operated without a computer and software. The controller connects directly to a monitor and easily interfaces directly on-screen. Frequently used buttons are conveniently placed where they’re easily accessible, and an intuitive layout makes it easy for anyone to operate the camera. In addition, buttons that are used less frequently can be hidden to show the full camera image.
Touch-Screen Monitor for Intuitive Operation
The Olympus DP2-SAL standalone camera controller also supports touch-screen monitors for improved workflow efficiency; users no longer need to look away from the monitor to operate the camera.
Compatible with a Range of External Devices
The USB interface enables the camera to connect with many devices, including an SD card, external hard drive, foot switch and/or a keyboard.
*Please contact your Olympus local representative for a list of usable USB devices.
Fast and Easy Image Capture
The DP22 camera in standalone configuration is ready to take pictures just a few seconds after you turn it on. A simple double-click of the mouse enables users to begin capturing images.
PC Configuration
The DP22 is compliant with the USB 3.0 standard for quick connection to compatible computers and fast transfer of image data.
DP22 Highlights:
- 3,0 Mpx, 1/1.8"" inch,
- Color-CCD camera uncooled
- USB 3.0 connection incl. USB 3.0 Kabel
- DP2-Sal controllbox for stand-alone usage of the DP22 (PC is not needed)
- Operation with screen menues, with mouse, keyboard or touchscreen monitor
- Sequential shooting and movie frame clipping(with/without audio-comment)
- interactive basis measurement functions, image optimizing tools
- actual magnification is read out by a coded objective revolver
- Images can be saved to USB-saving tools or shared network files.
