Caméra SBIG STF-402M Mono

N° d'article : 55058
Fabricant : SBIG

2.140,00 $

TVA incluse
Si vous souhaitez commander ce produit, contactez notre service clientèle.
Caméra SBIG STF-402M Mono
Caméra SBIG STF-402M Mono
Caméra SBIG STF-402M Mono
Caméra SBIG STF-402M Mono
Caméra SBIG STF-402M Mono
Description du produit
Spécifications
Avis clients
Accessoires recommandées
Téléchargements

Description du produit :

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

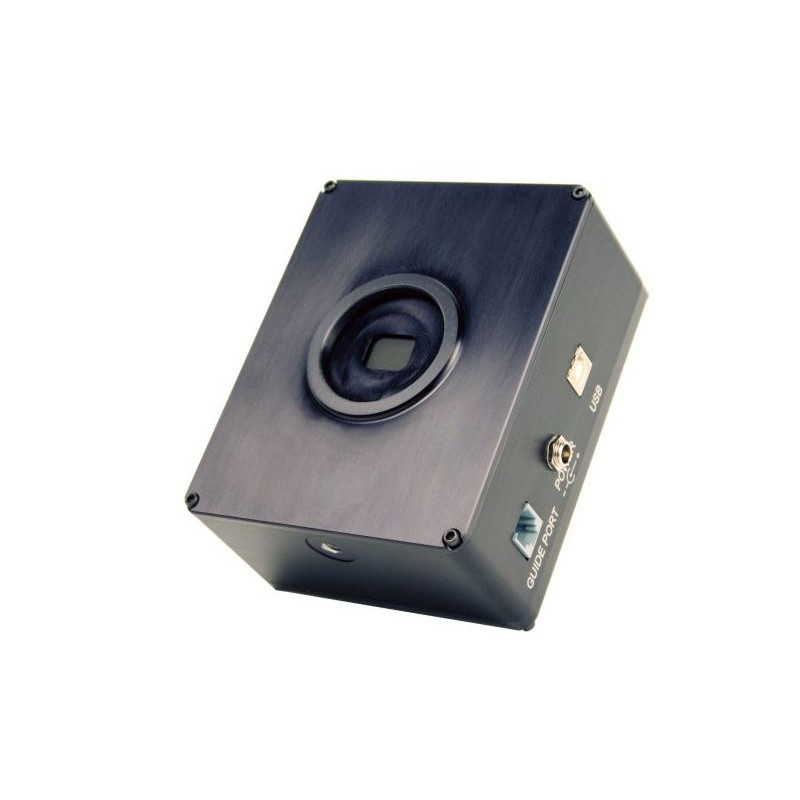

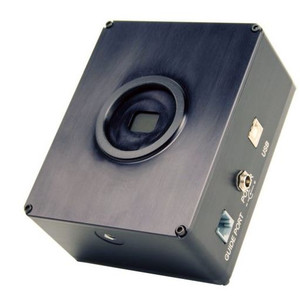

High QE Low Cost Camera: The SBIG STF-402M is a compact, economical, high QE camera with a scientific grade full frame CCD. It is excellent for educational use and photometric studies. Many users with larger telescopes and cameras consider The STF-402M to be the ultimate camera to use for guiding due to its high sensitivity and generous field of view.

Simple and Powerful: These were the design goals for the STF-402M. The small size and light-weight of these cameras make them very easy to handle and set up. The STF-402M also has two optional internal filter wheels, one with high quality RGB color imaging filters, and one with equally high quality BVI photometric filters.

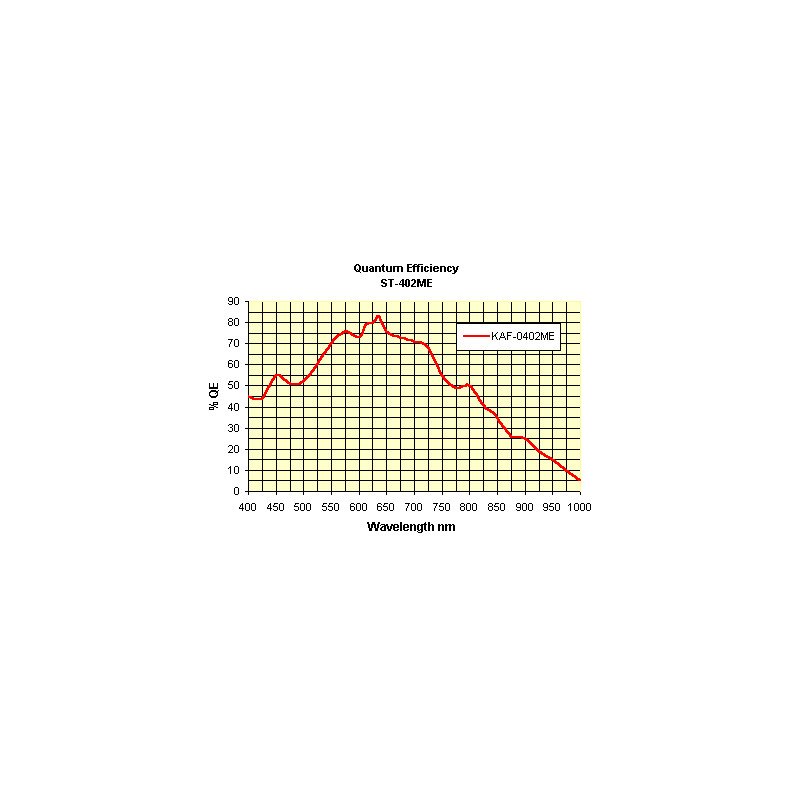

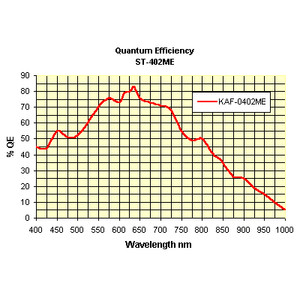

These cameras have a photometric quality, even-illumination shutter for automatic dark frames. The low noise and extraordinary QE of these sensors make these cameras among the most sensitive CCD cameras available at any price. With a peak QE of nearly 85%, these cameras bow to no others when it comes to recording faint detail in dim objects. Simply put, there is nothing in their price range that can touch them for sensitivity.

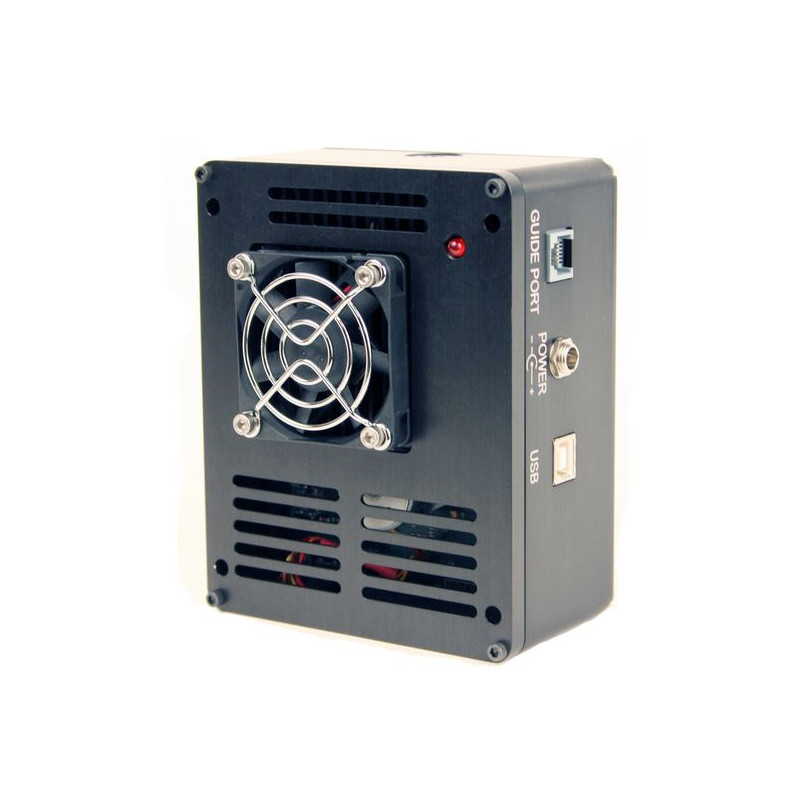

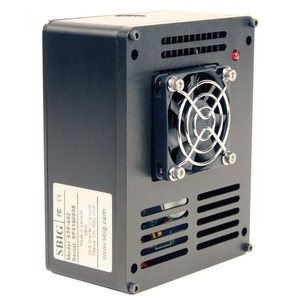

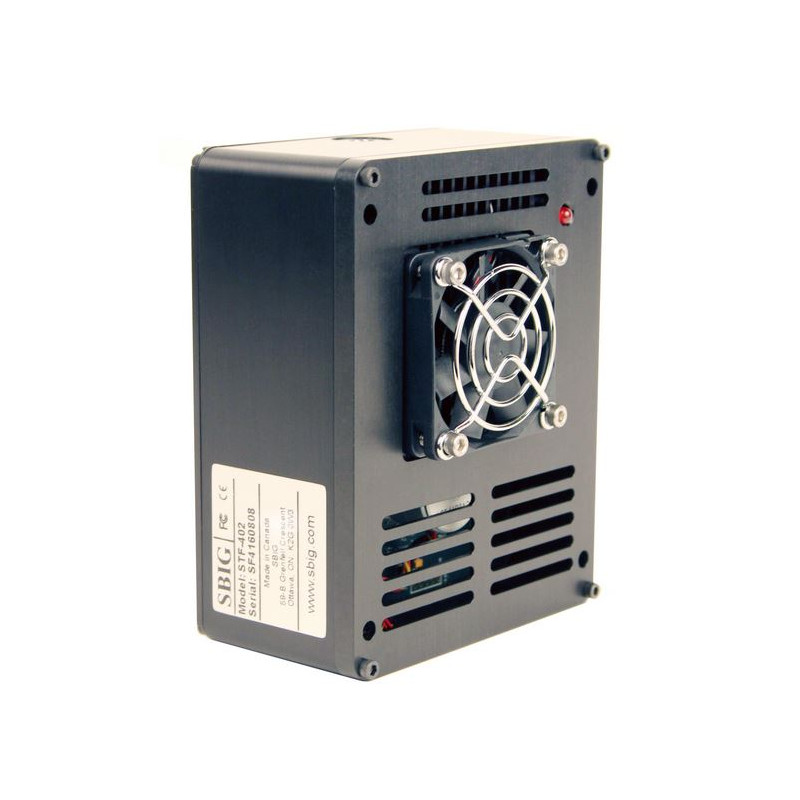

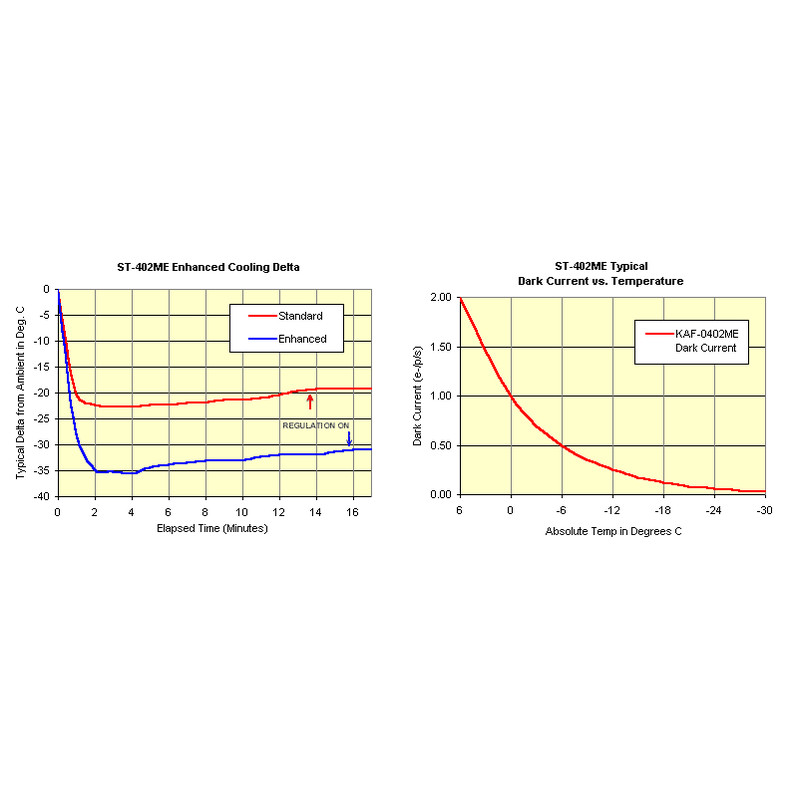

Enhanced Cooling: An enhanced cooling package is now standard equipment. The improvements consist of

  • a larger heat sink installed in the camera
  • a larger 50mm magnetic levitating fan and fan guard
  • a new back plate with openings to accommodate the extension of the fan housing and guard
  • and improved internal power supply for the TE cooler. No additional external power is required.

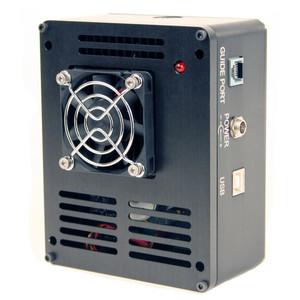

Image or Autoguide: Electronic relays provide standard autoguider outputs from the RJ-11 jack, so these cameras can be used as a highly sensitive autoguider with a larger field of view than most other autoguiders. The computer interface is USB 2.0. The high-speed readout rate is approximately 4.25 megapixels per second. A full frame, high-resolution image from the STF-402M will download in less than 1/4 second.

A regulated power supply is built into the camera so you can operate directly from a 12V battery or other unregulated 12VDC source. A universal power supply is included for operation from 100 to 240VAC.

The STF-402M is so sensitive one is virtually guaranteed to find a guide star in the field of view no matter where it is pointed using a modest finder scope. This makes the STF-402M not only an excellent educational camera but a sought after camera used to guide larger scopes.
