Mikroskopie > Mikroskope > Aufrechte Mikroskope > Hellfeldmikroskope > Euromex > bScope > Euromex Mikroskop BS.1153-PLi, trino, 40x-1000x
Artikel-Nr.: 55370

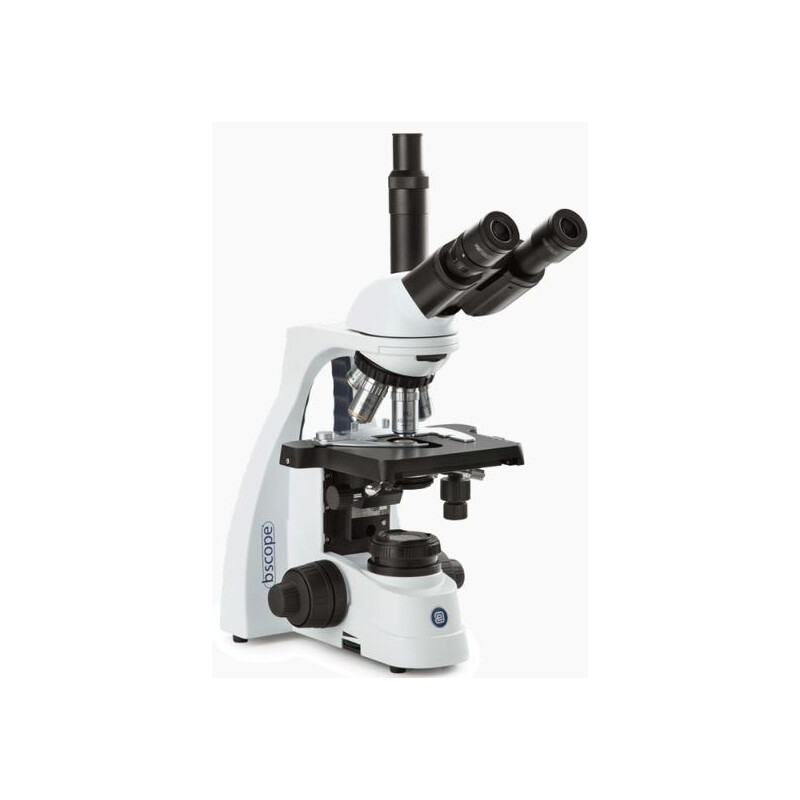

Mikroskop BS.1153-PLi, trino, 40x-1000x

versandfertig in 3-5 Wochen + Laufzeit


Mehr über die Serie bScope...

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.


Versatile and evolutive!

The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Besides excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field and phase contrast.

The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage

  • Versitale and evolutive microscopes
  • Robust and attractively priced microscope
  • HWF 10x/20 mm eyepieces
  • E-plan, E-plan IOS and Plan IOS objectives for bright field and phase contrast
  • Rackless integrated X-Y mechanical stage
  • 1.5 W LED illumination with rechargeable batteries
  • Cable Storage System
  • Integrated carrying grip

EYEPIECES: High wide field HWF 10x/20 mm secured eyepieces with 20 mm field of view (Ø 23.2 mm tube)

HEAD: The bScope is equipped with a Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes. Binocular and trinocular models comes with a diopter ± 5 adjustment on left eyepiece. The interpupillary distance is adjustable between 48 to 76 mm. The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of the eyepieces in a high and in a low position. The trinocular head comes with a Ø 23.2 mm tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging

NOSEPIECE: Revolving and reversed ball-beared quadruple or quintuple nosepiece

OBJECTIVES: The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives

• Bright field models: E-Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S60x/0.85 and S100x/1.25 oil immersion objectives

• Phase contrast models: E-plan Phase, E-plan Phase IOS infinity corrected, Plan Phase IOS infinity corrected 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives

All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING: Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control

STAGE: The bScope is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder. The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with new purchased microscopes

CONDENSER FOR BRIGHTFIELD: The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder

CONDENSER FOR ZERNIKE PHASE CONTRAST: The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for bright field contrast. Phase contrast objectives in either EPL-PH, EPL-PHi or PL-PHi phase contrast version. Supplied with centering telescope and green filter

CONDENSER FOR SIMPLE PHASE CONTRAST: The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40 phase contrast objectives OR a slider for 10/S40 phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for bright field contrast. Phase contrast objectives in either EPL-PH, EPL-PHi or PL-PHi version. Supplied with centering telescope and green filter

POLARISATION: The bScope has an integrated slot above the nosepiece for an optional polarization filter

ILLUMINATION: The microscopes of the bScope are equipped with a 1.5 W NeoLED adjustable illumination system for increased light output and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available

KÖHLER ILLUMINATION: A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. Generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source. The Köhler illumination is optional for non-IOS models

NEOLED™ ILLUMINATION: The 1.5 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for world wide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime

CORDLESS USE: The optional rechargeable batteries turn the bScope into a cordless system

CSS – CABLE STORAGE SYSTEM: bScope allows users to easily insert the power cable into the backside of the instrument, prevents excess cable length for a safer working environment. Roll up the cable completely for easy storage

CARRYING GRIP: The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

ANTI-THEFT SLOT: At the back of the microscope; an anti-theft slot prevent the unauthorized appropriation of the microscope

PACKAGING: Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, tools, a spare fuse, white filter, user manual and 5 ml immersion oil.

Phase contrast models are supplied with green filter and centering telescope


  • Trinocular
  • HWF 10x/20 mm eyepieces
  • Rackless integrated X-Y mechanical stage
  • Quintuple nosepiece
  • Plan IOS 4/10/S40/S100x
  • Köhler NeoLED™
  • 2-position swivelling ergo head

Technische Daten


Vergrößerung (-fach)
40 - 1000
Unendlich korrigiert
Okular (-fach)
EWF 10x / 20 mm (Ø 23.2 mm)
Anzahl der Objektive
Objektiv 1
4x / 0.10 (E-Plan)
Objektiv 2
10x / 0.25 (E-Plan)
Objektiv 3
S40x / 0.65 (E-Plan)
Objektiv 4
S100x / 1.25 (E-Plan)
Abbe N.A. 1.25 (Abbe 1,25 N.A. fokussierbar mit Irisblende)
Optisches System




Grob- und Feintrieb (200 x 1µm)
Kreuztisch (140 x 160mm (x/y 79 x 52mm))
Revolver (-fach)


Gewicht (g)
Breite (mm)
Länge (mm)
Höhe (mm)




Lieferanten Produktnummer
