Montures & Accessoires > Montures > Equatorial avec GoTo > Avalon > M-Due > Monture Avalon M-DUE StarGo2 Pro
N° d'article : 70064

Monture M-DUE StarGo2 Pro

Prix public : 16.000,00 $ Notre prix:
13.900,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à court terme
expédié sous 3-5 semaines + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

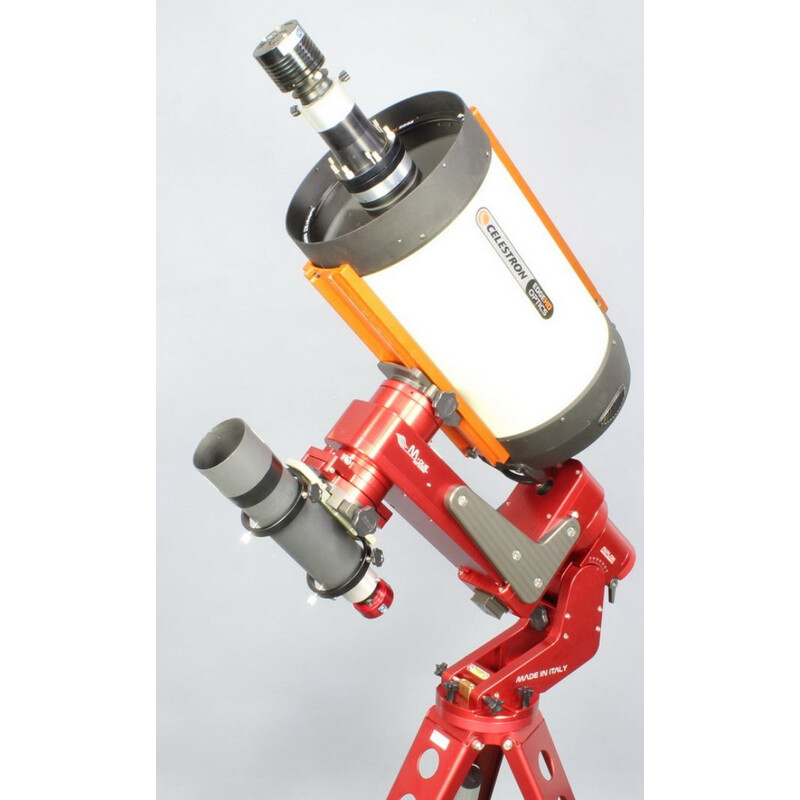

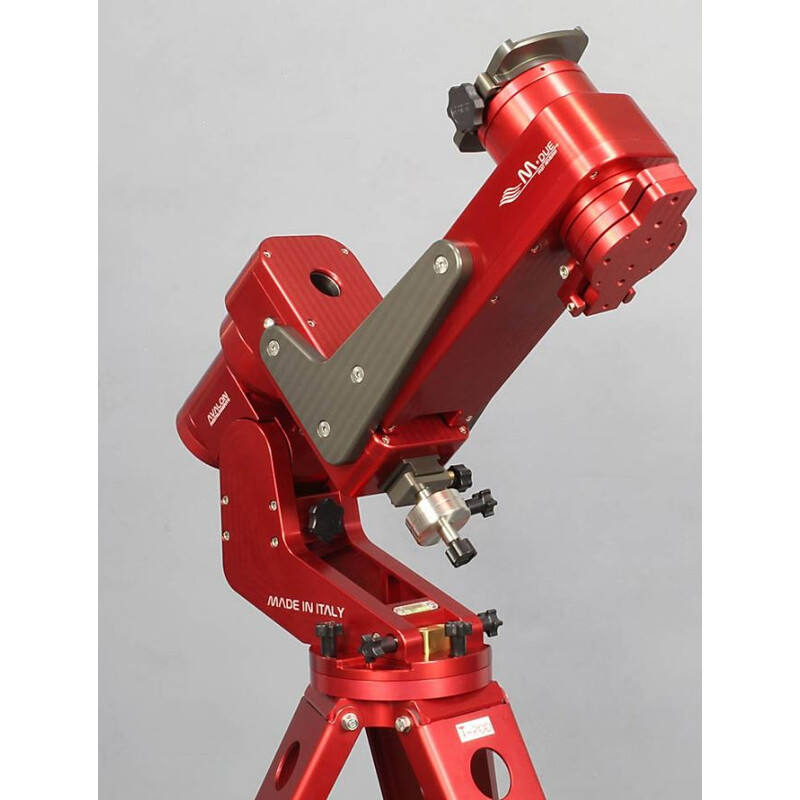

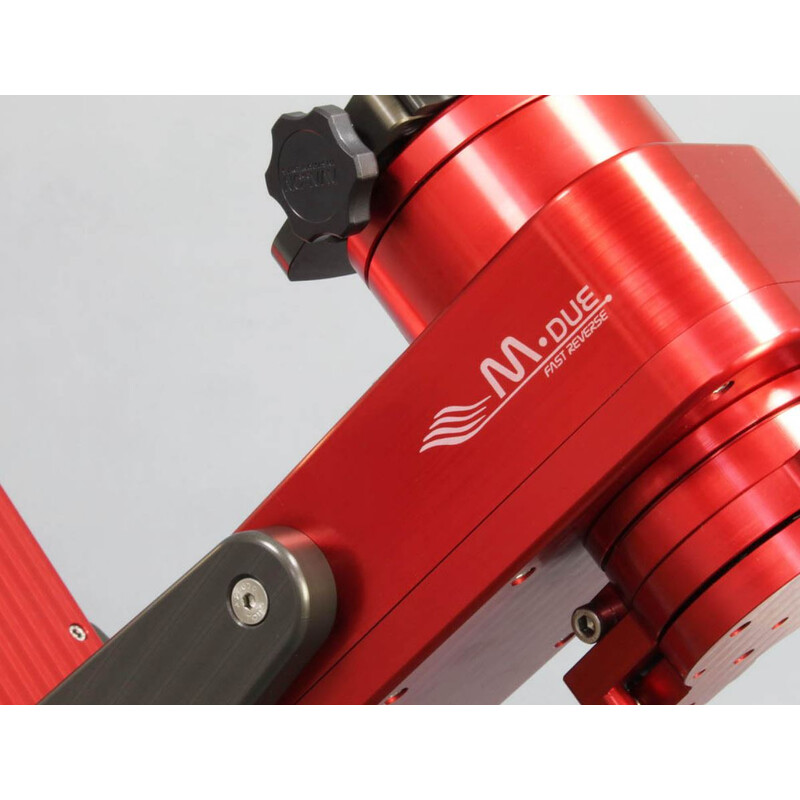

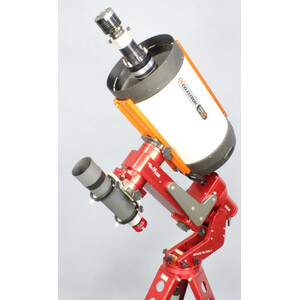

The M-Due Fast Reverse is a single arm fork mount devoted to deepsky imaging in the capacity range up to 25 kg in single telescope configuration and up to 32 kg in double telescope configuration.

The M-due design put together the M-uno and the M-zero mounts concepts, adding two very important features as the High Resolution ABSOLUTE ENCODER and the new StarGo2 Pro controller.

A robust mount base, an high payload capability and more then 6 positions available for the DEC arm on the RA axis. In this way it is possible to achieve the best balancing by using as less as counterweight possible.

HIGH RESOLUTION ABSOLUTE ENCODER ON BOTH RA & DEC AXIS

With the M-due mount, the Avalon Instruments exclusive Belt Drive System has been now improved by adding High Resolution ABSOLUTE ENCODER.

Slew Speed: up to 10° / sec

StarGo2 Pro

The mount is controlled by the new StarGo2 Pro, the controller comes with the following features:

  • Raspberry pi 4 based
  • Compatible with all the Linux astronomical software (K-Stars, Stellarium, Carte du Ciel etc.)
  • 4” Touch Screen Display on StarGo2 Pro case embedded

CONTENT PACKAGE

  • Mount Head with StarGo2 Pro

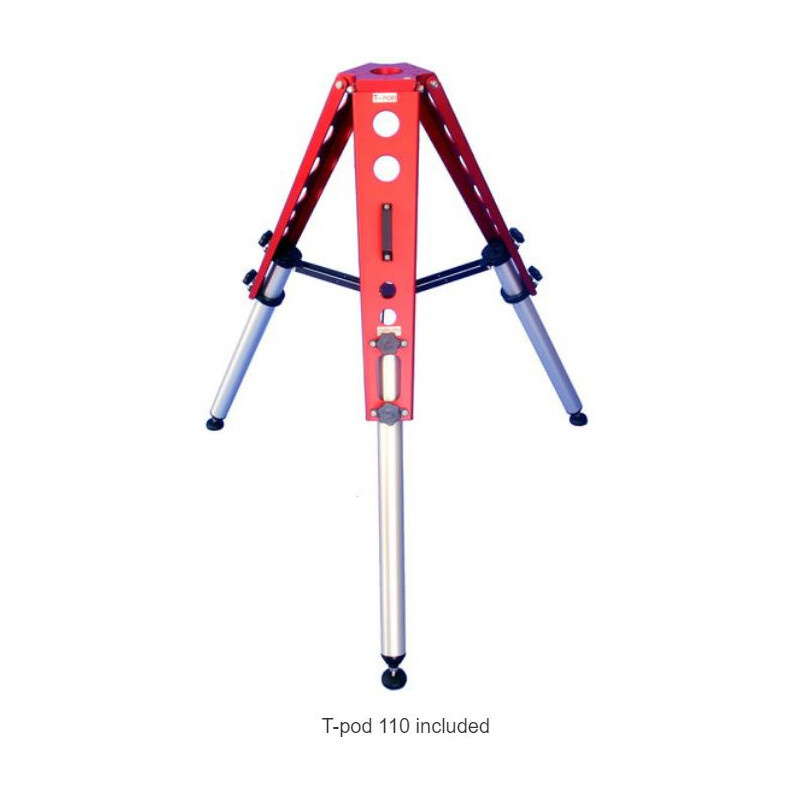

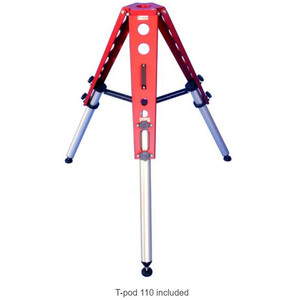

  • T-pod 110 Red with bag
  • T-Pod Plate
  • Second Telescope Adjustable System
  • StarGo2 Pro control Keypad
  • Keypad connection cable
  • Metric Allen Wrench key set

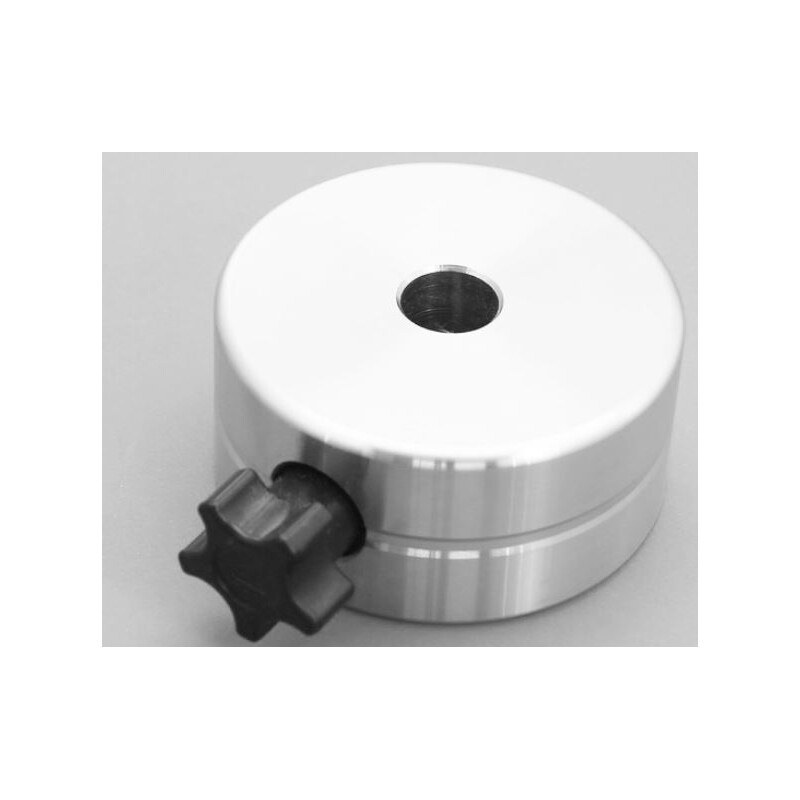

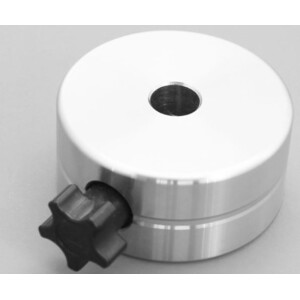

  • 0,5 kg Counterweight with support shaft
  • 1,4 kg counterweight

Spécifications

Capacité


Charge maximale supplémentaire (kg)
32
Type de moteur
Servomoteurs
Platine double
Losmandy & Vixen
Passe-câble
intern
Contre-poids (exemplaires)
1,4 & 0,5 kg (2)
Poids de la monture (kg)
10

Particularités


Système GoTo
oui
GPS
-
Interface Autoguider
oui
Raquette de commande
oui
Correction PEC
oui
Interface PC
oui (ASCOM)
Pilotage par PC possible
oui
Mobile en rotation
oui

Equipement


<p>trépied
Trépied
Tablette porte-accessoires
oui
Prise allume-cigare
non
Viseur polaire
oui
Contrepoids (exemplaires)
2
Sac de transport
non
Alimentation électrique
oui
Câble
USB

Trépied


Matériau du trépied
Aluminium et acier
Poids du trépied (kg)
7
Hauteur max. de trépied (cm)
110
Sac de transport pour statif tripode
oui

Données générales


Série
M-Due
Poids total (kg)
22,5
Type
Monture
Type de construction
Equatoriale

Domaine d´emploi


Utilisable pour des photos
oui
Utilisable (visuel)
oui
