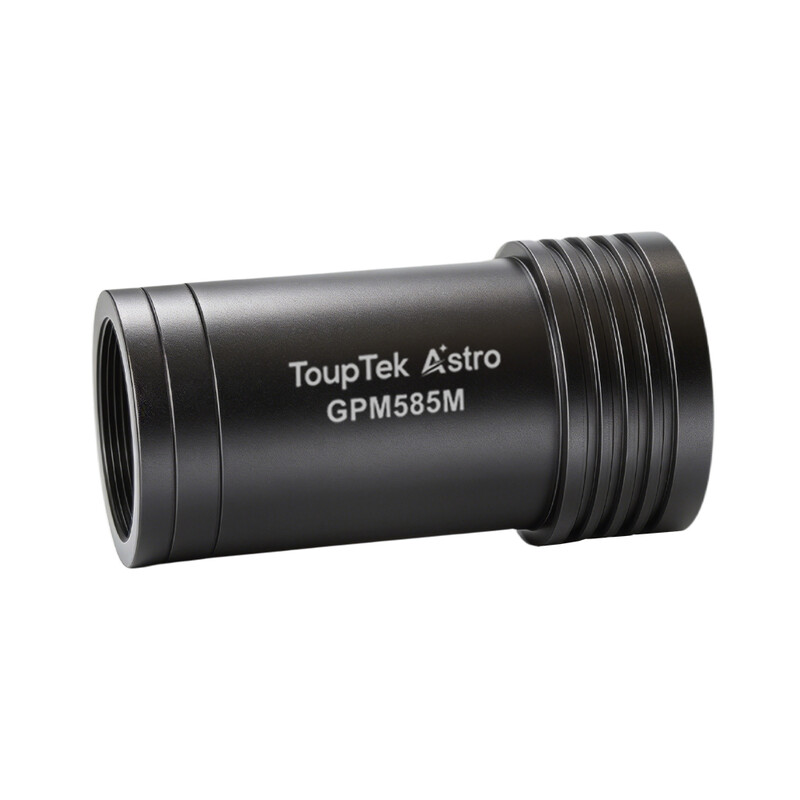

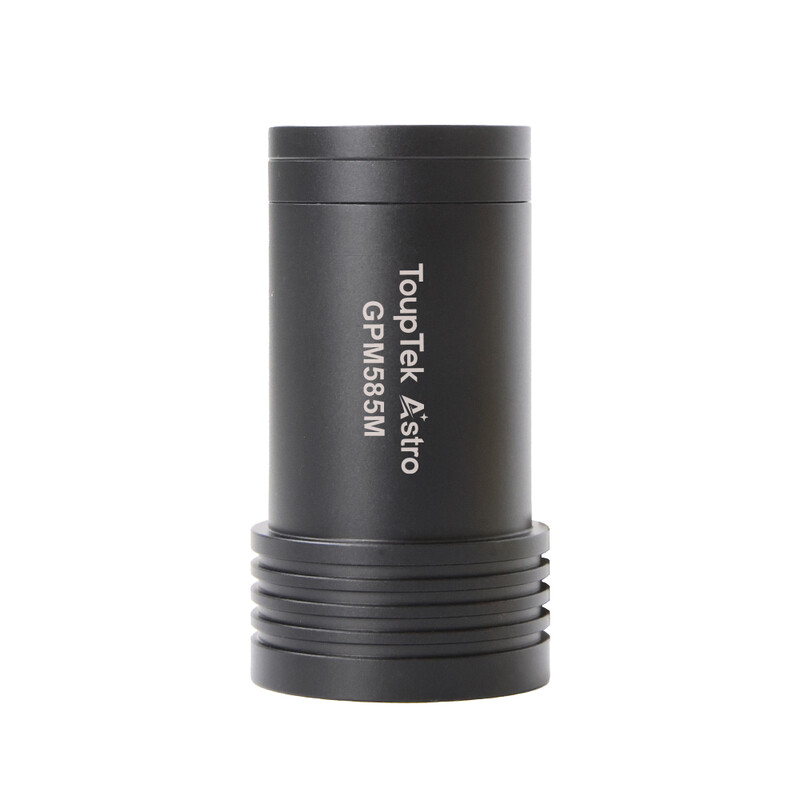

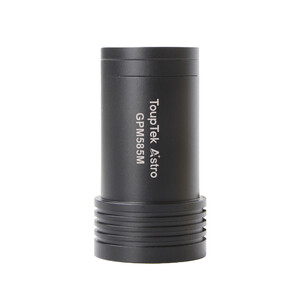

Imaging Beyond Vision: GPM585M Large Sensor High-Sensitivity Guide Camera
Deep-Sky Guiding · Infrared Imaging

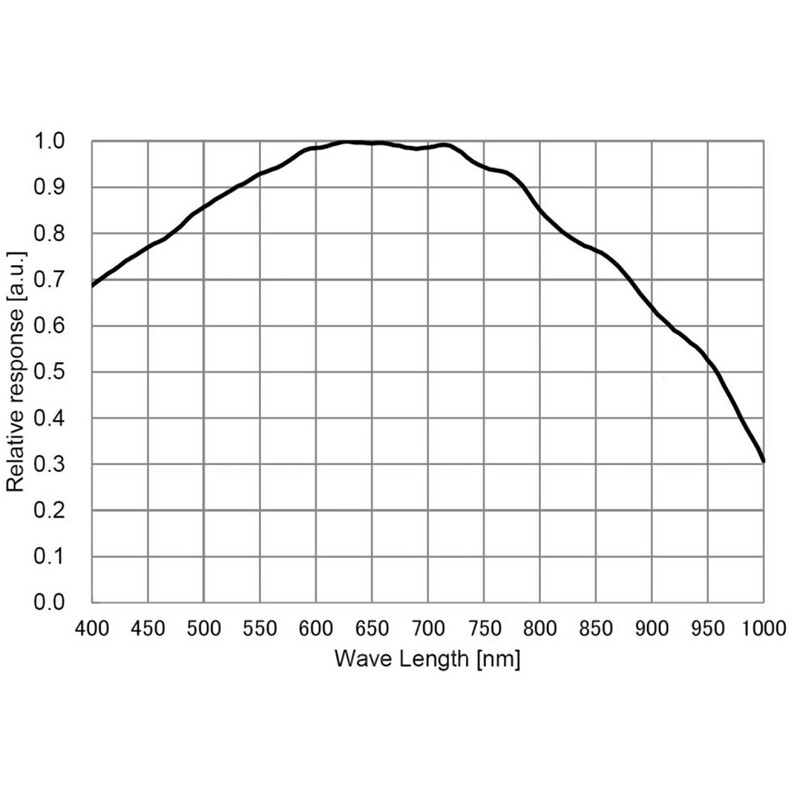

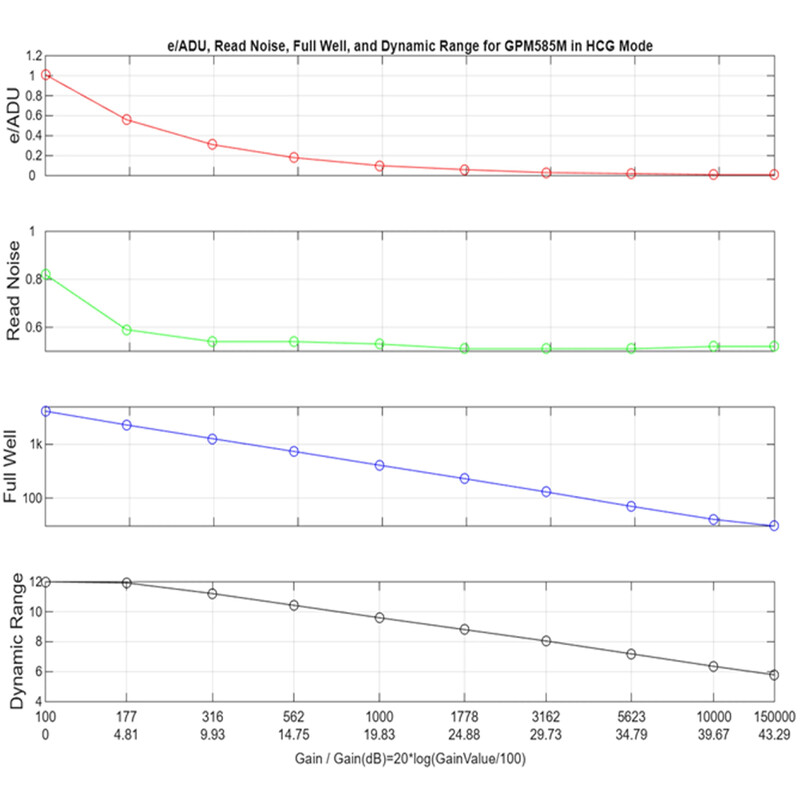

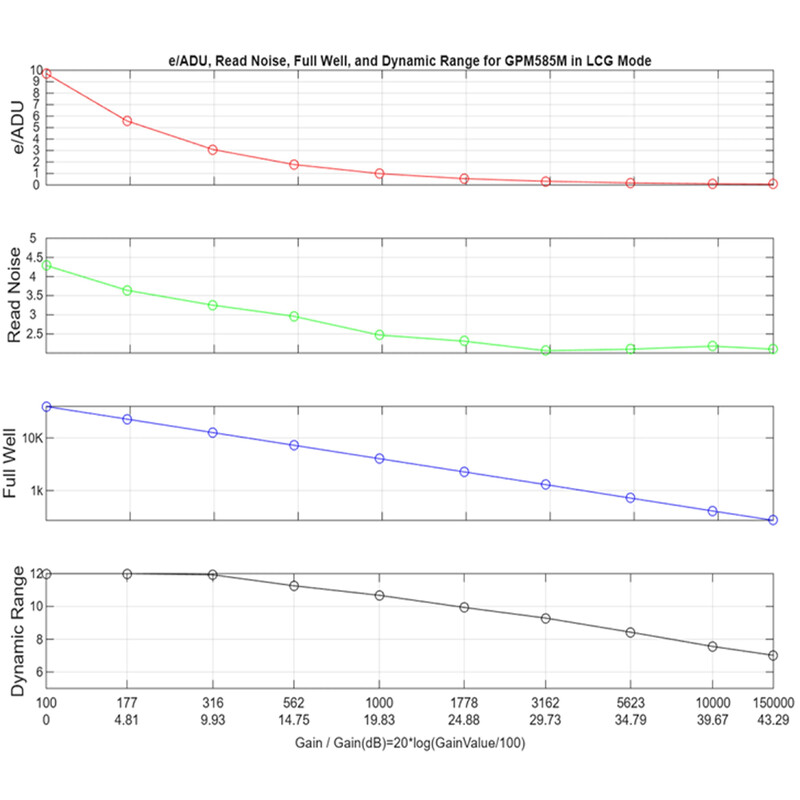

Designed for deep-sky autoguiding and infrared imaging, the GPM585M features Sony IMX585 monochrome back-illuminated CMOS sensor (1/1.2-inch, 2.9 μm square pixels, 3840×2160 resolution). It excels in sensitivity, dynamic range, full-well capacity and read noise, with great infrared-band response ideal for infrared Milky-way capture in heavily light-polluted cities.
High-Performance Readout
The GPM585M incorporates a native 12-bit ADC delivering 4,096 grayscale levels for richer tonal detail compared to conventional 8-bit output. Supported by hardware ROI, it achieves higher frame rates when capturing smaller regions, perfectly suited for high-speed autoguiding targeting guide stars. Additionally, software-based digital binning ranging from 1×1 to 8×8 stacks or averages adjacent pixels to boost signal-to-noise ratio. This function proves particularly useful for faint-star guiding, enhancing guide-star signal strength and supporting stable guiding lock.
Unlock Infrared Possibilities

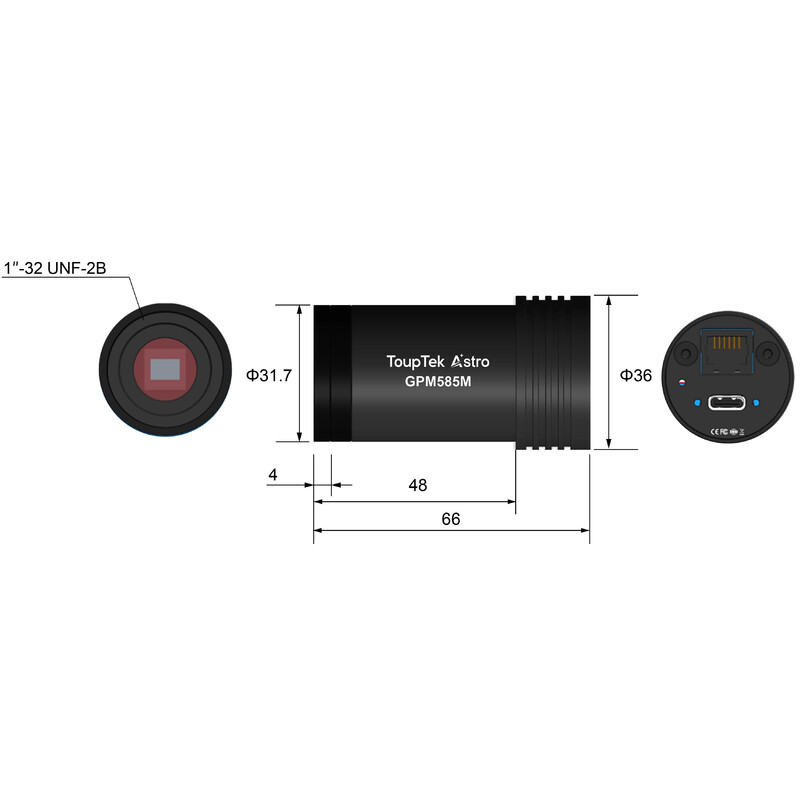

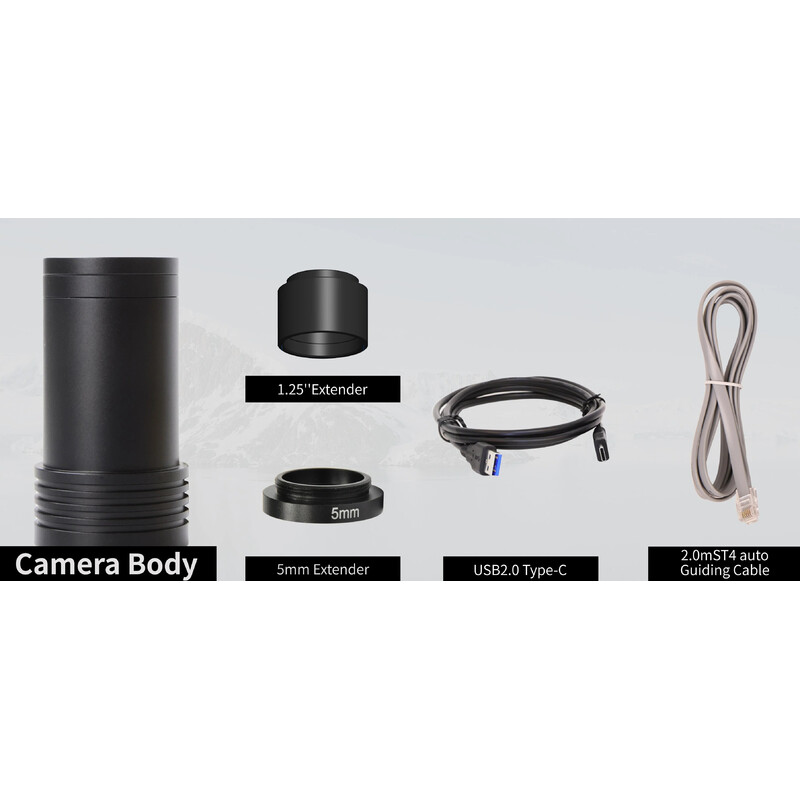

The GPM585M is fitted with an AR-coated protective window. The original window measures 19 mm in diameter and 0.55 mm in thickness, and is secured within the adapter by a retaining ring. For expanded infrared imaging, the camera’s front window can be easily removed and replaced with a user-selected filter. Compatible third-party filters may be 19‒22 mm in diameter and approximately 1 mm thick, making it easy to adapt the camera for infrared imaging applications.
Built-in Frame Buffer
Ensures stable data transmission and effectively reduces amp-glow, maintaining maximum frame rates even with multiple cameras operating simultaneously.
Software Applications
The GPM585M supports control via the StellaVita app and can be connected using the native ToupSky software. It is also compatible with ASCOM, INDI, and DirectShow SDKs. If third-party software is compatible with these SDKs, you can download the corresponding drivers from the ToupSky Astronomy official website and install them into your third-party software.
