Astrophotographie > Appareils de prise de vue > Starlight Xpress > SXVR-H > Caméra Starlight Xpress SXVR-H9 - Imageur CCD mono
N° d'article : 12407

Caméra SXVR-H9 - Imageur CCD mono

1.780,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à long terme
Cet article n'est plus disponible + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

SXVR-H9

  • Large, high resolution 'Exview' CCD chip, with 1,447,680 x 6.45uM pixels in a 9 x 6.7mm array

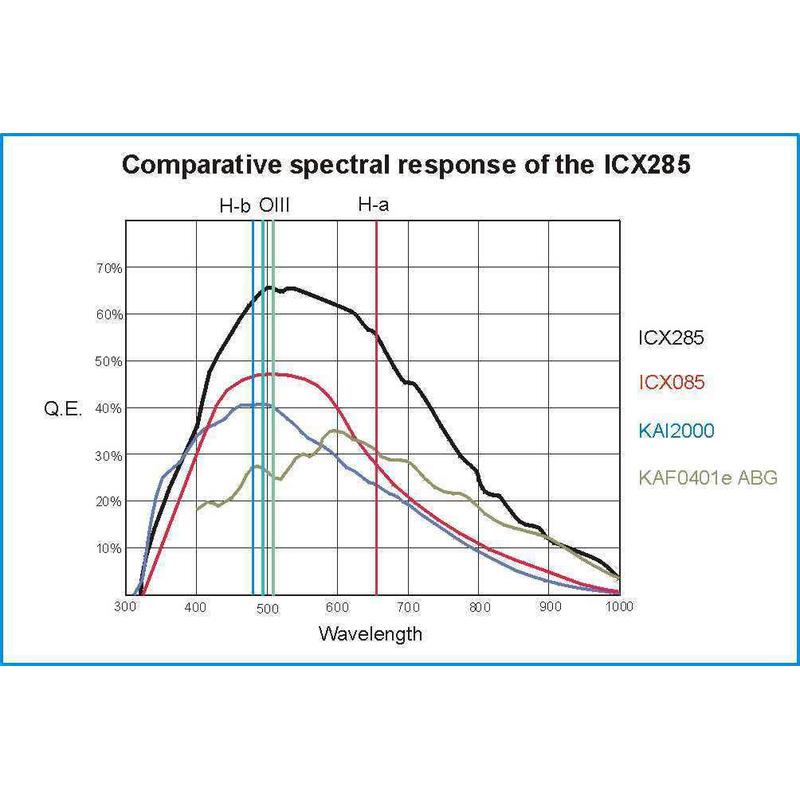

  • Exceptionally high QE over an extremely wide spectral range from near UV to deep IR
  • Exceptionally low dark signal - No dark frames necessary for most deep sky objects
  • Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area

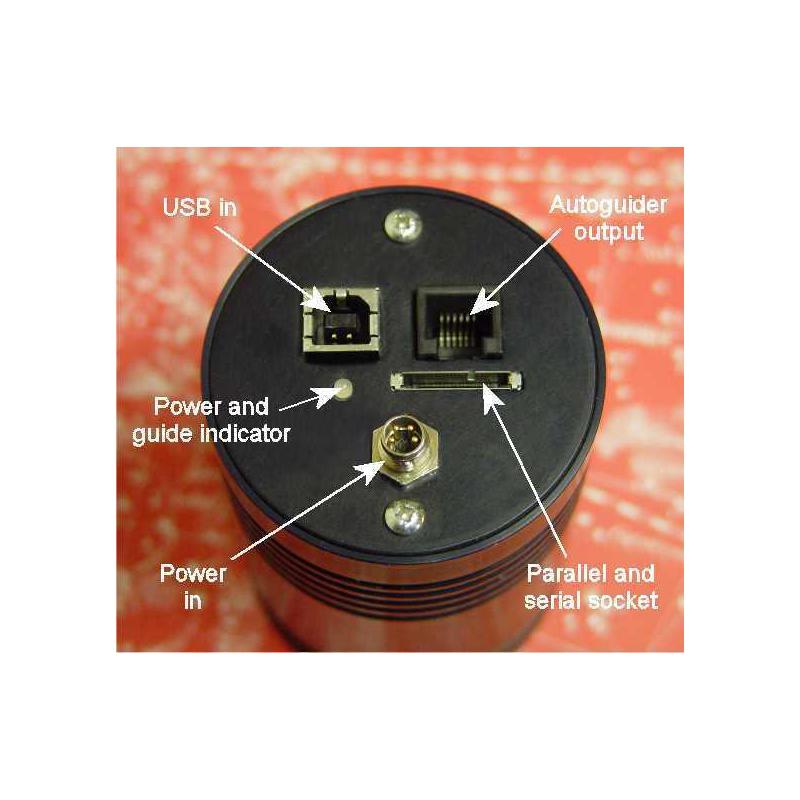

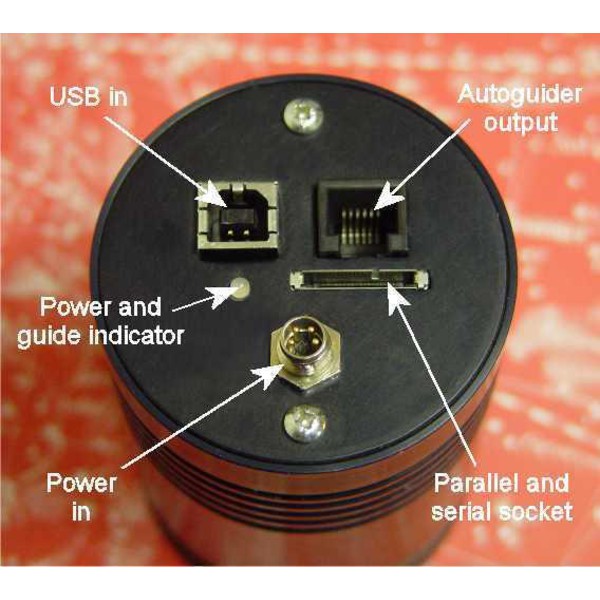

  • Built-in very high speed USB 2.0 interface for sub-1 second downloads
  • Built-in autoguider interface and output - compatible with the optional dedicated external guide camera
  • Built-in dual serial ports for accessory control - directly drive filter wheels, GOTO 'scopes etc.
  • Single USB cable control for all features - get rid of that dangerous cable tangle!
  • Only ONE computer needed to control all of the devices and functions
  • Very low power consumption. Less than 1 amp at 12v DC

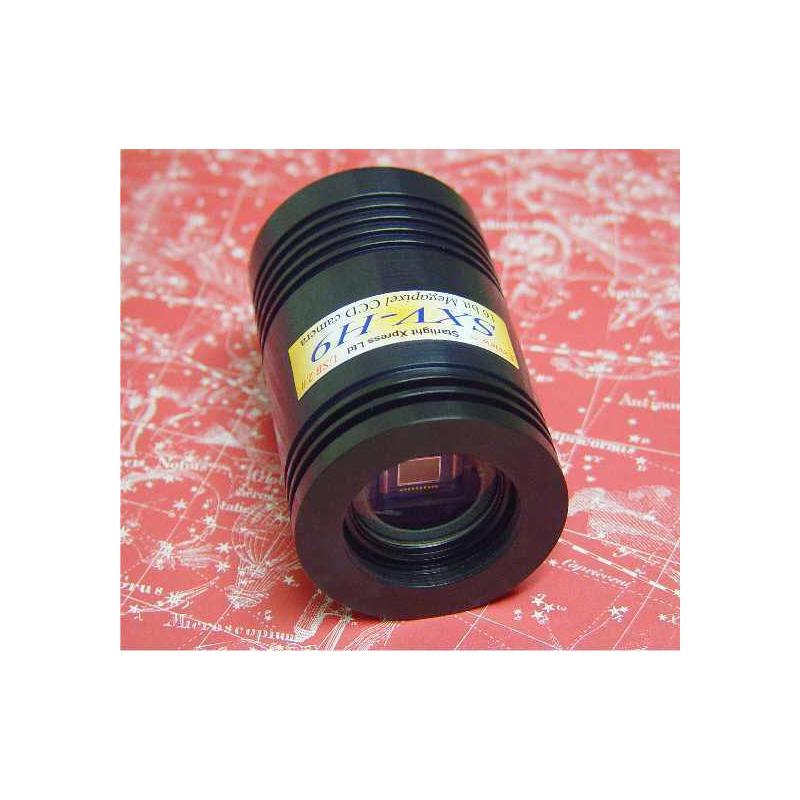

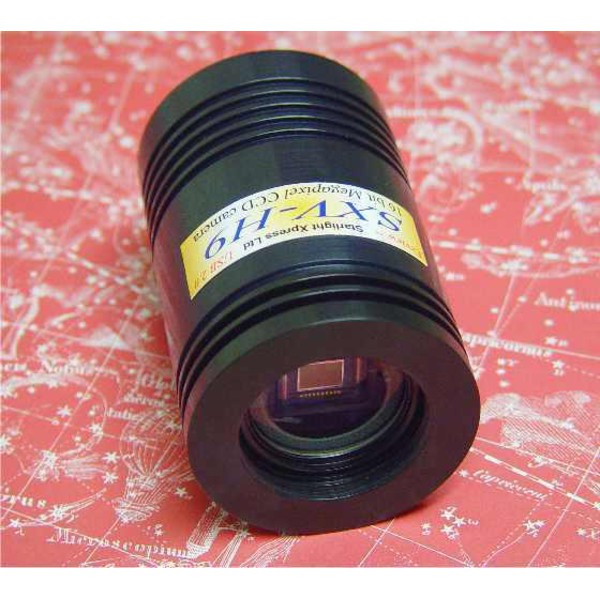

  • Compact and lightweight - only 75mm in diameter x 70mm long - less than 300 grams load on the 'scope!

Spécifications

Capacité


Type de senseur
Puce CCD
Mégapixels
1,4
Profondeur de bit (Bit)
16
Connexion (au téléscope)
1,25"
Type de caméra
Caméra CCD astro
Autoguider
oui
Interface
USB 2.0
Alimentation électrique
12 (USB)
Anti-blooming
oui
Taille en pixels
6,45x6,45
Taille de puce (mm)
9x6,7
Résolution photo (Pixels)
1392x1040
Bruit de lecture
7
Refroidissement
oui (Refroidissement thermo-électrique)
Différence maximale de refroidissement sous la température ambiante
30

Données générales


Série
SXVR-H
Longueur (mm)
100
Largeur (mm)
63
Hauteur (mm)
63
Poids (g)
350
Couleur
noir
