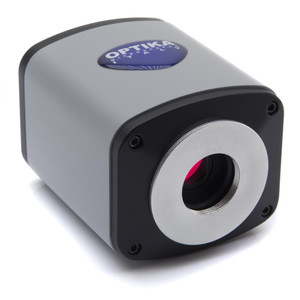

Optikam Pro HDMI - High-performance Full HD HDMI camera

Your digital unmet needs find in OPTIKAM Pro HDMI their solution.

The years of experience in microscopy have allowed Optika to develop a video/digital camera that meets and fulfills the diverse needs related to imaging.

OPTIKAM Pro HDMI is the solution. Digital camera equipped with a 6Mpixels sensor, an 8GB removable SD-card, an useful Mouse to draw the camera into the parameters set-up, C & C-short mount connections and dual USB / HDMI port.

OPTIKAM Pro HDMI offers the highest quality images through a simple connection to projector, TV monitor or PC monitor.

The Onboard software and the Mouse allow the user to view, select and modify the parameters of the camera with just one click, they also allows to show, compare and remove the captured images.

This innovative system provides live video images in high definition (Full HD 1080p), the ability to record photos and videos directly into the supplied SD card or connected to a PC, to exploit the full potential of the software OPTIKA IsView.

OPTIKAM Pro HDMI is the best solution for various applications.

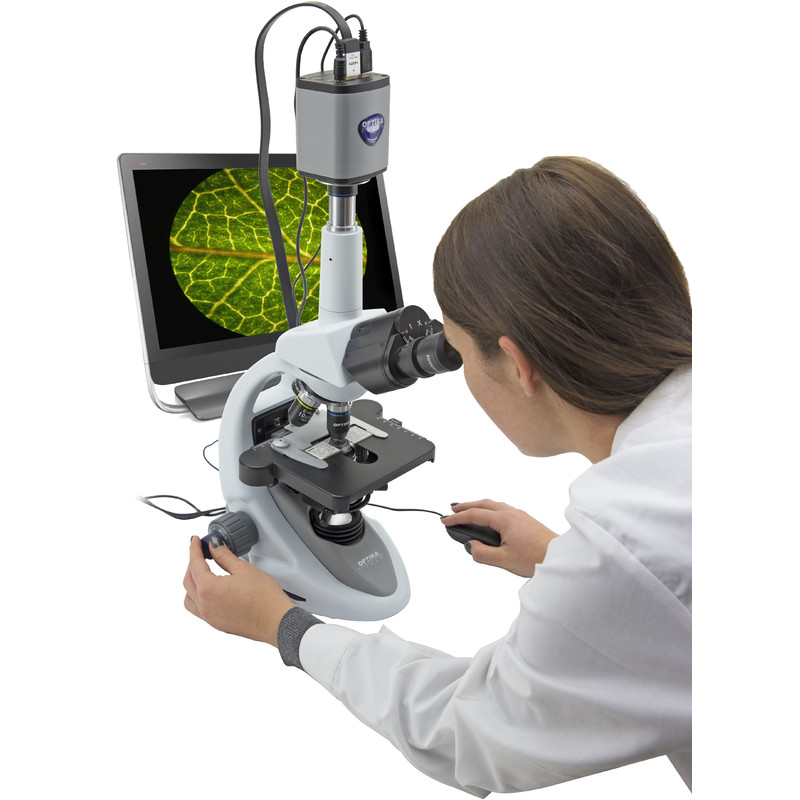

It’s largely used in the education field, in industrial quality control and in all laboratories.

Optikam Pro HDMI - 4083.13 - C and C-Short mount, Eyepieces Camera

Sensor: 1-2.8” Sony Cmos Sensor

Resolution: 3264 x 1836 (6 megapixels)

Image Acquisition details: Truecolor, two high-speed FPGA chipsets

Key Features: On/Off, all the rest of features are available through the ON-BOARD software.

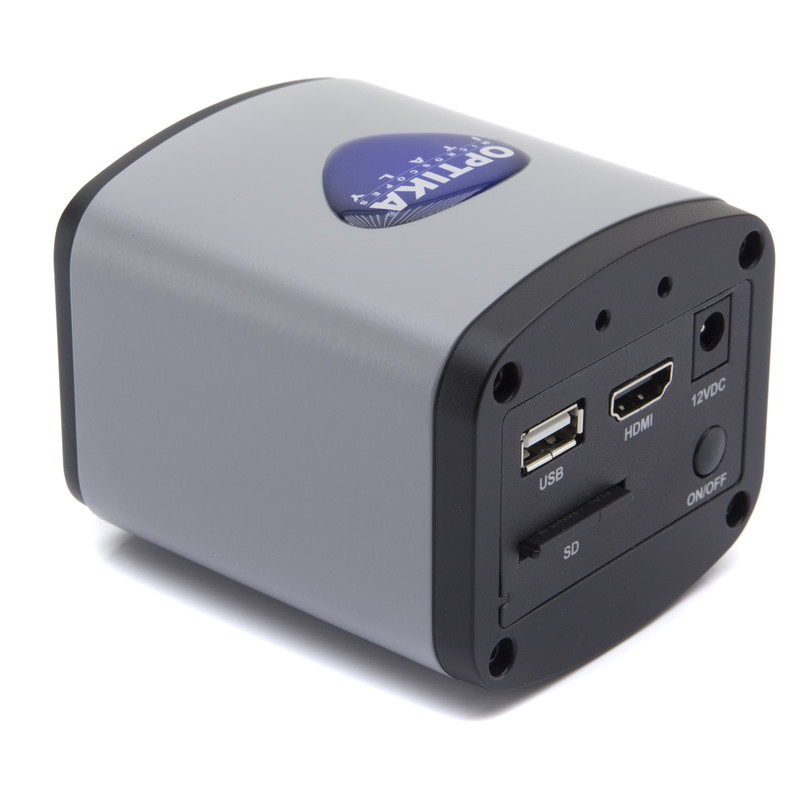

External Ports: HDMI, USB, SD-Card, SD-Card

Images: 3264 x 1836, Video: 1280 x 720

HDMI Resolution: 120 x 1080, 30fps

USB Resolution: 1920 x 1080, 1280 x 720, 30fps

USB Driver: Driver free

System requirements: HDMI, Windows XP, Vista, Win7, Win8, 32 / 64 bit, Win10

Software: Optika Vision Lite, Optika IsView

USB Capture features: Resolution. Brightness. Contrast. Tonality. Saturation. Gamma. White Balance.

HDMI features: Cross. Black/white. Contrast. Sharpness. Saturation.Brightness. Gamma. Image mirror. Image browse. Zoom. Image compare. Image flip. Image mask.

Power supply: 12V 2000mA

C-mount: Yes

C-short mount: Yes

Optical Adapter: None

Adapters for stereomicroscopes: None

Calibration slide: 76x24mm micrometric calibration slide.

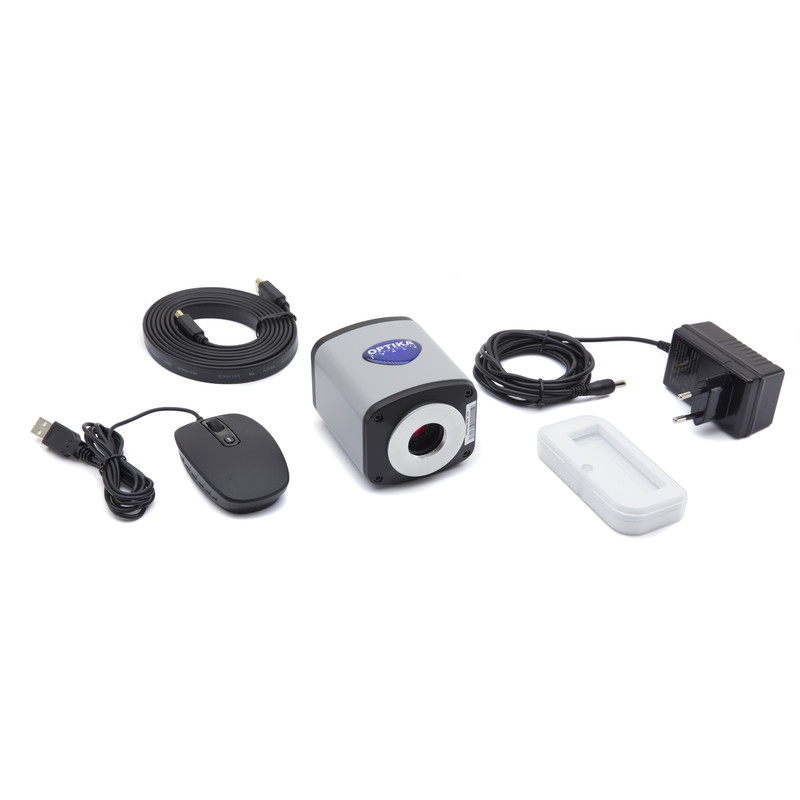

Accessories included: 8GB SD-Card. Mouse. HDMI cable. USB cable. CD-Rom.
