En savoir plus sur la série SZM...
Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.
Illumination
The microscope has no illumination system, but it can be used with external illuminators (halogen, LED or optical fibers) or with the following models:
- ST-151
- ST-153
- SZ-STL3Led
- ST-155
- ST-156
- SZ-STL8
Focusing The microscope can be used with the following models of stand: As an alternative it's possible to use focusing systems with a 76 mm diameter head holder.
- ST-150
- ST-151
- ST-152
- ST-153
- SZ-STL1H
- SZ-STL2H
- SZ-STL3Led
- SZ-STL3
- SZ-STL4
- ST-155
- ST-156
- SZ-STL8

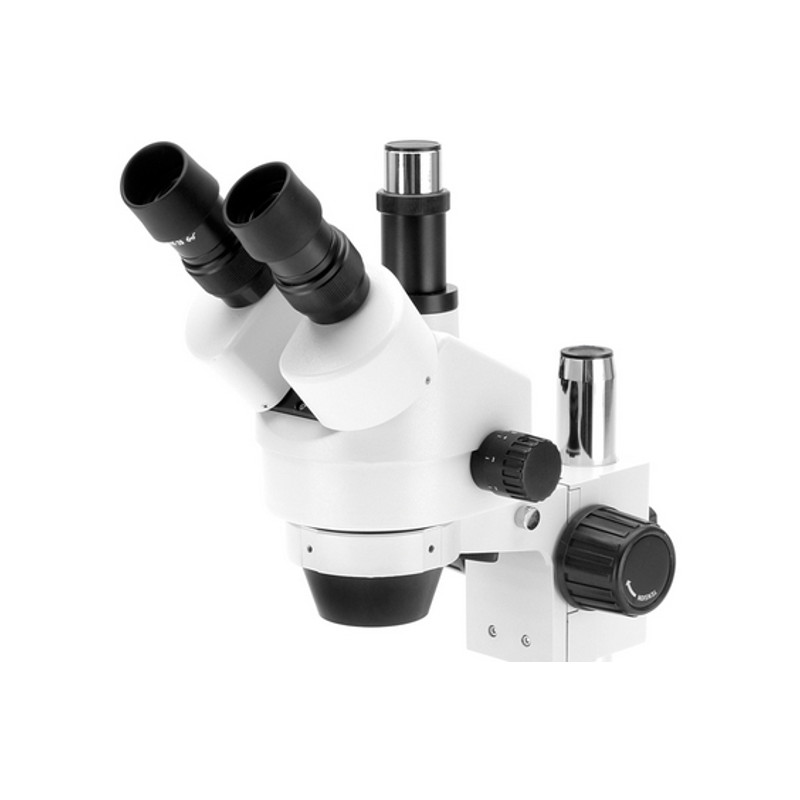

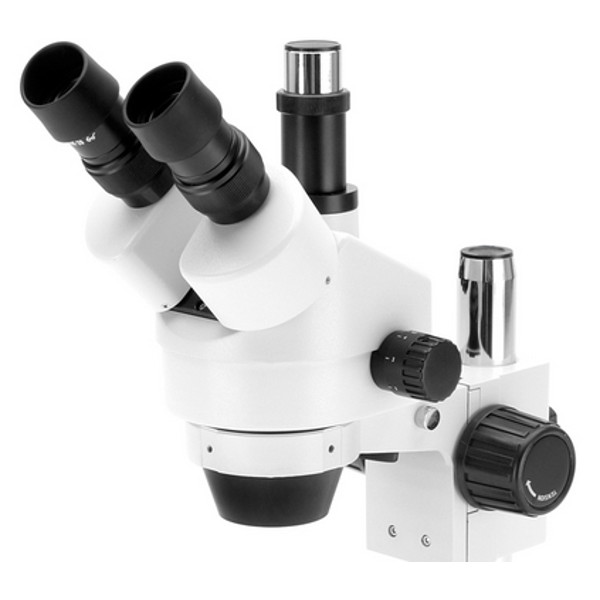

SZM-T - routine stereozoomhead
Head
- Trinocular 360° rotating and 45° inclined.
- Adjustment +- 5 diopters on both eyepieces.
- Interpupillary adjustment 51-75 mm.
Eyepieces
- Widefield eyepieces WF10x/20 with field number 20
Objective
- Parfocal achromatic objective 1X
- Working distance: 100 mm
- Zoom range: 0,7x - 4,5x (zoom factor: 6,43:1).
- Maximum magnification in standard configuration: 45X (can be increased to 180X).
Accessories
- Instruction manual and dust cover included.
