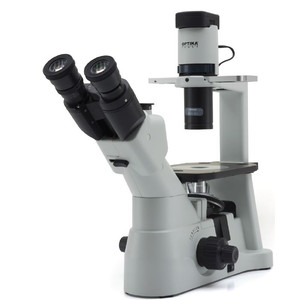

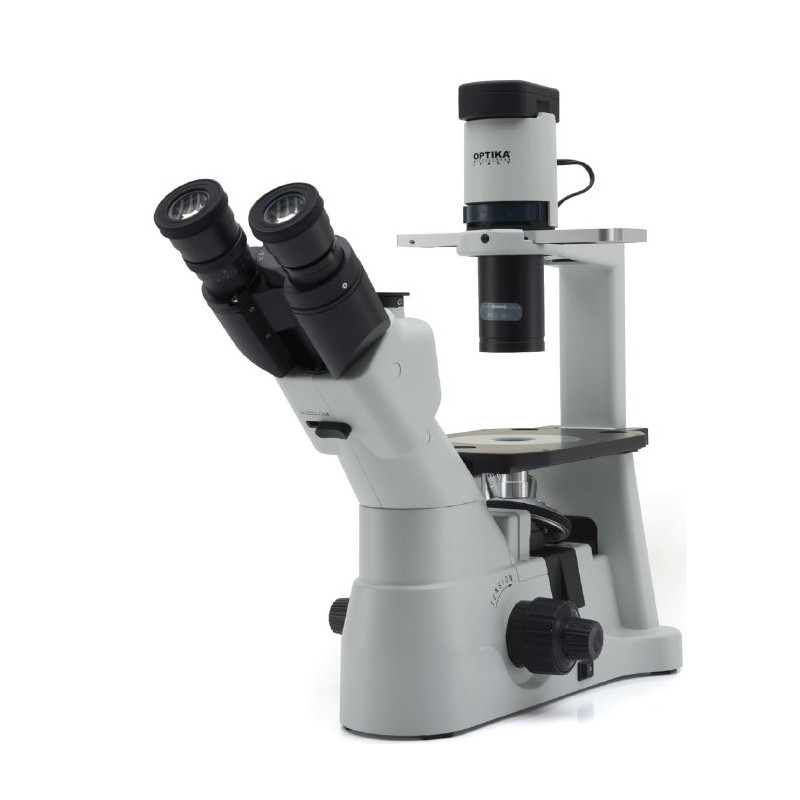

IM-3
Laboratory inverted microscope for research applications. Dye-cast frame, with high stability and ergonomy, for transmitted light observation.
TECHNICAL SPECIFICATIONS:
Illumination
Light source type X-LED8 with white 8W LED; light intensity control using a knob on left side of the frame.
Color temperature: 6300K
LED average life time approx. 50.000h
Voltage: 110/240Vac, 50/60Hz, 1A ; Fuse: T500mA 250V
Max power required: 13W
Observation Modes
Brightfield, phase contrast.
Focusing
Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen.
Adjustable tension of coarse focusing knob.
Stage
Fixed stage, dimensions 250x160 mm.
2 stage insert (glass and metal) with hole for small dimension specimens.
OPTIONAL:
- Mechanical stage mountable on the right side of the stage, total dimension=250x230 mm, X-Y translation range 120x80 mm.
- Metallic interchangeable inserts for slides, Petri dishes, Terasaki, multi-Well plates, etc.
- Pair of side extensions to expand the surface of the stage.
Nosepiece
Quintuple revolving nosepiece, rotation on ball bearings.
Head
Trinocular observation head, inclined 45°.
Diopter adjustment on left eyepiece.
Interpupillary adjustment 50-75 mm.
Eyepieces
Wide field eyepieces EWF10X/22 with field number 22.
Objectives
Infinity corrected optical system IOS (Infinity Optical System).
Plan-achromatic LWD objectives infinity corrected, for thickness 1.2 mm, made by following objectives:
-) Plan-achromatic IOS LWD 10XPh, N.A. 0.25, W.D. 7.94 mm
-) Plan-achromatic IOS LWD 20XPh, N.A. 0.40, W.D. 7.66 mm
-) Plan-achromatic IOS LWD 40XPh, N.A. 0.60, W.D. 3.71 mm
All objectives are treated with an anti-fungus treatment.
Condenser
LWD condenser, N.A. 0.30, working distance 72 mm.
The condenser can be removed to extend the working distance up to 150 mm.
Precentered slider with phase rings 4X/10X and 20X/40X.
Dimensions
HEIGHT: 495 mm
WIDTH: 230 mm
WIDTH WITH OPTIONAL MECHANICAL STAGE: 300 mm
DEPTH: 540 mm
WEIGHT: 9 kg
Accessories
Green filter, instruction manual and dust cover included.
L'avis de notre spécialiste :
Commentaire d'expert du Prof. Dr Guido Posern, directeur de l'Institut de chimie physiologique, Faculté de médecine, Université Martin Luther de Halle-Wittenberg :
J'ai une très bonne impression. Le montage est simple. Tout fonctionne, à l'exception de l'oculaire de réglage fourni (je ne vois rien avec celui-ci ; il s'agit peut-être d'un modèle incorrect, mais il n'est pas indispensable). Le contraste de phases est irréprochable dans les trois objectifs pour les cultures cellulaires standard de cellules de mammifères. Les plaques de phase sont correctement réglées et clairement étiquetées. Je n'ai pour l'instant constaté aucun inconvénient par rapport à nos autres appareils, dont certains sont nettement plus chers. Le champ clair n'est pas très pertinent pour nous, mais il semble fonctionner correctement. Il reste à voir si l'appareil résistera à une utilisation par des étudiants, mais jusqu'à présent, il semble solide et simple à utiliser.
Conclusion : un excellent microscope pour la culture cellulaire standard dans la recherche, avec un excellent rapport qualité-prix.
