Microscopie > Microscopes > Microscopes inversés > Optika > IM-5 > Microscope inversé Optika IM-5MET, MET trino, invers, 10x24mm, AL, Halogen, 12V/100W w.o. objectives
N° d'article : 75707

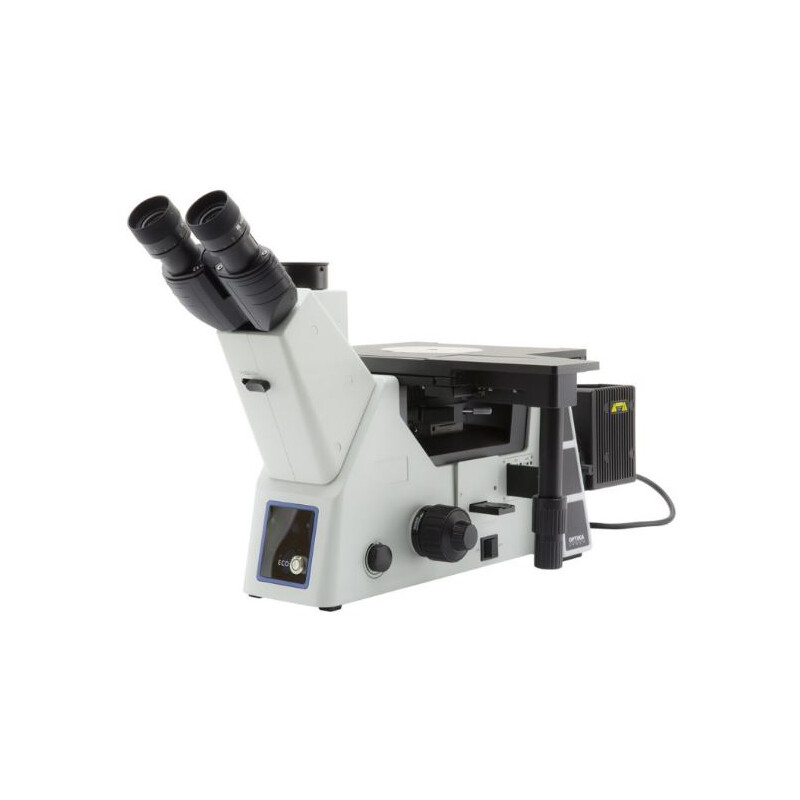

Microscope inversé IM-5MET, MET trino, invers, 10x24mm, AL, Halogen, 12V/100W w.o. objectives

Prix public : 9.600,00 $ Notre prix:
8.600,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à long terme
expédié sous 6-10 semaines + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

IM-5MET

Head: Trinocular (split ratio: 100/0, 50/50), 45° inclined.

Dioptric adjustment: Both eyepieces.

Eyepieces: WF10x/24 mm, high eyepoint, secured by screw and with retractable rubber cups.

Epi-illumination & filters: Halogen 12 V/100 W with brightness control. With field and aperture diaphragms, polarizer and analyzer filters.

Nosepiece: Quintuple ball bearings revolving nosepiece, reversed.

Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment.

Specimen stage: Mechanical stage, 240×250 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Objectives (not included)

To be chosen among:

M-1171 – M-1172 – M-1173 – M-1174 – M-1175 – IOS LWD U-PLAN F MET objectives

M-1180 – M-1181 – M-1182 – M-1183 – M-1184 – IOS LWD U-PLAN F MET BD objectives

M-1094 – M-1095 – M-1096 – M-1097 – M-1098 – IOS LWD U-PLAN MET BD objectives

M-1100 – M-1101 – M-1102 – M-1103 – M-1104 – IOS LWD U-PLAN MET objectives

Spécifications

Optique


Oculaire
10x/24
Type de lampe
Halogène
Condenseur
LWD, N.A. 0.3, W.D. 72mm
Éclairage
Lumière incidente et lumière transmise
Système optique
infini

Capacité


Température de couleur (K)
3500
fond clair
oui

Système mécanique


Type de construction
Trinoculaire
Mise au point
Mouvement rapide / fin (Graduation de 0,002 mm, avec fonction d'arrêt pour la protection de l'objet)
Posture d'observation (°)
vision à 45°
Platine porte-objet
Platine à chariot croisé (240x250mm)

Particularités


Platine de centrage
oui
Oculaire grand champ
oui (10x/24mm, plan)

Données générales


Couleur
gris/noir
Hauteur (mm)
400
Longueur (mm)
750
Largeur (mm)
360
Poids (g)
10000
Série
IM-5

Secteurs d´application


Médecine
oui
