Microscopie > Microscopes > Microscopes droits > Microscopes à fond clair > Optika > B-190PL > Microscope Optika B-192PL,bino, DIN, N-plan, 40-1000xO/W, X-LED
N° d'article : 71094

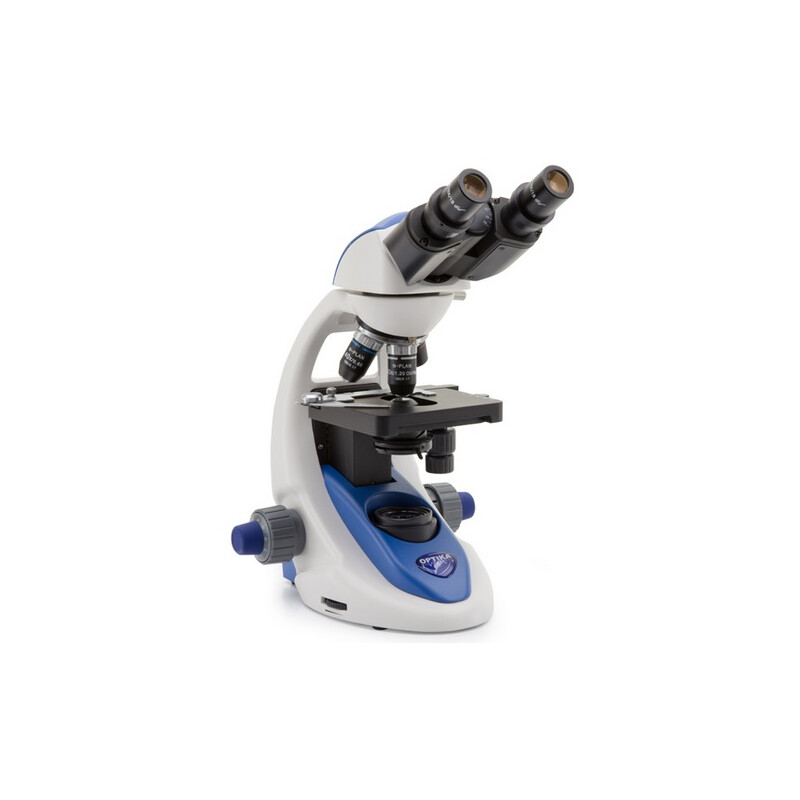

Microscope B-192PL,bino, DIN, N-plan, 40-1000xO/W, X-LED

Prix public : 680,00 $ Notre prix:
610,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à long terme
expédié sous 6-10 semaines + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

B-192PL

Binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. Slim and easy to carry, yet sturdy and resistant, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use

Specification

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 100x/1.25 (Oil/Water)

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

Spécifications

Optique


Echelle de l´image
1000
Nombre de objectives
4
Éclairage
Lumière transmise
Courbure de champ
Plan
Correction des couleurs
achromatique
Type de lampe
LED
Objectif 1
N-PLAN 4x/0.10
Objectif 2
N-PLAN 10x/0.25
Objetif 3
N-PLAN 40x/0.65
Objectif 4
N-PLAN 100x/1.25 (Oil/Water)
Système optique
DIN (160mm)
corrigé à l'infini
non
Grossissement
1000

Capacité


Lumière transmise
ja
fond clair
oui
Type de lampe
LED
Valeur du champ visuel
18
Grossissement
1000

Système mécanique


Type de construction
Binoculaire
Posture d'observation (°)
30
Platine porte-objet
Platine à chariot croisé
Revolver
4

Données générales


Série
B-190PL

Procédé de contraste


fond clair
oui

Secteurs d´application


Enseignements
oui
Loisir
oui

Domaine d´emploi


école
oui
Analyse des parasites
oui

Divers


Référence fournisseur
B-192PL
