Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.
OPTIKA B-1000 Series is the result of an extensive modularity combined with the state-of-the-art, exclusive and high performing X-LED8 lighting source (8 W), corresponding to over 100 W halogen bulb. This series features the outstanding brightness and incredible colour reproduction, to be a reliable solution for routine and research applications with up to a field of view of 24 mm.
Fully modular, B-1000 Series gives multiple options of configuration, from basic manual controls to a fully motorized version, including motorized nosepiece, stage and focus. Its capabilities go further, with the possibility to install the exclusive Automatic Light Control (ALC) for unparalleled performance. The selection of nosepieces, objectives, stages and condensers is extremely wide, offering several options to create the most suitable microscope for every need! B-1000 is also configurable as multi-head teaching discussion microscope, providing multiple observations up to 10 heads simultaneously. A perfect instrument for teaching, offering the main head complete of an LED movable pointer (RGB) to simplify the work of the main observer when needs to highlight and show some specific aspects of the specimen.
B-1000 is completely designed and made in Italy to ensure the highest quality and reliability. Our designers worked on original shapes and look, to guarantee the best ergonomics and stability.
WHEN ERGONOMY MEETS AN EXTRA STABILITY
A completely new design and a dye-cast aluminum stand offer solidity and durability, for the most demanding laboratory use. Low position focus and stage controls allow a fast and comfortable operation.
Frequently used controls as light intensity adjustment and diaphragm are also placed in the lower part of the stand and enable operation without having to take the eyes off the specimen.
State-of-the-art, exclusive and high performing X-LED8 lighting source (8 W), corresponding to over 100 W halogen bulb.
Low position focus and stage controls allow a fast and comfortable operation. Frequently used controls as light intensity adjustment and diaphragm are also placed in the lower part of the stand and enable operation without having to take the eyes off the specimen. All optical heads are equipped with high-point eyepieces and dioptric adjustment, for the best viewing experience.
Light under control
Intelligent control of the microscope illumination: the “AUTO-OFF” function automatically switches the light off after a user-selectable time period. “BOOST” gives an extra high level of illumination for light-demanding applications. “AUTO” allows to store an illumination level, and to maintain it throughout the inspection.
Since B-1000 use white LED illumination, they can maintain the same color temperature even if the brightness is changed. “AUTO” function automatically adjusts the light
intensity when the objective is changed or the aperture diaphragm is set to a different value.
STATE-OF-THE-ART ILLUMINATION SYSTEM
» Unmatched colour fidelity and brightness of your specimen
» Special technology, able to double the light intensity
» Constant pure-white colour temperature (6.300K)
» Money & energy saving
» Low power consumption, only 8 W
» LED long lifetime (50.000 hours = 20 years at 8 hours/day usage)
B-1000, model 1 for brightfield w.o. objectives
(Please choose your objectives from the accessories)
- M-1021B – Main body with manual focus
- M-1011 – Trinocular head
- M-1002 – PL 10x/24 Eyepieces
- M-1042 – Sextuple nosepiece with DIC slot
- M-1140 – Standard stage
- M-1151 – 1.20 N.A. swing-out condenser

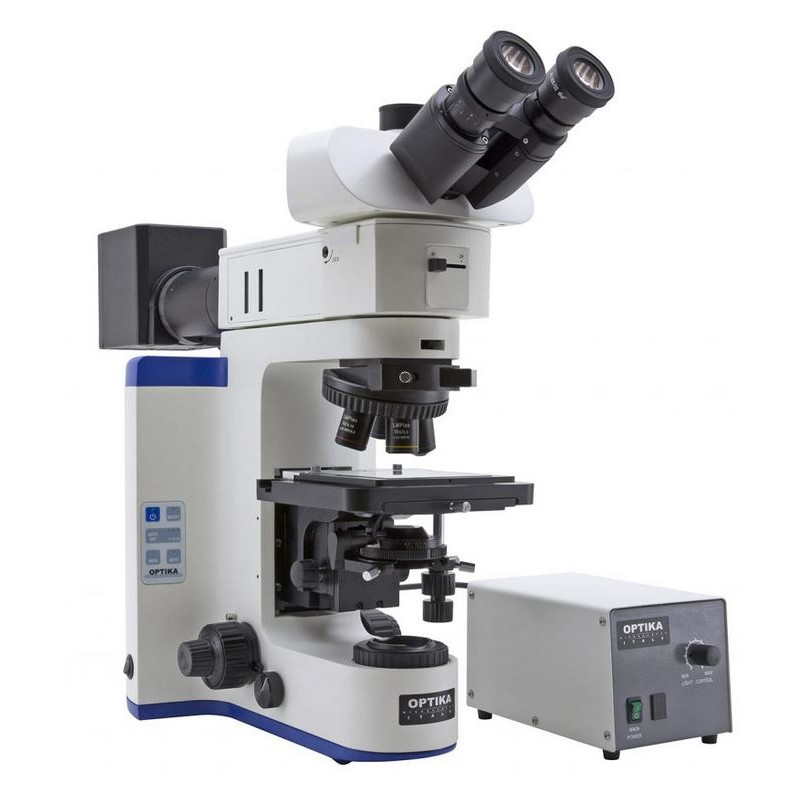

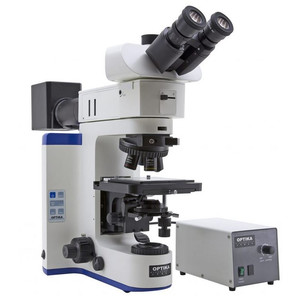

Metallurgical Research Microscope
Laboratory microscope for routine and research applications with dye-cast frame for high stability, excellent ergonomy and transmitted (X-LED8 system) and incident (100W halogen lamp) light observation. Fully modular, B-1000 Series gives multiple options of configuration, including manual or motorized system and two lines of MET objectives (one both for brightfield and darkfield).
Components B-1000MET, Model 2, (w.o. objectives)
- Microscope body M-1021M, focus, X-LED8, MET
- Microscope head M-1011, trino
- Eyepieces M-1002, EWF10x/24mm (2pc)
- Quintuble nosepiece M-1045, Darkfield, for MET objective, 3 Adapter f. RMS
- Metallurgic stage with glas insert M-1148
- 0.90 N.A. Swing out condenser POL M-1153
- Metallurgical Attachment M-1035
