BA410 Elite Series

Clinical & Lab Microscope Platform

The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.

A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation. The AUTO ON-OFF function with its energy-saving aspect improves lab safety: a final instrument check before closing time is no longer necessary. A light memory function, based on a coded 6-fold nosepiece, memorizes the light intensity of each nosepiece position. When changing to a specific objective, the last illumination setup of this position is recalled. Once coordinated, there is no need to adjust the illumination when changing magnification. For increased illumination power, a 100W Halogen version is available. The rackless stage concept, well known from BA210/BA310 Elite models, is now adopted in this flagship model. A ceramic stage insert for highest abrasion resistance guarantees a perfectly flat placing of the glass slide for a lifetime.

Main Features

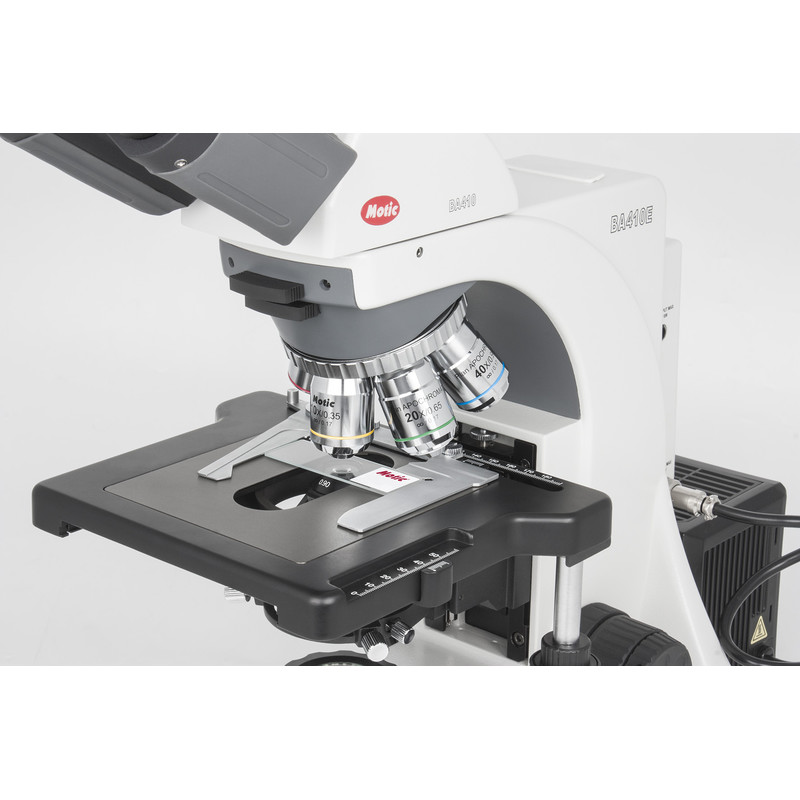

• Optional Plan Apochromatic lenses
• AUTO ON-OFF function
• Light memory function, coded 6-fold nosepiece

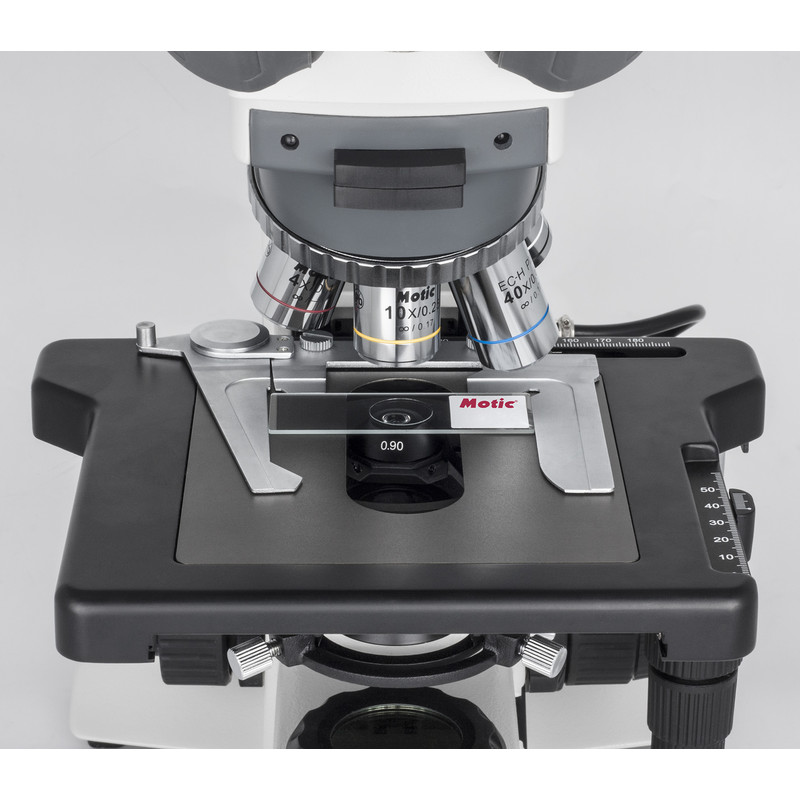

• Ceramic stage insert

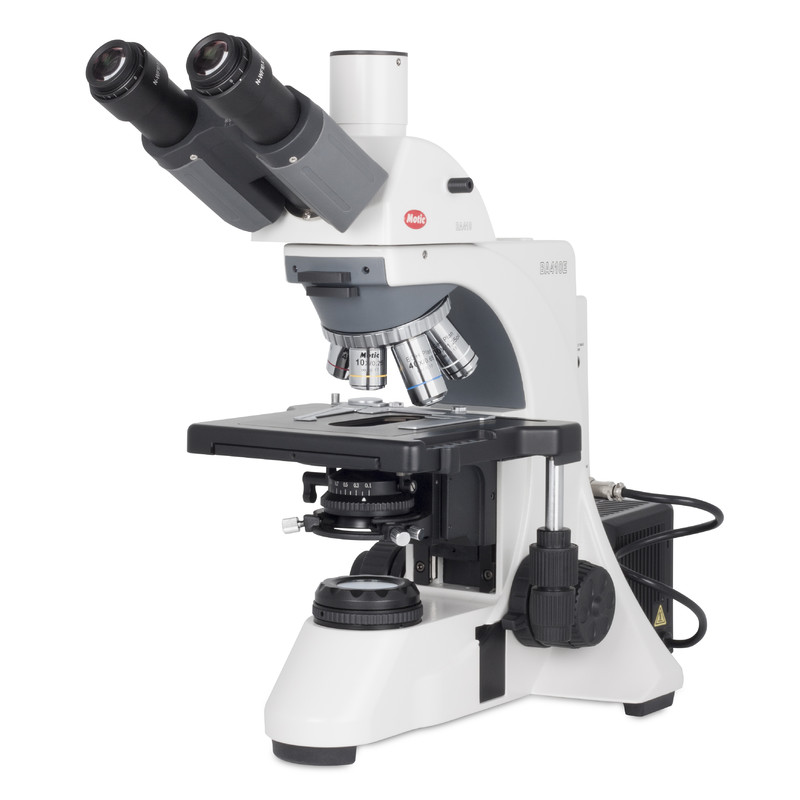

BA410E Trinocular Sextuple 100W

Specification

• Trinocular head Siedentopf type 30°, inclined, 360° rotating
• Widefield high eyepoint eyepieces N-WF 10X/22mm with diopter adjustment and rubber eyecups
• Reversed coded sextuple nosepiece
• CCIS Plan achromatic objectives EC-H PL 4X, 10X, 40X S, 100X S-Oil
• Coaxial coarse and fine focusing adjustment
• Low position rackless stage with ceramic insert and reversible right or left hand control
• Achromat swing-out condenser N.A. 0.90/0.13 with iris diaphragm
• Koehler illumination quartz halogen 12V/100W with external lamp house and intensity control
• Auto-OFF and Light Memory function
• Power supply 100V-240V (CE)

Delivery scope

• 45mm blue filter
• clear glass
• immersion oil (5ml)
• power cord
• allen hexagonal key
• vinyl dust cover
