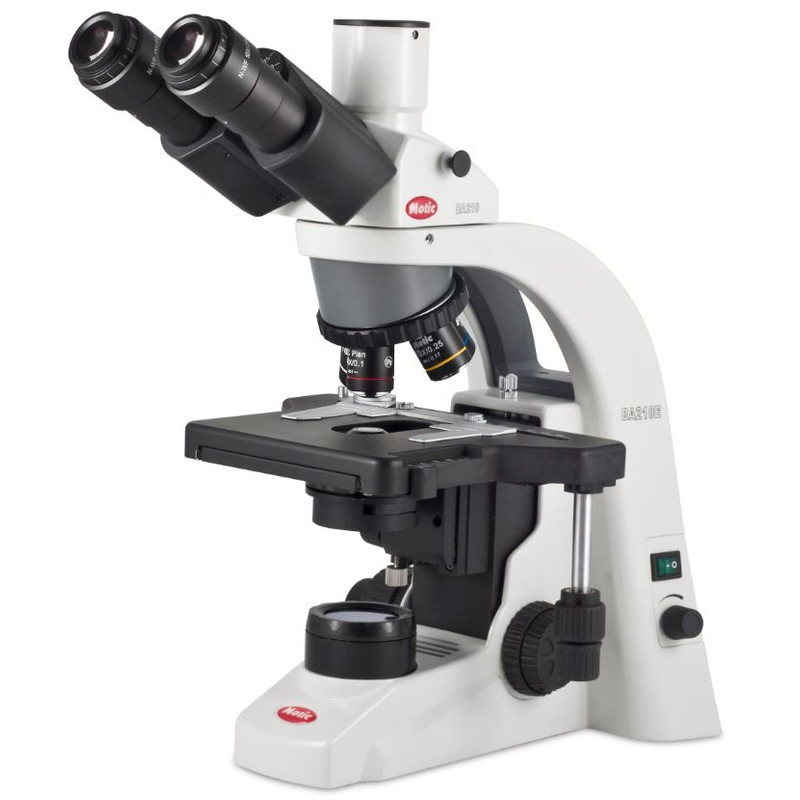

Microscope Motic BA210E, ELITE, Halogen, 4x-1000x, infinity, trino

N° d'article : 57972
Fabricant : Motic

1.430,00 $

TVA incluse
Description du produit
Spécifications
Avis clients
Accessoires recommandées
Téléchargements

Description du produit :

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

BA210 Series

Basic Biological Microscope

BA-210

The BA210 is designed for both educational and teaching environments from basic life sciences to medical applications. Through the Motic Infinity Optics (CCIS®), theBA210 delivers a new higher level of performance in education and training. Contrastmethods like Phase Contrast, Polarization and Darkfield are easily performed by using optional accessories.

BASIC BIOLOGICAL MICROSCOPE

Motic’s new BA210 is designed for both educational and teaching environments from basic life sciences to medical applications. The BA210’s standard configuration best meets the needs of the high school,College-University, and Medical school markets. Through newly formulated Motic Infinity Optics (CCIS®), the BA210 delivers a new higher level of performance in education and training.

The new BA210 Series

With the BA210 Motic is setting a new standard in microscope performance through improvements both in optical and mechanical features for the student level. Designed to be used in Educational life science, Medical and a variety of Biological applications, the BA210 is designed for ease of use and longevity due to Motic's complete understanding of the daily demands placed on the standard educational microscope. Student proof features, working together with a new generation of EF-N Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear visual and digital results. Whether using the new powerful 6V/30W Halogen stand or the 3W LED version, light consuming contrast methods like Phase contrast, Polarization or Darkfield are easily performed. Motic BA210 is a robust student instrument that brings professional, repeatable image quality results to all of its intended applications.

Objectives

To improve the overall optical performance of the BA210, Motic introduces a new generation of Plan Achromatic Objectives made of high quality optical glass; CCIS® EF-N Plan. These new lenses are now multi-layer coated for improved contrast to enhance images even with weak slide stainings. Together with a new tube lens, the result is a fully corrected, perfected intermediate image without colored fringes. The Trinocular BA210 gives digital access for even sharper imaging and improved digital output quality for professional results at student level.

Eyepieces

The new standard eyepieces, also made of high quality optical glass, N-WF 10X/20 with high-eyepoint for eyeglass wearers, provide consistent diopter adjustment for both eyes. This enables perfect usage of reticles for measuring, counting, etc. Standard lockable eyepieces prevent inadmissible removal and confirms Motic's dedication to student proof quality.

Eyepiece Tubes

Designed with an ergonomic viewing angle of 30o and incorporating an interpupillary distance of 55-75mm, the BA210 observation tubes guarantee fatigue-free viewing for hours. A large field of view (20mm) enables fast and comfortable screening. The trinocular tubes allow digital documentation and integration of each BA210 by using a wide variety of digital cameras, with a 20/80 light split for the trinocular exit. On special request, an eyepiece tube with 48-75mm interpupillary distance is available.

Condenser

To ensure the perfect height adjustment of the condenser, a condenser lock is integrated. While using phase/ darkfield sliders, the teacher can pre-set the condenser position to prevent potential student mis-adjustments.

Stage

The BA210 comes with a right hand control stage and a new slide holder which enables consistent sample movement across a 76x50mm range. The model also offers a hard coated surface, resistant against routine usage abrasion.

Illumination

The BA210 introduces a new collector lens assembly with a secure, screw-on holder for the frequently used Blue daylight filter, which is an integral part of the illumination package. The fixed cap prevents the filter from dropping when the instrument is stored. The BA210 offers multiple illumination options such as 6V/30W Halogen, 3W LED or a mirror.

Phase Contrast and Darkfield

Offered as an option, phase contrast is available for magnifications 10X and 40X, with the use of a Phase Contrast slider. Darkfield is possible with a separate DF slider (10X - 40X).

Polarization

Convenient and easy, the BA210 polarization system consists of a polarizer, placed on top of the collector lens, and the analyzer placed between the head and body.

Anti-Fungus Design

To protect the system from fungus growth in high-humidity environments, an anti-fungus treatment is applied to prolong the life of both microscope and objectives.

Standard Photomicrography

The traditional use of a single lens reflex camera (analogue or digital) requires the trinocular version of the BA210. The adaptation of the camera consists of a mechanical adapter combined with a photo eyepiece (2.5X or 4X) The necessary T2 adapter referring to the camera model is supplied by the camera manufacturer. This setup delivers high resolution images of small fields.

Digital Documentation

Digitalization of microscopic results is Motic's philosophy and the BA210 provides two methods. The combination of the BA210 trinocular microscope with the Moticam Series of digital cameras delivers crisp live images easy to be saved. All Motic cameras come equipped with software to convert the BA210 into an analysis and documentation station. Should you select a third-party camera, Motic provides a range of CCD-adapters covering all demands for field vs. resolution. Another digitalization option is the BA210 digital head. Replacing the conventional head with the Digital head transforms the BA210 into a teaching, training, and analysis station without the hassle of adapters and focus corrections. With a USB2.0 output to the computer, the system provides high resolution imaging in both real time and capture modes.

BA210E Trinocular

  • Trinocular head Siedentopf type, 30º inclined, 360º rotating (Light split 100:0/20:80)
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quadruple revolving nosepiece
  • CCIS® Plan achromatic objectives EC PL 4X, 10X, 40X S, 100X S-Oil
  • Coaxial coarse and fine focusing system with tension adjustment
  • Built-in low position coaxial rackless mechanical stage (Right hand control)
  • Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot
  • Quartz halogen illumination 6V/30W with intensity control
  • Power supply 100V-240V (CE)
  • 45mm blue filter, immersion oil (5ml), power cord, Allen hexagonal key, thumb screw, vinyl dust cover
  • Note: Photo and C-mount camera adapter not included
