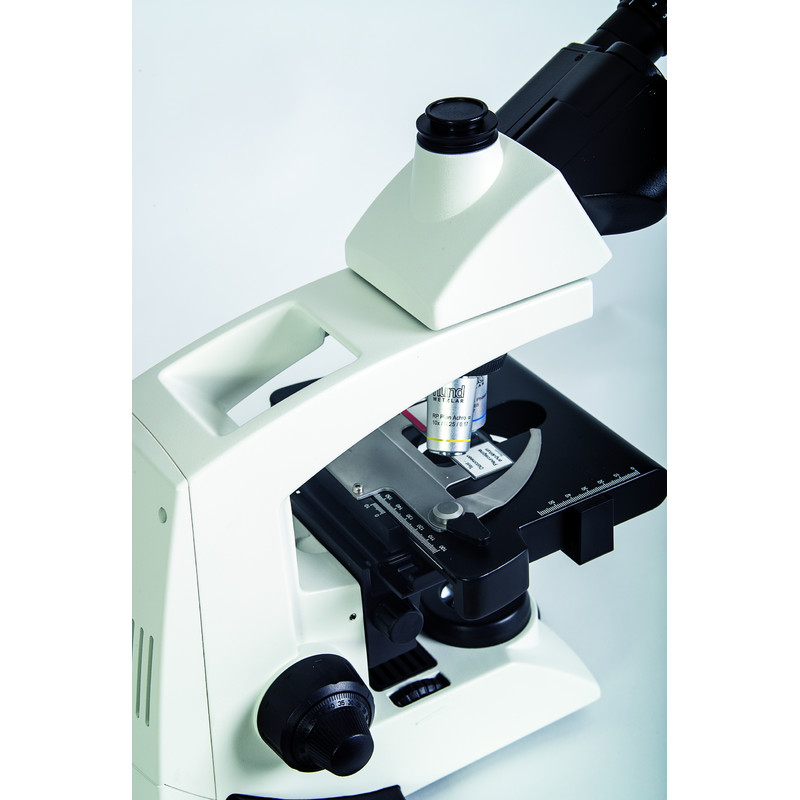

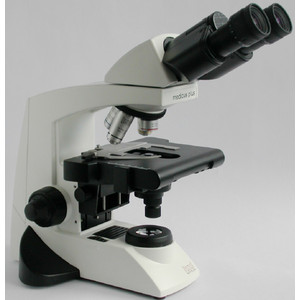

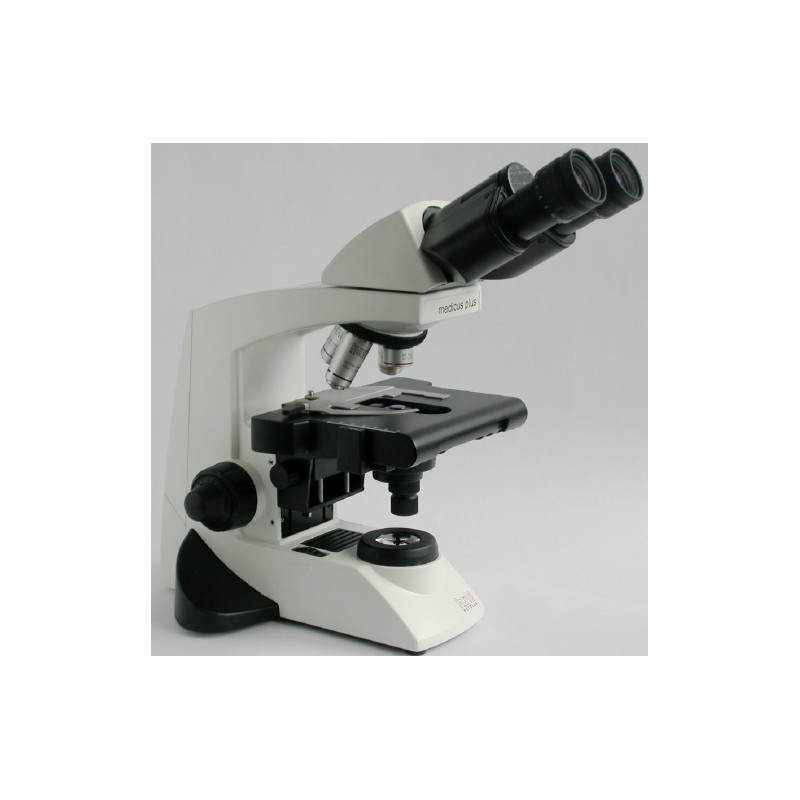

Microscope Hund Medicus plus, plan, trino, infinity, 40x - 1000x

N° d'article : 53119
Fabricant : Hund

1.920,00 $

TVA incluse
Microscope Hund Medicus plus, plan, trino, infinity, 40x - 1000x
Description du produit
Spécifications
Avis clients
Accessoires recommandées
Téléchargements

Description du produit :

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .

Laboratory microscopes Medicus

  • Solid cast tripod in classic gooseneck shape
  • Coaxially arranged coarse and fine focusing drive.
    - Height adjustment of the coarse adjustment knob total: 12.7 mm.
    - Height adjustment of the fine adjustment knob per division: 3 microns
  • Binocular Siedentopf -Tubus, 360° rotable .
    - Viewing angle 30 °
    - Tube factor 1x
    - Eye distance of 55 mm - 75 mm adjustable
    - Diopter compensation at each eyepiece.
  • 4-position nosepiece with ball bearing guide
  • Plan-achromatic lenses, infinity-corrected
  • Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
    - Sliding range 78 mm x 54 mm
    - Specimen holder with spring lever
  • Height adjustable Abbe condenser NA 1.25
  • Integrated 6 V / 20 W halogen lights, infinitely variable

Medicus plus trinocular

with plan-achromatic infinity objectives

Spezification:

  • Stand equipment with 20 W halogen lighting
  • Binocular Siedentopf tube (30° TF 1x)
  • Eyepiece WF 10x / 20 with eyeshades 2 pcs.
  • Lens plan 4x / 0.10
  • Lens plan 10x / 0.25
  • Lens plan 40x / 0.65 with spring slide protection
  • Lens plan 100x / 1.25 oil with sprung slide protection
  • Height adjustable Abbe condenser NA 1.25

Delivery Scope:

  • Power cord
  • wrench set
  • dust cover
  • spare bulb
  • spare fuse
  • operating instructions

Illustration ressemblante!
