Microscopie > Microscopes > Microscopes droits > Microscopes à fond clair > Euromex > EcoBlue > Microscope Euromex EC.1151, mono, 40x, 100x, 400x, 1000x
N° d'article : 49774

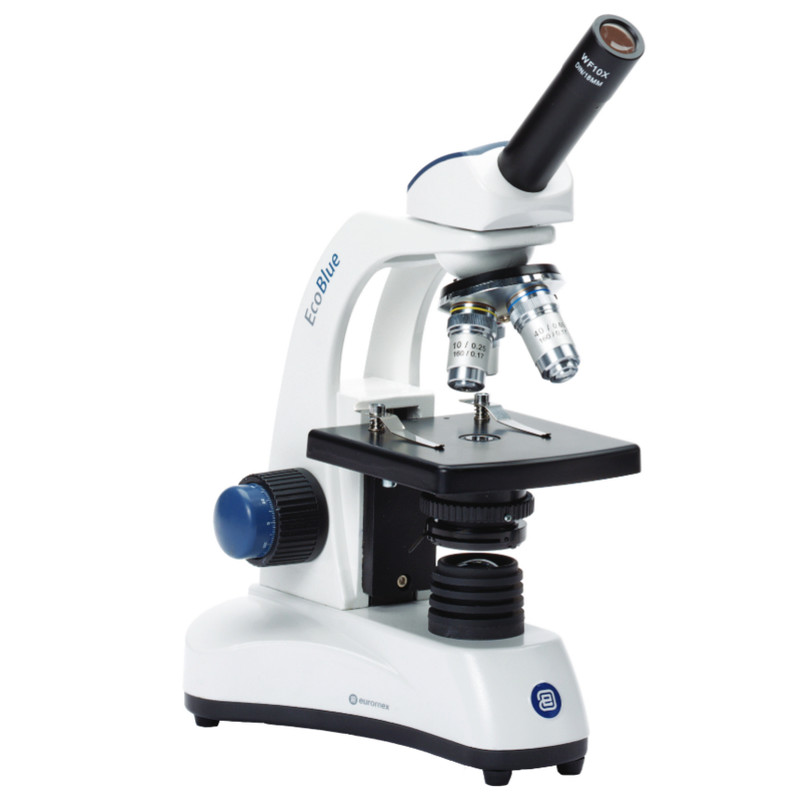

Microscope EC.1151, mono, 40x, 100x, 400x, 1000x

420,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à court terme
expédié sous 3-5 semaines + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

EcoBlue

Specifications:

Eyepiece: Secured DIN WF 10x/18 mm with pointer

Head: Monocular 45° inclined tube and binocular 30° inclined tubes. The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels

Nosepiece: Revolving quadruple forwarded nosepiece on ball-bearings. Polarization models equipped with swing-in analyzer

Objectives: All models are standard equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 objectives. The 20x/40, S60x/0.85 and S100x/1.25 objectives are also available. All optical parts are antifungus treated and are anti-reflection coated

Stage: Plain 123 x 119 mm stage with 2 object clamps except for the EC.1x5x models which are equipped with an integrated mechanical X-Y stage. Polarization model s with a 360° rotatable 129 mm round stage and 2 object clamps

Condenser: In height adjustable Abbe condenser

Focusing adjustment: axial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment

Illumination: 1 W intensity adjustable LED illumination with internal power supply. The models with an integrated mechanical stage are equipped with internal batteries. Polarization models come standard with halogen illumination, LED polarization versions are available on request

Software: ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms

EC.1151

Spezification:

Tube: monocular, 45° inclined

Objectives: achromatic 4x/0.13, 10x/0.25, 40x/0.65 spring, 100x/1.25 spring, antifungus treated, Antireflection

Stage: x-,y- stage

Condenser: Abbe

Illumination: LED 1W ajustable

Power supply: Internal batteries with batterie recharger

Spécifications

Optique


Echelle de l´image
40-1000
Condenseur
Condenseur Abbe NA1,25 avec diaphragme à iris et porte-filtre, réglable en hauteur
Type de lampe
LED
Type de l´objective
Achromatique
Oculaire
10x/18 (Grand champ)
Alimentation électrique
chargeur de batterie intégré 85-240 V, cordon d'alimentation amovible
Grossissement
40-1000 (10, 40, 100, 400)
Objectif 1
achrom. 4x/0.10
Objectif 2
achrom. 10x/0.25
Objetif 3
achrom. S40x/0.65
Objectif 4
achrom S100/1.25 Oil
Système optique
DIN (160mm)

Capacité


Commande de luminosité
oui
fond clair
oui

Système mécanique


Posture d'observation (°)
Visée oblique 45°
Platine porte-objet
Platine à chariot croisé (123 x 119 mm)
Mise au point
Mouvement rapide / fin (coaxial, avec division 0,002 mm)
Type de construction
Monoculaire

Particularités


Alimenté par accu
oui
Crochet de filtre
oui
Sac de protection contre la poussière
oui

Données générales


Poids (g)
2950
Hauteur (mm)
360
Longueur (mm)
214
Série
EcoBlue
Largeur (mm)
170

Convient pour


Débutant
oui

Secteurs d´application


Loisir
oui
Enseignements
oui

Domaine d´emploi


école
oui
