Trépieds photo > Trépieds > en bois > Berlebach > Report > Berlebach Pied de bois' rapport 'modèle 2032 / P
N° d'article : 8061

Pied de bois' rapport 'modèle 2032 / P

432,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à long terme
Cet article n'est plus disponible + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

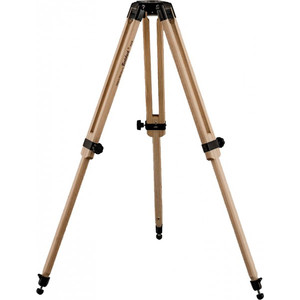

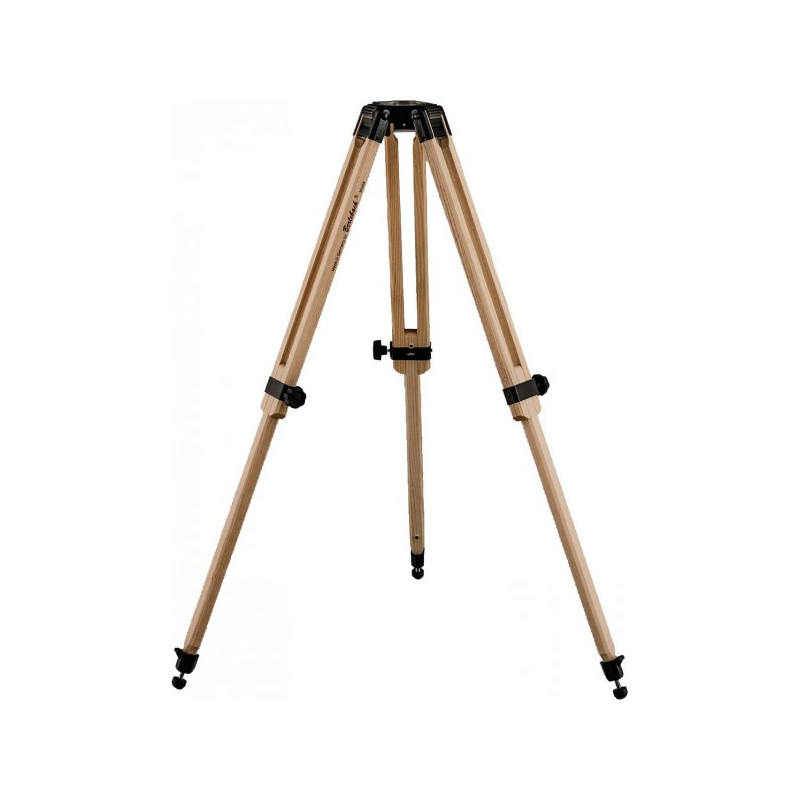

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.
Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

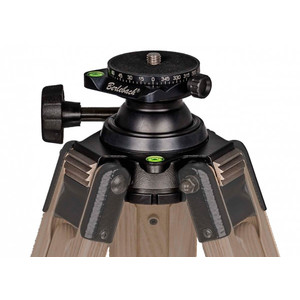

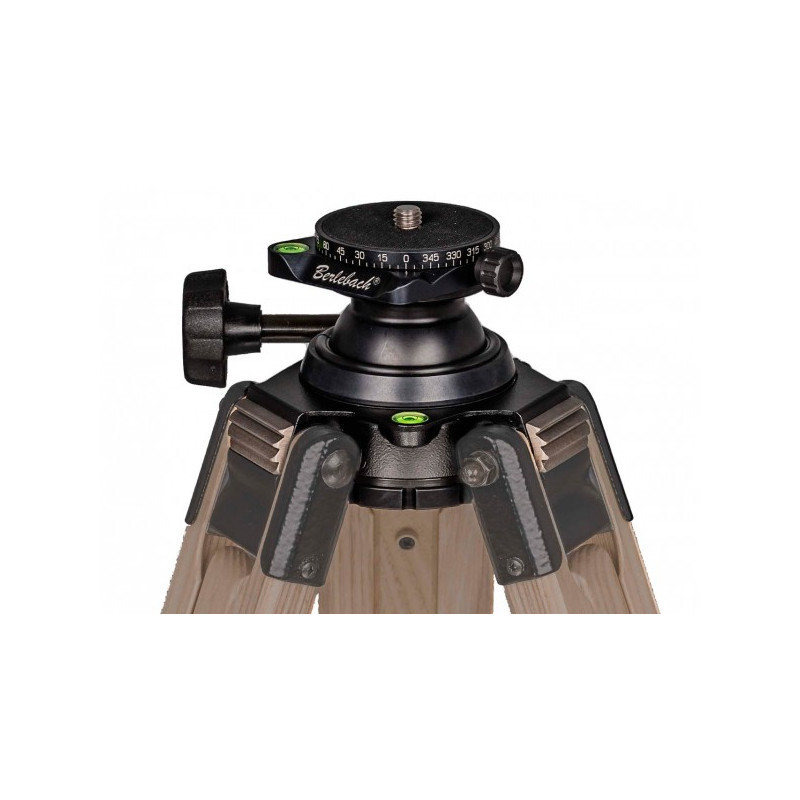

The tripod is equipped with the module insert 3/P, i.e. with a permanently installed levelling ball, a diameter of 55 mm ,spirit level and an integr. panorama plate. This enables a quick and precise adjustment of the tripod. The pivoting range is 30° in all directions.

The fastening screw is spring-loaded. Place your tilt head or your camera down and fasten it from below by means of the star knob screw.

This module insert is particularly suitable for heavy equipment, because the integrated ball partly allows the work without additional tilt head. The lens or the camera is fastened directly on the tripod. Since there is only one connection between the tripod and the camera, this is the most stable and the safest method.

Spécifications

Capacité


Type de construction
Trépied
Hauteur max. de trépied (cm)
121
Capacité de charge (kg)
15
Longueur de transport (cm)
77
Filetage sur tête de trépied
1/4
Type
Trépied photo et vidéo
Nombre de niveaus
1
Réglage hauteur des jambes de trépied
Verrouillage par rotation
Patin de trépied
Pied en caoutchouc (Matiére plastique)
Mensuration de tablette porte-accessoires (cm)
- (Sans tablette porte-accessoires)
Elément télescopique de trépied
1
Matériel
bois

Particularités


Opération d'une seule main
oui
Tête de trépied compris dans la fourniture
Tête panoramique
Sac de transport compris dans la fourniture
-
Table équatoriale intégrée
-
Echelle graduée panoramique
oui
Tablette porte-accessoires
-
Colonne centrale
-
Platine de raccord rapide
-

Données générales


Poids (kg)
2,88
Report
Couleur
Nature
Hauteur (cm)
121
