Newtonians

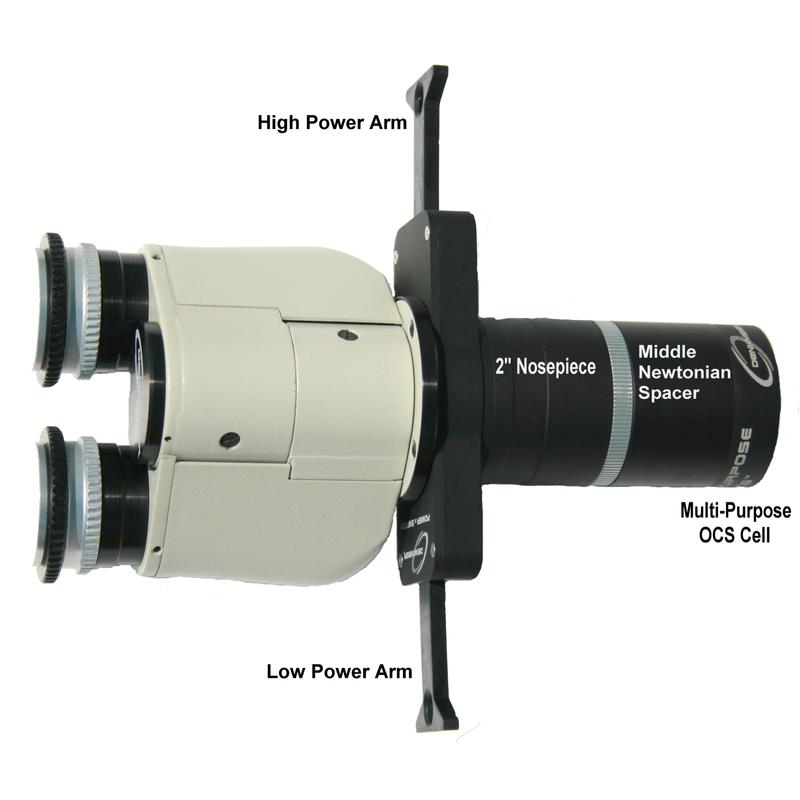

This illustration shows The Super System as "Newtonian-Ready". The large OCS Optic and 2" OCS Tubes slide Into you Newt 2" Focuser. The User Manual provides clear instructions allowing thee magnification factors: 1.3X/2.3Xand 3X with a single pair of eyepieces. We can supply Denk Eyepieces or Tele Vue Eyepieces!
Refractors

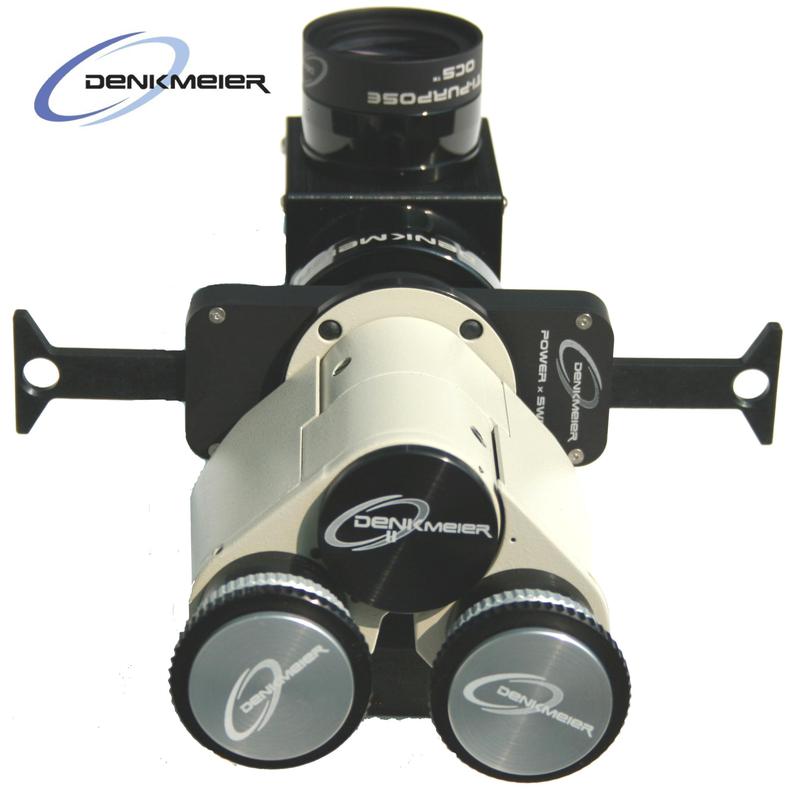

The Middle Newtonian Spacer has been removed, and the 2" OCS Cell has been threaded into the star diagonal on the telescope side. Quality 2" Star Diagonals have female 48mm threads on the telescope side tube. Denkmeier sells our own 2" Super Quality Star Diagonals that are optimized for The Super Systems. Slide into your Refractor Focuser and you are ready to go! You will have basically the same magnification factors using the Power x Switch: 1.3X/2.3X/3X. Also works on Mewlons, Classical Cassegrains, and any scope using a star diagonal.
SCTs

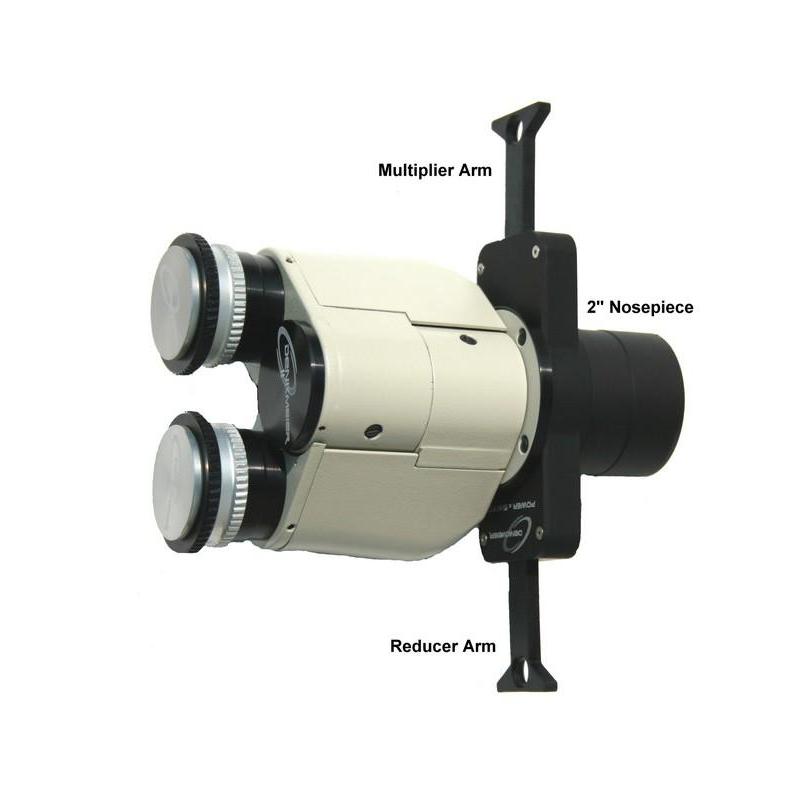

For SCTS like The Meade and Celestrons, The 2" OCS Cell is not used. The Middle Newtonian Spacer has been removed as it was in Refractor Use. The Binoviewer with it's Power x Switch and 2" Nosepiece is simply loaded into your 2" Star Diagonal. Now, true Reduction Results since the OCS Cell is not needed to acheive focus. This is because your SCT mirrors allow focus to occur. Power switch facors are now .66X/1.15X/2X. The OCS can be used on the binoviewer nosepiece with the high power arm of the Power x Switch for 3X. Simply thread it onto the Bino nosepiece and push in the high power arm.
