N° d'article : 8074

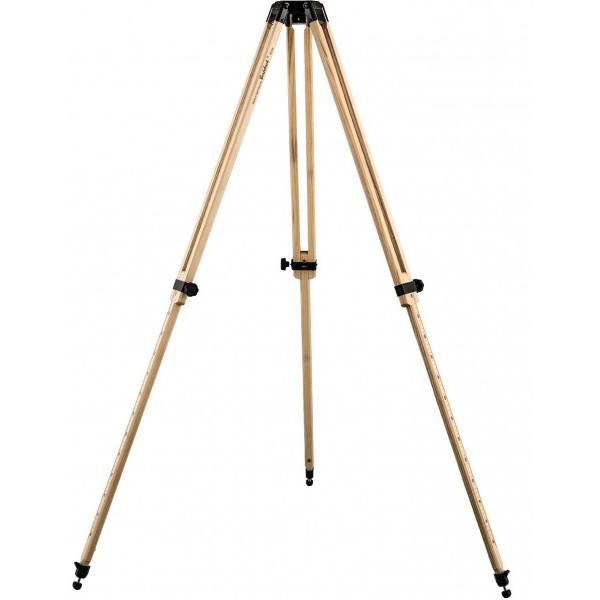

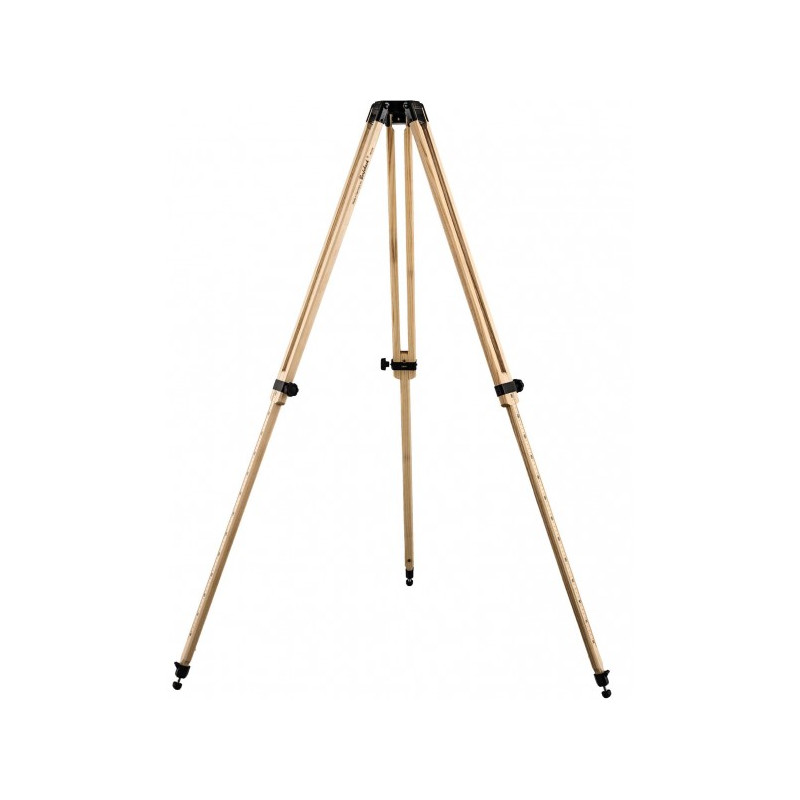

Trépied en bois modèle Report 342

446,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à court terme
expédié sous 3-7 jours + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

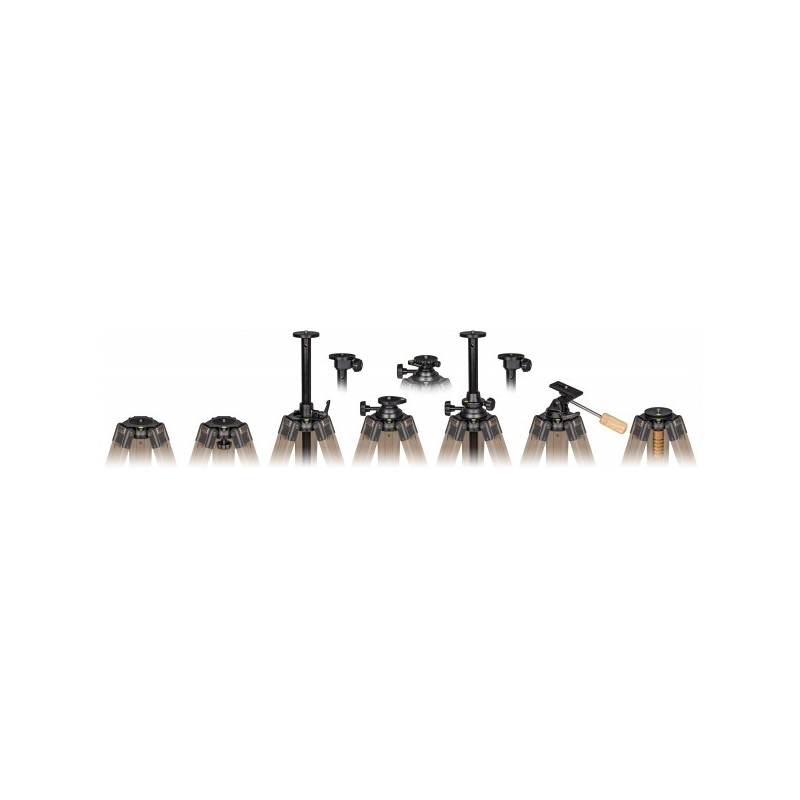

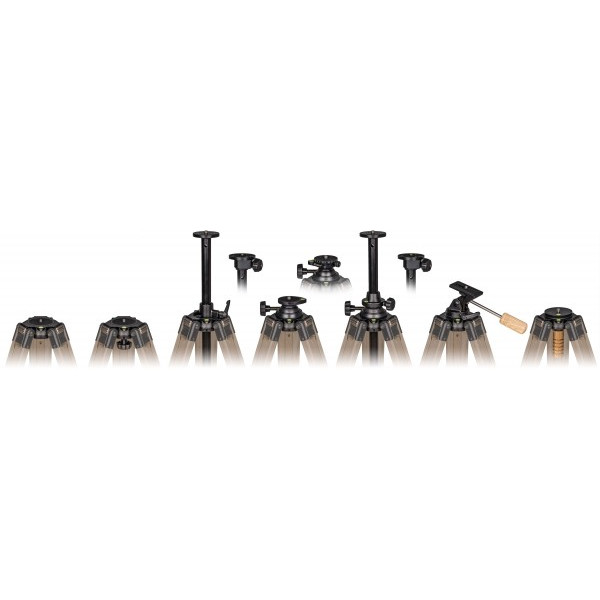

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.

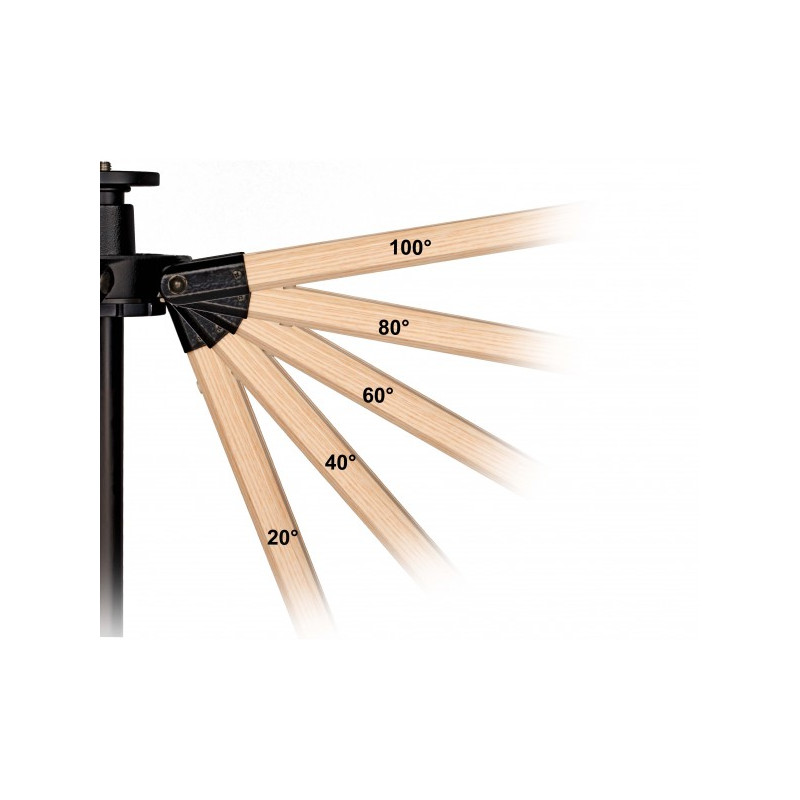

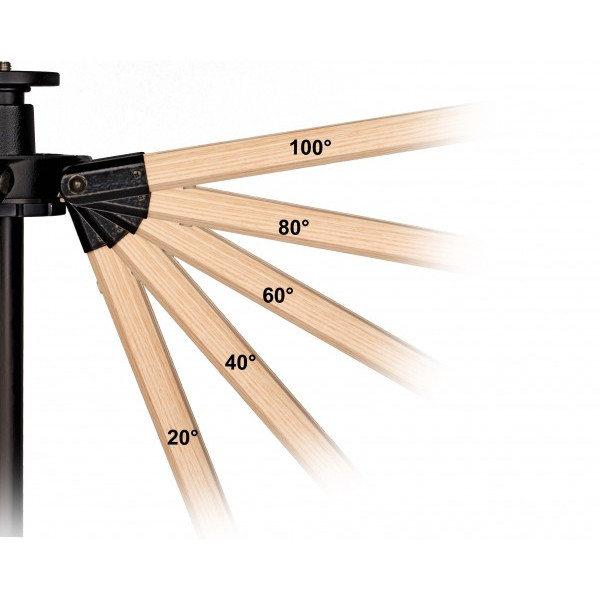

Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

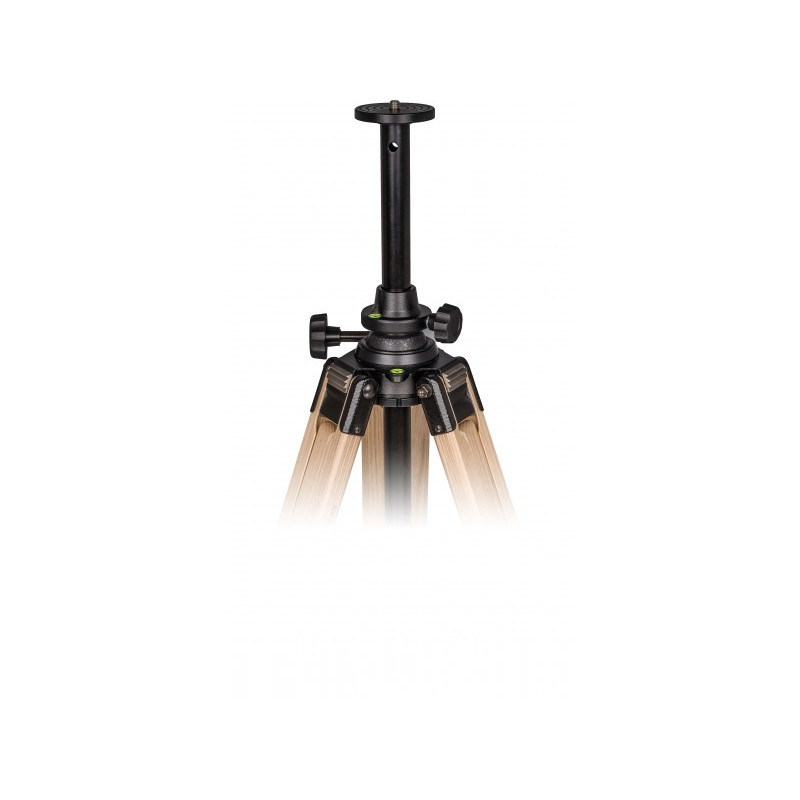

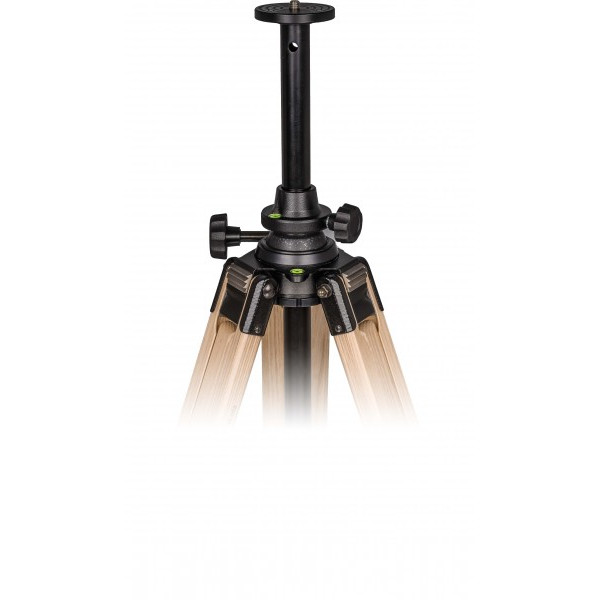

The tripod is equipped with the module insert 4, i.e. with a centre column which has a length of 50cm and a diameter of 25mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment.

When using an extra-short centre column (10cm), it is possible to work near ground level.

The specified maximum height applies if the centre column with a length of 50cm is extended.

Spécifications

Capacité


Type de construction
Trépied
Hauteur max. de trépied (cm)
196
Capacité de charge (kg)
10
Longueur de transport (cm)
92
Filetage sur tête de trépied
1/4
Type
Trépied photo et vidéo

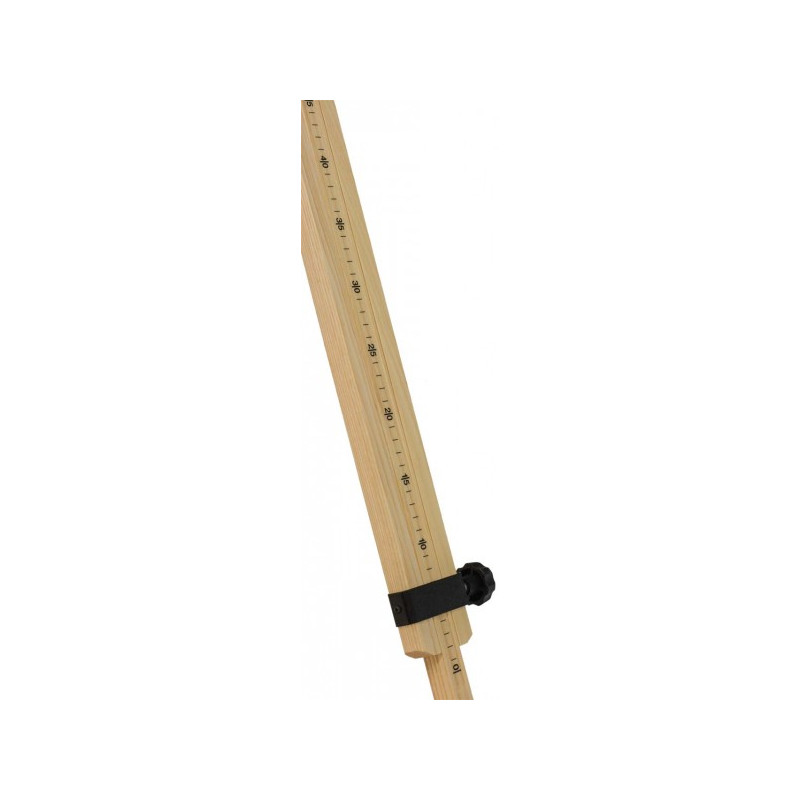

Réglage hauteur des jambes de trépied
Verrouillage par rotation
Patin de trépied
Pied en caoutchouc (Matiére plastique)
Mensuration de tablette porte-accessoires (cm)
- (Sans tablette porte-accessoires)
Nombre de niveaus
1
Elément télescopique de trépied
1
Matériel
bois

Particularités


Opération d'une seule main
oui
Tête de trépied compris dans la fourniture
non
Sac de transport compris dans la fourniture
-
Table équatoriale intégrée
-
Echelle graduée panoramique
-
Tablette porte-accessoires
-
Colonne centrale
oui
Platine de raccord rapide
-

Données générales


Poids (kg)
3,4
Report
Couleur
Nature
Longueur (cm)
-
Largeur (cm)
-
Hauteur (cm)
53 - 196

Accessoires recommandés

Trépieds photo > Accessoires pour trépieds (9)
Platine de montage

Platine de montage Berlebach Module 0 avec vis 1/4"

52,00 $*
